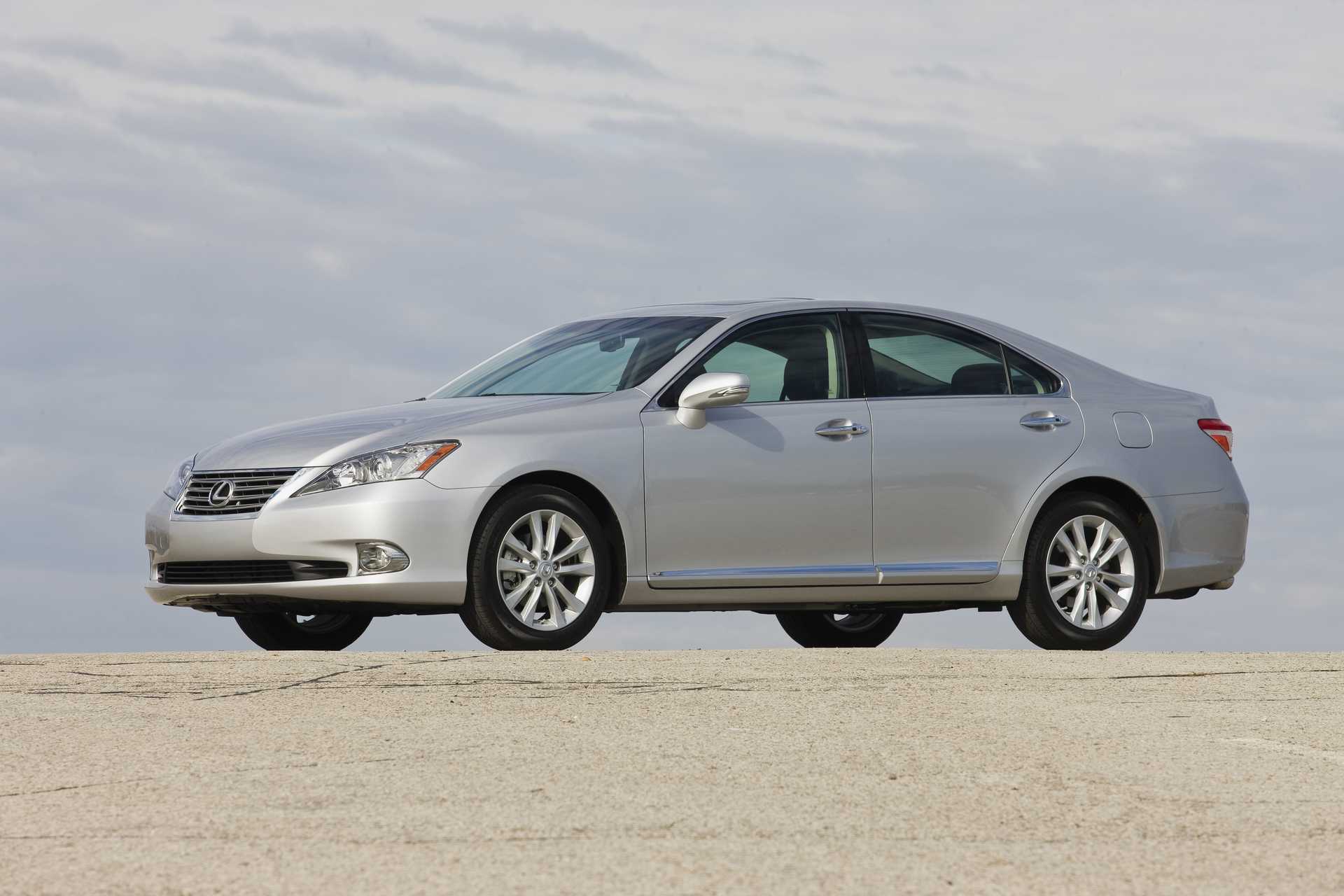

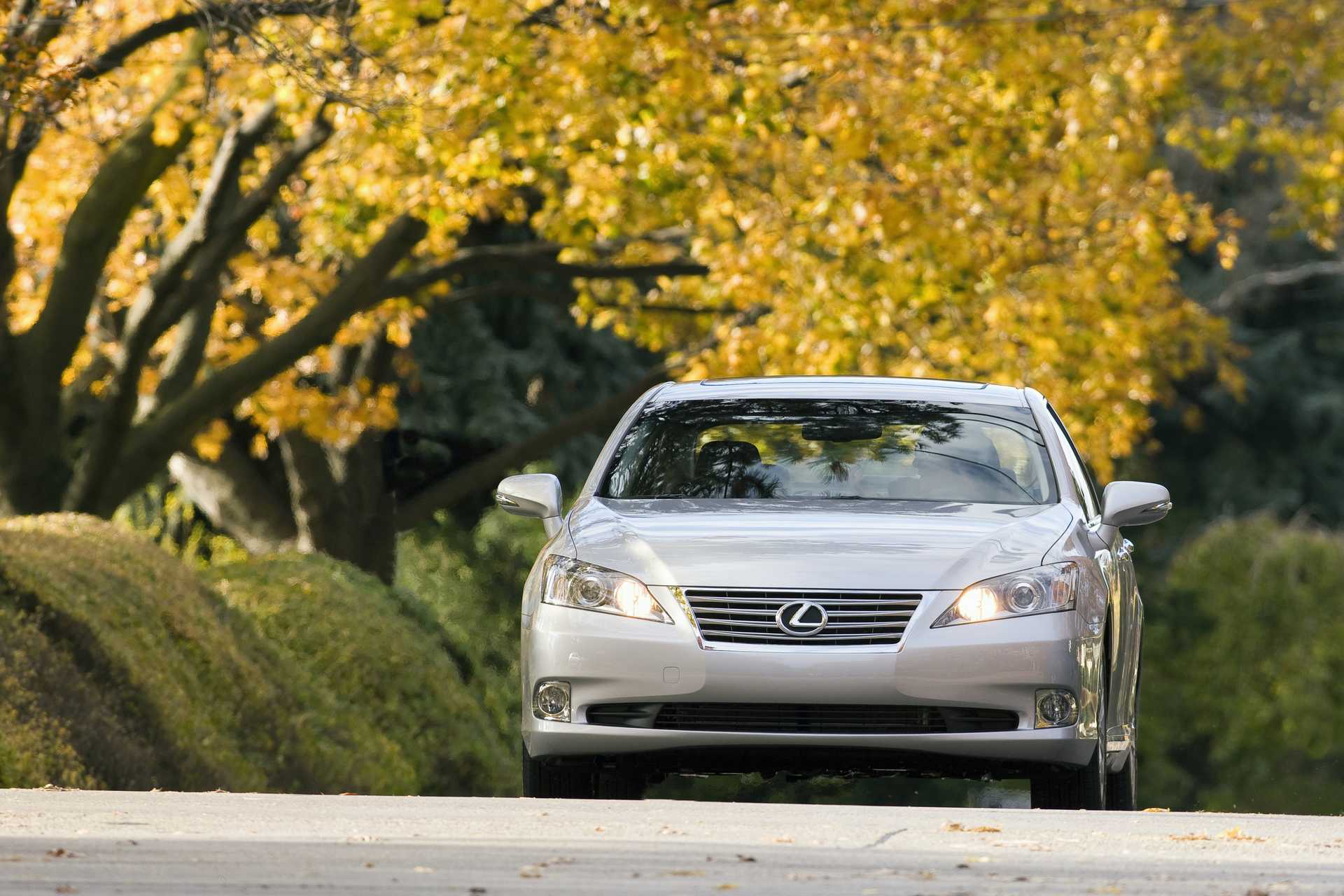

Lexus ES 2009–2012

5 generation [restyling] (GSV40 / ACV40)

At a glance

Engine3456 cm3 Gasoline

Power277 hp

GearboxAutomatic

OriginN/A

Trim

240 AT (165 hp)350 AT (277 hp)3.5 AT (277 PS)

Specifications

Engine

Max power (kW)207 kW

Engine power277 hp

Engine power281 PS

Capacity3456 cm3

Maximum torque346 N*m

Valves per cylinder4

Number of cylinders6

Stroke cycle83 mm

Cylinder bore94 mm

Max power at RPMfrom 6 200 RPM

Engine typeGasoline

Injection typeMulti-point fuel injection

Turnover of maximum torqueto 4 700 RPM

Cylinder layoutV-type

Bodywork

Ground clearance145 mm

Height1450 mm

Rear track1565 mm

Front track1575 mm

Curb weight1655 kg

Width1820 mm

Full weight2110 kg

Wheelbase2775 mm

Min trunk capacity416 l

Max trunk capacity416 l

Length4875 mm

Number of seater5

Body typeSedan

Gearbox and handling

Turning circle11 m

Number of gear6

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Mixed driving fuel consumption per 100 km10.2 l

City driving fuel consumption per 100 km14.7 l

Max speed230 km/h

Acceleration (0-100 km/h)7 s

Fuel tank capacity70 l

Highway driving fuel consumption per 100 km7.7 l

Fuel95

Emission standardsEURO IV

Cruising rangefrom 480 to 910 km

Suspension and brakes

Rear brakesDisc

Back suspensionDouble wishbone, Stabilizer bar

Front suspensionMcPherson Struts, Stabilizer bar

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
