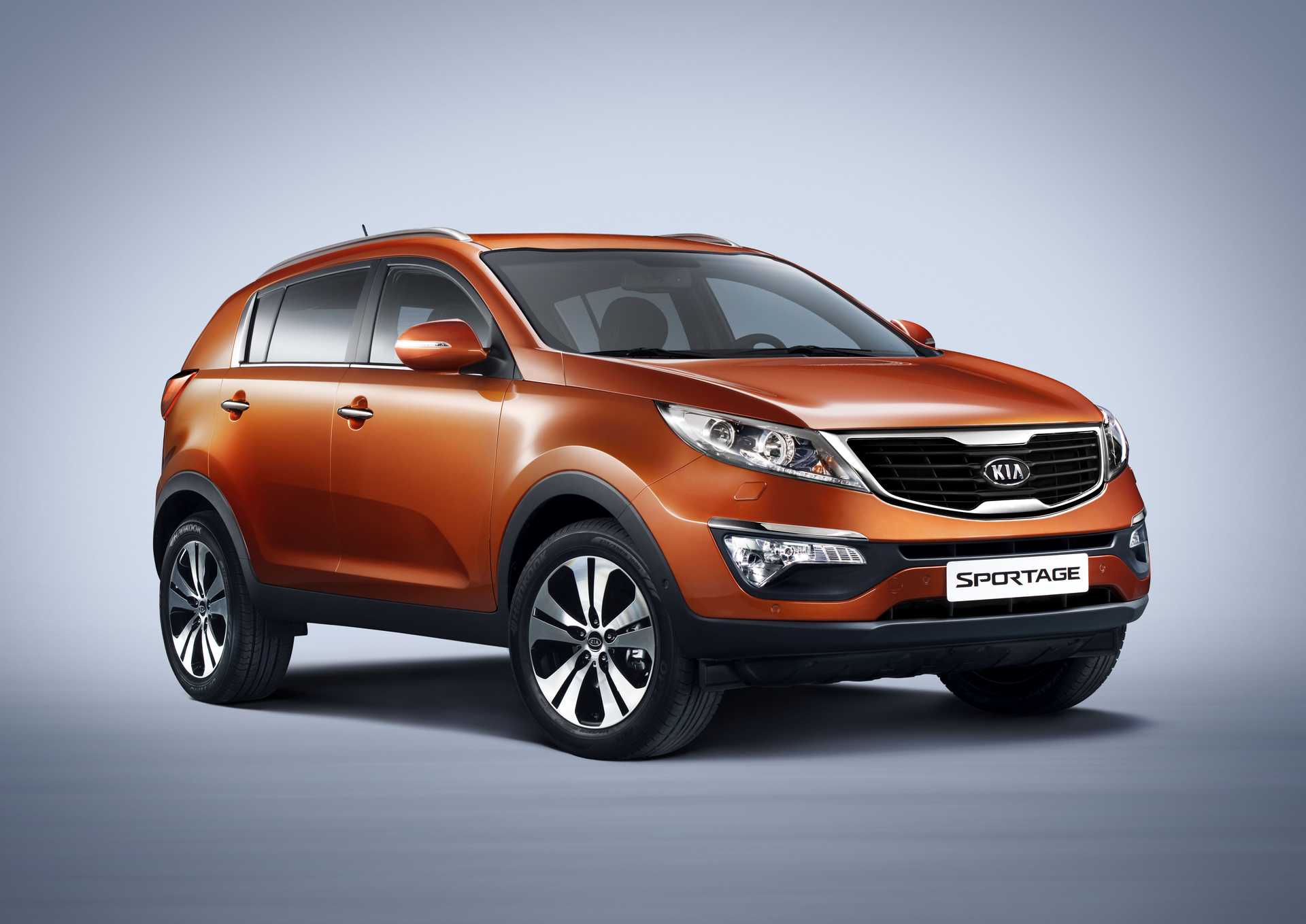

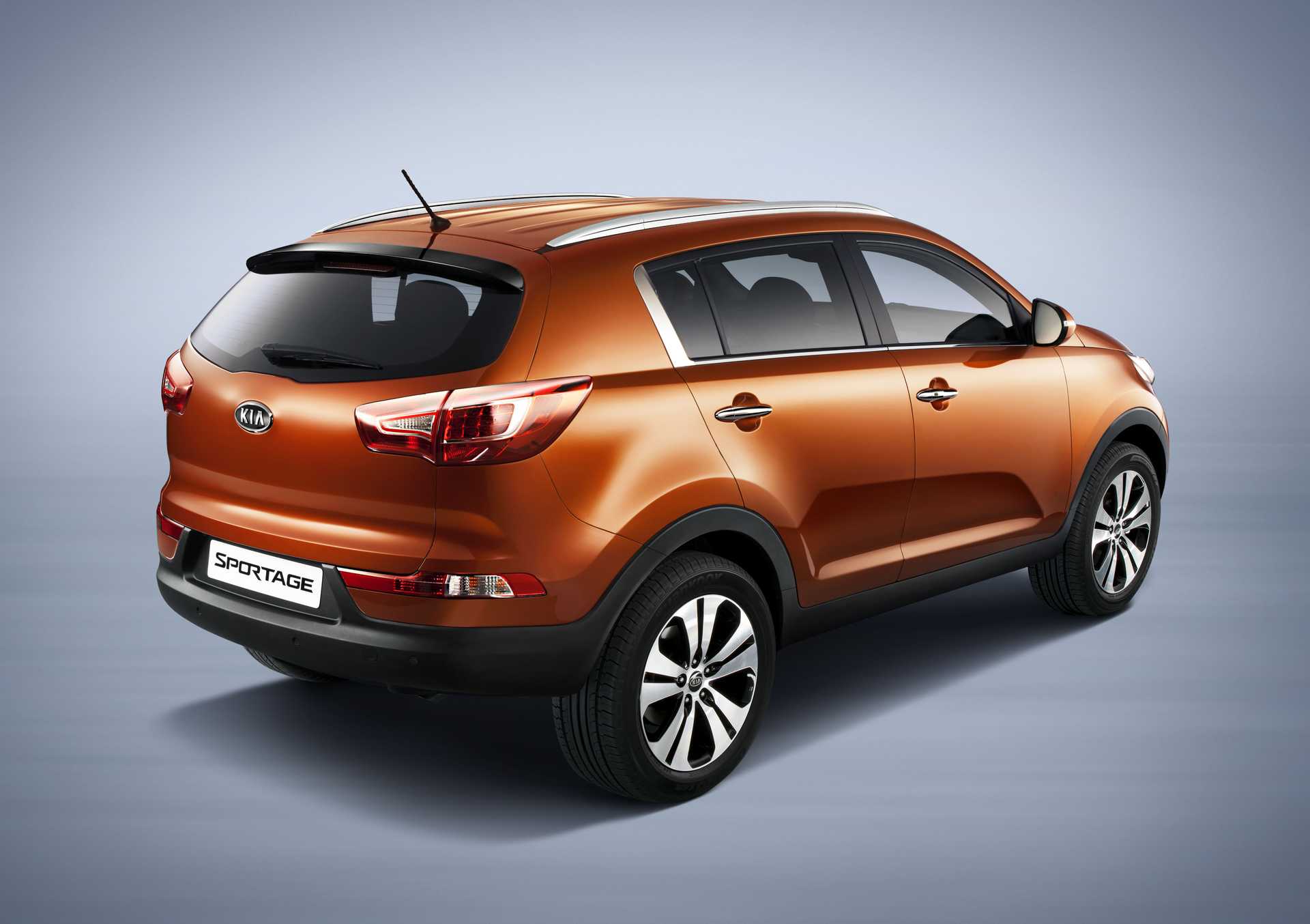

Kia Sportage 2010–2014

3 generation (SL)
General information
Number of doors5
Car classC
Steering wheel positionLeft
CountrySouth Korea
At a glance
Engine1591 cm3 Gasoline
Power135 hp
GearboxManual
OriginSouth Korea
Trim
1.6 MT (135 hp)1.7 TD MT (115 hp)2.0 AT (150 PS)2.0 AT (163 hp)2.0 AT (261 hp)2.0 AT 4WD (150 hp)2.0 AT 4WD (163 hp)2.0 AT 4WD (261 hp)2.0 D AT AWD (136 hp)2.0 MT (150 PS)2.0 MT (163 hp)2.0 MT 4WD (150 hp)2.0 MT 4WD (163 hp)2.0 TD AT (136 hp)2.0 TD AT (184 hp)2.0 TD AT 4WD (136 PS)2.0 TD AT 4WD (177 hp)2.0 TD AT 4WD (184 PS)2.0 TD MT (136 hp)2.0 TD MT (184 hp)2.0 TD MT 4WD (136 hp)2.0 TD MT 4WD (177 hp)2.0 TD MT 4WD (184 hp)2.4 AT (176 hp)2.4 AT 4WD (176 hp)2.4 MT (176 hp)

Specifications

Engine
Max power (kW)101 kW
Compression ratio11
Engine power135 hp
Engine power137 PS
Capacity1591 cm3
Maximum torque165 N*m
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4850 RPM
Cylinder bore77.0 mm
Stroke cycle85.4 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, transverse
Engine codeG4FD
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Max power at RPMto 6 300 RPM
Bodywork
Curb weight1305 kg
Max trunk capacity1353 l
Front track1614 mm
Front track width1614 mm
Rear track1615 mm
Back track width1615 mm
Height1635 mm
Ground clearance172 mm
Clearance172 mm
Full weight1830 kg
Width1855 mm
Wheel size215/70 R16, 225/60 R17
Wheelbase2640 mm
Length4440 mm
Number of seater5
Min trunk capacity564 l
Body typeCrossover
Pitch Circle DiameterDIA67.1 5x114.3 mm
Gearbox and handling
Turning circle10.6 m
Number of gear6
Drive wheelsFront wheel drive
Gearbox typeManual
Operating characteristics
Acceleration (0-100 km/h)10.7 s
Max speed178 km/h
Fuel tank capacity55 l
Highway driving fuel consumption per 100 km5.8 l
Mixed driving fuel consumption per 100 km6.4 l
City driving fuel consumption per 100 km7.5 l
Fuel95
Emission standardsEURO IV
Cruising rangefrom 770 to 1 000 km
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
