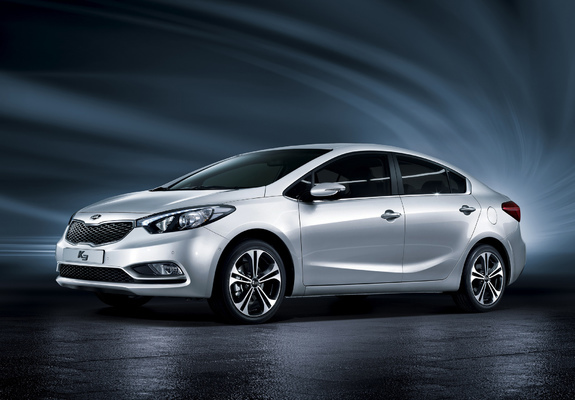

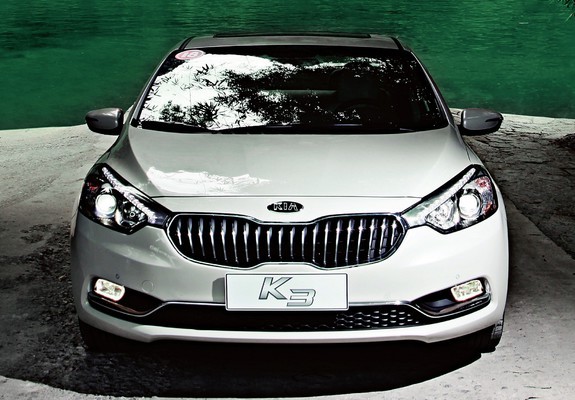

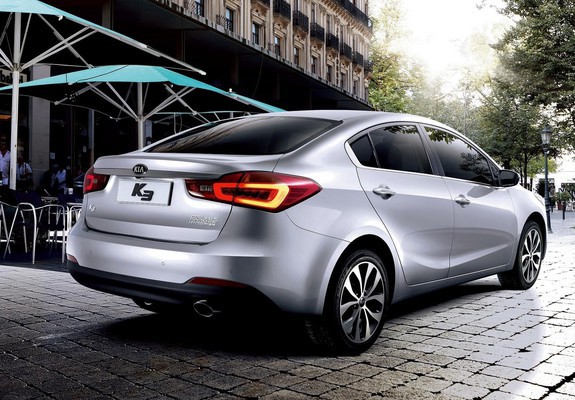

Kia K3 2012–2015

1 generation (YD)

General information

Number of doors4

Car classC

Steering wheel positionLeft

CountrySouth Korea

At a glance

Engine1582 cm3 Diesel

Power126 hp

GearboxAutomatic

Origin

South Korea

Trim

1.6 AT (128 PS)1.6 AT (140 PS)1.6 MT (140 PS)1.6 MT (204 PS)

Specifications

Engine

Engine power126 hp

Engine power128 PS

Capacity1582 cm3

Compression ratio17.3

Turnover of maximum torque2750 RPM

Maximum torque285 N*m

Number of cylinders4

Valves per cylinder4

Max power at RPM4000 RPM

Cylinder bore77.2 mm

Stroke cycle84.5 mm

Max power (kW)94 kW

Injection typeCommon rail (diesel)

Engine codeD4FB

Engine typeDiesel

Timing beltDOHC

Engine placementFront, transverse

Cylinder layoutinline

Boost typeTurbocharged

Bodywork

Curb weight1159 kg

Height1435 mm

Front track width1557 mm

Back track width1570 mm

Width1780 mm

Wheel size195/65 R15

Wheelbase2700 mm

Length4560 mm

Min trunk capacity470 l

Number of seater5

Disc size6.5x16 ET50, 6x15 ET46, 7x17 ET49

Pitch Circle DiameterDIA67.1 5x114.3 mm

Body typeSedan

Gearbox and handling

Number of gear6

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Fuel tank capacity50 l

Highway driving fuel consumption per 100 km5.6 l

Mixed driving fuel consumption per 100 km7.0 l

City driving fuel consumption per 100 km9.1 l

Fueldiesel

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionSemi-independent, torsion

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
