Ford Thunderbird 1961–1963

3 generation (91A / 93A)

General information

Number of doors2

Steering wheel positionLeft

Car classS

CountryUSA

At a glance

Engine6384 cm3 Gasoline

Power304 hp

GearboxAutomatic

Origin

United States

Trim

6.4 AT (304 hp)6.4 AT (345 PS)

Specifications

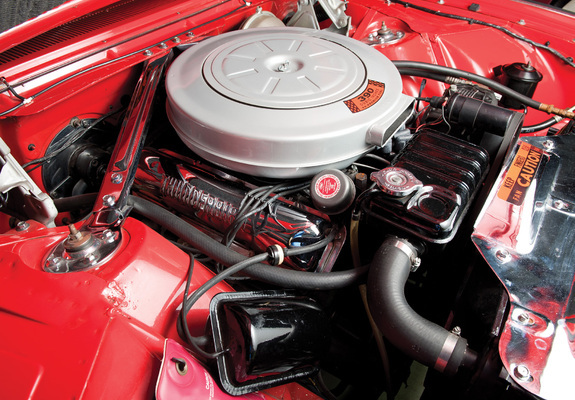

Engine

Cylinder bore102.9 mm

Valves per cylinder2

Max power (kW)224 kW

Turnover of maximum torque2800 RPM

Engine power304 hp

Engine power305 PS

Max power at RPM4600 RPM

Maximum torque578 N*m

Capacity6384 cm3

Number of cylinders8

Stroke cycle96 mm

Compression ratio9.6

Injection typecarburetor

Engine codeFE-series 390

Engine placementFront, longitudinal

Engine typeGasoline

Boost typenone

Timing beltOHV

Cylinder layoutV-type

Bodywork

Height1334 mm

Clearance137 mm

Back track width1520 mm

Front track width1550 mm

Width1928 mm

Curb weight1975 kg

Full weight2175 kg

Wheelbase2870 mm

Number of seater4

Length5207 mm

Body typeCoupe

Gearbox and handling

Number of gear3

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Highway driving fuel consumption per 100 km17.0 l

Max speed190 km/h

Mixed driving fuel consumption per 100 km20.0 l

City driving fuel consumption per 100 km23.0 l

Fuel80

Suspension and brakes

Back suspensionDependent, spring

Front brakesdrum

Rear brakesdrum

Front suspensionIndependent, spring
