Ford Ranger 2022–2026

7 generation (P703)
General information
Number of doors4
Car classJ
Steering wheel positionLeft/Right
CountryUSA
At a glance
Engine1996 cm3 Diesel
Power148 hp
GearboxManual
OriginUnited States
Series
Pickup Double cabin Double CabPickup Double cabin RaptorPickup One-and-a-half cabin Open CabPickup Single cabin Single Cab
Trim
2.0 AT (170 PS)2.0 AT (210 hp)2.0 AT 4WD (170 PS)2.0 AT 4WD (210 hp)2.0 D AT AWD (170 PS)2.0 D AT AWD (210 hp)2.0 MT (150 PS)2.0 MT (170 PS)2.0 MT 4WD (168 hp)2.3 AT (184 PS)2.3 AT (270 hp)2.3 AT (298 hp)2.3 AT 4WD (183 hp)2.3 AT 4WD (256 PS)2.3 AT 4WD (270 hp)2.3 AT 4WD (298 hp)2.3 MT 4WD (183 hp)2.3 MT 4WD (256 PS)2.7 AT (315 hp)2.7 AT 4WD (315 hp)3.0 AT 4WD (243 hp)3.0 AT 4WD (286 PS)3.0 AT 4WD (292 PS)3.0 AT 4WD (397 PS)

Specifications

Engine
Max power (kW)110 kW
Engine power148 hp
Engine power150 PS
Capacity1996 cm3
Turnover of maximum torque2750 RPM
Maximum torque350 N*m
Max power at RPM3500 RPM
Number of cylinders4
Valves per cylinder4
Injection typeCommon rail (diesel)
Engine typeDiesel
Timing beltDOHC
Engine placementFront, longitudinal
Cylinder layoutinline
Boost typeTurbocharged
Bodywork
Clearance180 mm
Height1884 mm
Width1918 mm

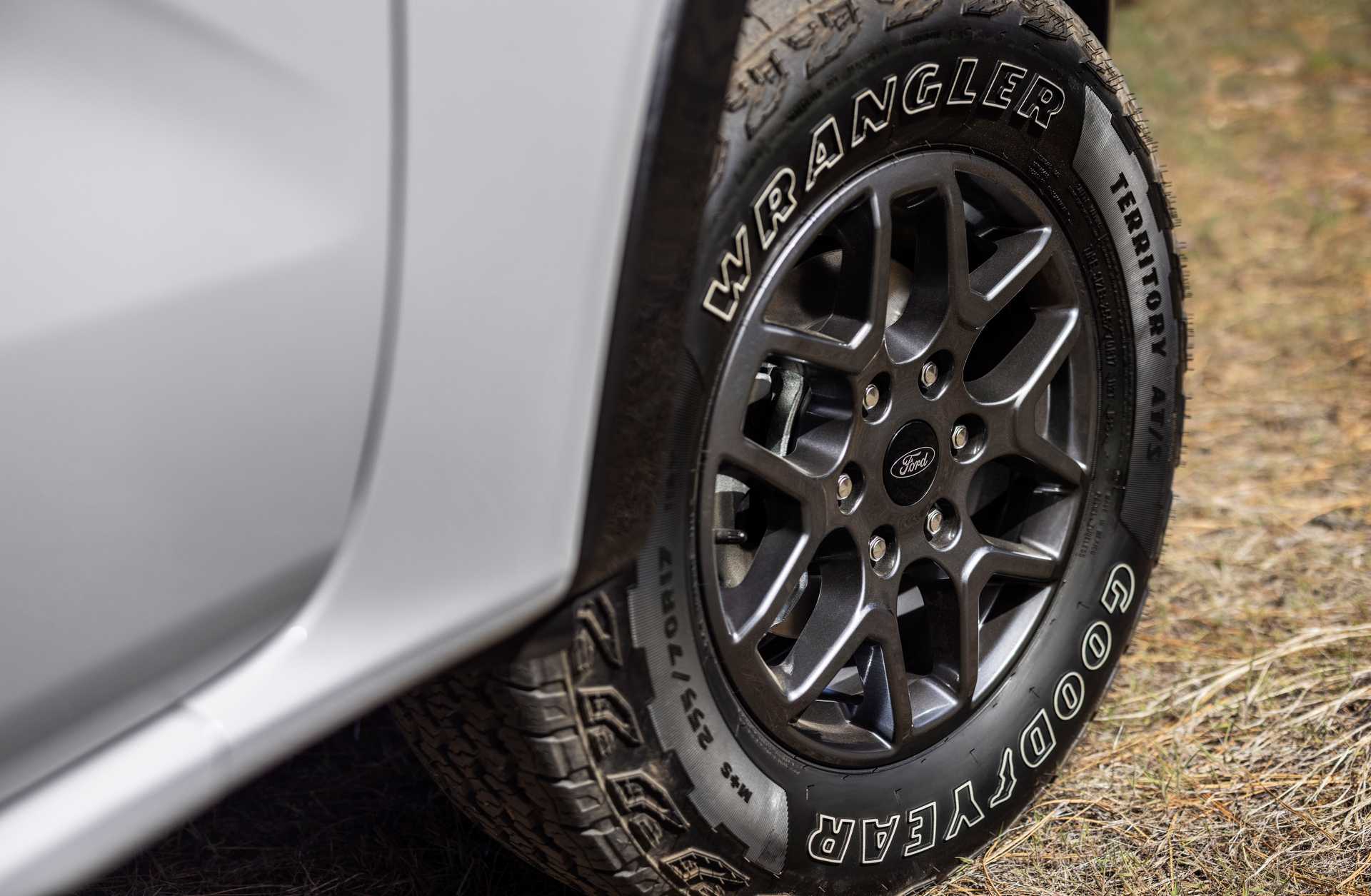

Wheel size215/70 R16
Wheelbase3270 mm
Number of seater5
Length5370 mm
Body typePickup
Gearbox and handling
Number of gear5
Gearbox typeManual
Drive wheelsRear wheel drive
Operating characteristics
Fuel tank capacity80 l
Fueldiesel
Emission standardsEuro 4
Suspension and brakes
Back suspensionDependent, spring
Rear brakesdrum
Front suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
