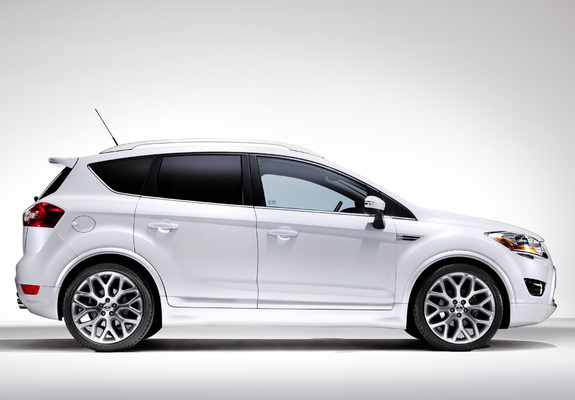

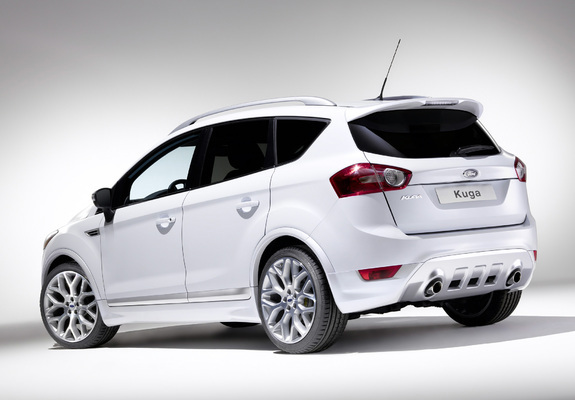

Ford Kuga 2008–2010

1 generation (C394)

General information

Number of doors5

Car classC

Steering wheel positionLeft

CountryUSA

At a glance

Engine1997 cm3 Diesel

Power138 hp

Gearboxrobot

Origin

United States

Trim

2.0 MT (164 hp)2.0 TDCi MT (136 hp)2.0 TDCi MT (140 hp)2.0 TDCi MT AWD (136 hp)2.0 TDCi MT AWD (140 PS)2.0 TDCi MT AWD (163 hp)2.0 TDCi PowerShift AWD (140 PS)2.0 TDCi PowerShift AWD (163 hp)2.5 AT AWD (200 PS)2.5 MT AWD (200 hp)

Specifications

Engine

Max power (kW)103 kW

Engine power138 hp

Engine power140 PS

Compression ratio16

Capacity1997 cm3

Turnover of maximum torque2750 RPM

Maximum torque320 N*m

Max power at RPM3750 RPM

Number of cylinders4

Valves per cylinder4

Cylinder bore85.0 mm

Stroke cycle88.0 mm

Injection typeCommon rail (diesel)

Engine typeDiesel

Timing beltDOHC

Engine placementFront, transverse

Cylinder layoutinline

Presence of intercoolerPresent

Boost typeTurbocharged

Engine modelUFDB

Engine codeUFDB

Bodywork

Max trunk capacity1405 l

Front track width1574 mm

Front track1580 mm

Back track width1584 mm

Rear track1590 mm

Curb weight1672 kg

Height1677 mm

Width1842 mm

Ground clearance188 mm

Clearance188 mm

Wheel size215/65 R16, 235/50 R18, 235/55 R17, 235/60 R16

Full weight2160 kg

Wheelbase2690 mm

Min trunk capacity410 l

Trailer load (with brakes)4260 kg

Length4443 mm

Payload488 kg

Number of seater5

Body typeCrossover

Pitch Circle DiameterDIA63.3 5x108 mm

Gearbox and handling

Turning circle11.6 m

Number of gear6

Drive wheelsAll wheel drive (AWD)

Gearbox typerobot

Operating characteristics

Acceleration (0-100 km/h)10.6 s

CO2 emissions179 g/km

Max speed183 km/h

Highway driving fuel consumption per 100 km5.8 l

Fuel tank capacity66 l

Mixed driving fuel consumption per 100 km6.8 l

City driving fuel consumption per 100 km8.5 l

Fueldiesel

Emission standardsEuro 4

Cruising rangefrom 780 to 1 140 km

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc
