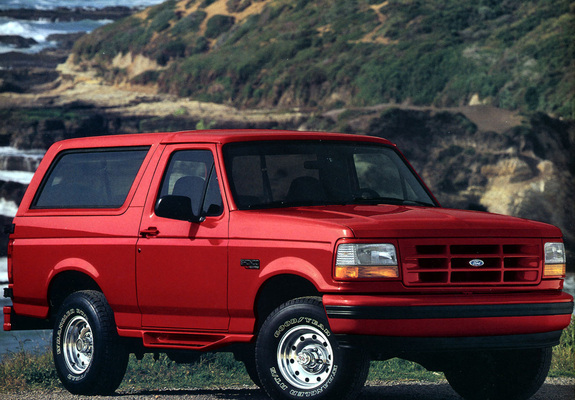

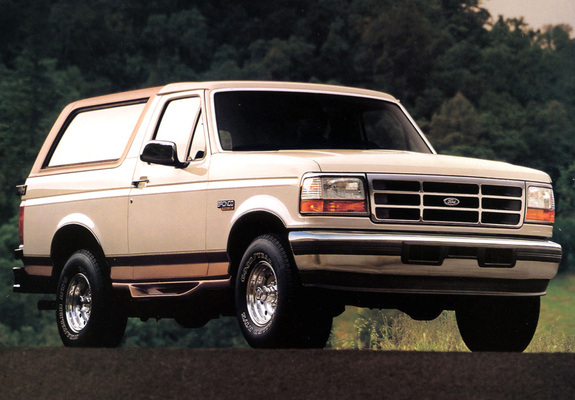

Ford Bronco 1992–1996

5 generation (U150)

General information

Number of doors3

Car classJ

Steering wheel positionLeft

CountryUSA

At a glance

Engine4942 cm3 Gasoline

Power182 hp

GearboxAutomatic

Origin

United States

Trim

4.9 AT (185 PS)4.9 MT (185 PS)5.0 AT (185 hp)5.0 AT (205 hp)5.0 AT 4WD (185 hp)5.0 MT (185 hp)5.0 MT (205 hp)5.0 MT 4WD (185 hp)5.8 AT (200 PS)5.8 AT 4WD (200 hp)5.8 MT (200 PS)

Specifications

Engine

Cylinder bore101.6 mm

Max power (kW)136 kW

Engine power182 hp

Engine power185 PS

Valves per cylinder2

Turnover of maximum torque2400 RPM

Maximum torque366 N*m

Max power at RPM3800 RPM

Capacity4942 cm3

Stroke cycle76.2 mm

Number of cylinders8

Compression ratio9

Injection typedistributed injection (multipoint)

Engine placementFront, longitudinal

Engine typeGasoline

Boost typenone

Timing beltOHV

Cylinder layoutV-type

Engine codeWindsor 302

Engine modelWindsor 302

Bodywork

Back track width1636 mm

Front track width1654 mm

Max trunk capacity1857 l

Height1892 mm

Clearance200 mm

Width2009 mm

Wheel size235/75 R15

Wheelbase2659 mm

Length4663 mm

Number of seater5

Min trunk capacity917 l

Body typeCrossover

Pitch Circle DiameterDIA86.7 5x139.7 mm

Gearbox and handling

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel tank capacity121 l

Highway driving fuel consumption per 100 km14.0 l

Mixed driving fuel consumption per 100 km15.6 l

Max speed160 km/h

Acceleration (0-100 km/h)17.0 s

City driving fuel consumption per 100 km17.0 l

Fuel80

Suspension and brakes

Back suspensionDependent, spring

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring
