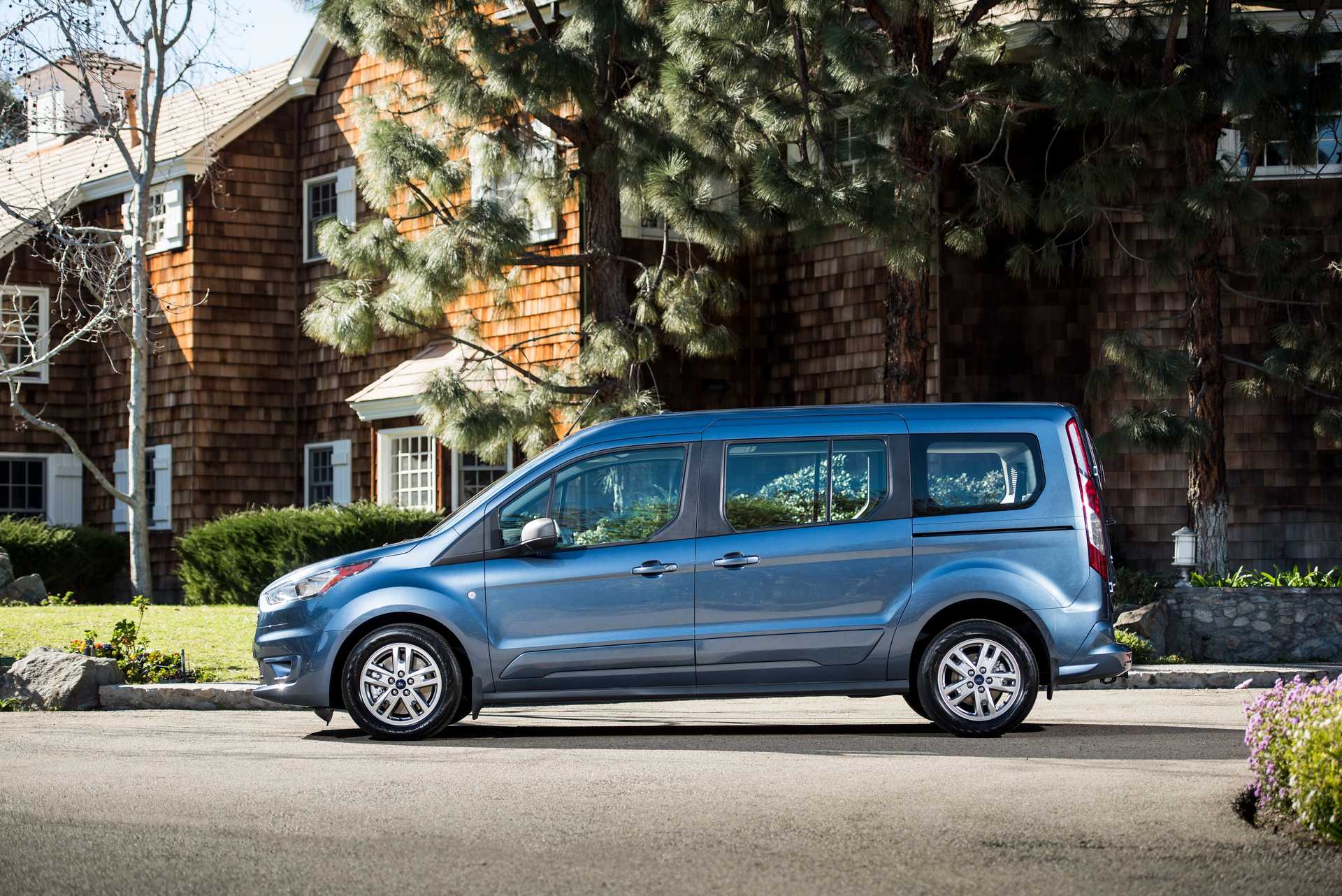

Ford Transit Connect 2018–2024

2 generation (V408) [restyling]
General information
Number of doors5
Steering wheel positionLeft
Car classM
CountryUSA
At a glance
Engine999 cm3 Gasoline
Power100 hp
GearboxManual
OriginUnited States
Series
Compactvan LWBVan LWBVan SWB
Trim
1.0 MT (100 hp)1.5 AT (100 hp)1.5 AT (120 PS)1.5 MT (100 hp)1.5 MT (120 PS)1.5 MT (75 PS)

Specifications

Engine
Compression ratio10
Engine power100 hp
Engine power101 PS
Maximum torque170 N*m
Number of cylinders3
Valves per cylinder4
Turnover of maximum torque4000 RPM
Max power at RPM6000 RPM
Cylinder bore71.9 mm
Max power (kW)74 kW
Stroke cycle82.0 mm
Capacity999 cm3
Injection typedirect injection (direct)
Timing beltDOHC
Engine modelEcoBoost
Engine placementFront, transverse
Engine typeGasoline
Cylinder layoutinline
Engine codeSFJA, SFJB
Boost typeTurbocharged
Bodywork
Curb weight1371 kg
Front track width1568 mm
Back track width1585 mm
Clearance159 mm
Width1835 mm
Height1861 mm
Wheel size205/60 R16
Full weight2085 kg
Number of seater3
Wheelbase3060 mm
Min trunk capacity3200 l
Length4818 mm
Disc size6.5x16 ET50
Pitch Circle DiameterDIA63.4 5x108 mm
Body typeVan
Gearbox and handling
Number of gear6
Drive wheelsFront wheel drive
Gearbox typeManual
Operating characteristics
CO2 emissions100 g/km
Highway driving fuel consumption per 100 km5.1 l
Mixed driving fuel consumption per 100 km5.6 l
City driving fuel consumption per 100 km6.4 l
Fuel95
Emission standardsEuro 5
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionSemi-dependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
