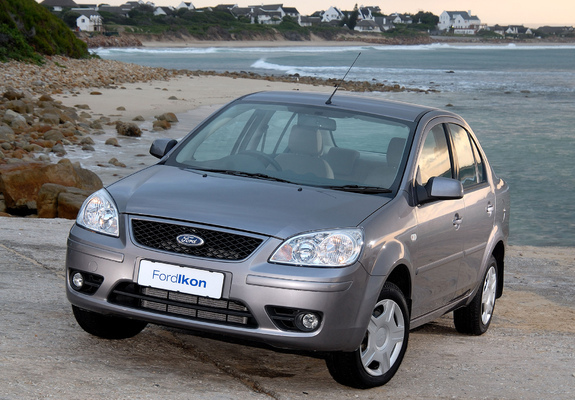

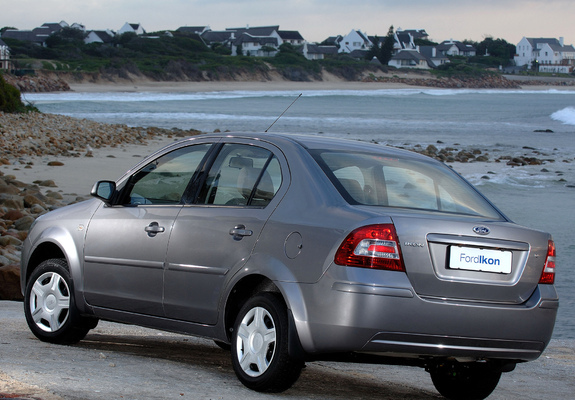

Ford Ikon 1999–2008

1 generation (C195)

General information

Number of doors4

Car classB

Steering wheel positionRight

CountryUSA

At a glance

Engine1299 cm3 Gasoline

Power68 hp

GearboxManual

Origin

United States

Trim

1.3 AT (68 hp)1.3 AT (70 hp)1.3 MT (68 hp)1.3 MT (70 hp)1.6 MT (92 PS)1.8 MT (58 hp)

Specifications

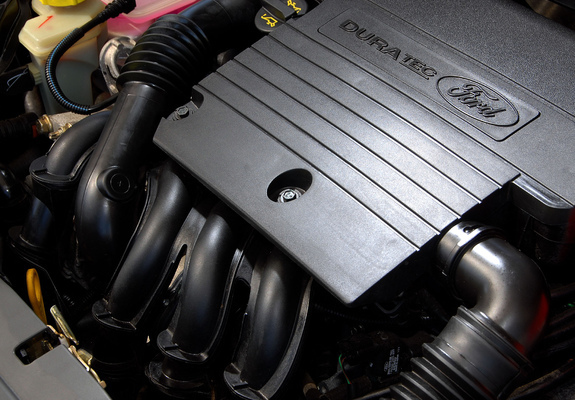

Engine

Compression ratio10.2

Capacity1299 cm3

Valves per cylinder2

Number of cylinders4

Max power (kW)51 kW

Max power at RPM51 RPM

Engine power68 hp

Engine power69 PS

Cylinder bore74 mm

Stroke cycle75.5 mm

Engine codeA9JA

Engine modelA9JA

Injection typedistributed injection (multipoint)

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Clearance140 mm

Height1450 mm

Width1634 mm

Wheelbase2486 mm

Length4140 mm

Number of seater5

Body typeSedan

Gearbox and handling

Number of gear5

Drive wheelsFront wheel drive

Gearbox typeManual

Operating characteristics

Highway driving fuel consumption per 100 km5.7 l

Mixed driving fuel consumption per 100 km6.8 l

City driving fuel consumption per 100 km8.6 l

Fuel92

Suspension and brakes

Front brakesDisc

Front suspensionIndependent, spring
