Ford Galaxie 1962–1964

2 generation (A) [restyling]
General information
Number of doors2
Car classF
Steering wheel positionLeft
CountryUSA
At a glance
Engine3653 cm3 Gasoline
Power135 hp
GearboxManual
OriginUnited States
Series
CabrioletCoupeSedan
Trim
3.7 AT (137 PS)3.7 AT (140 PS)3.7 MT (137 PS)3.7 MT (140 PS)4.3 AT (166 PS)4.3 MT (166 PS)4.7 AT (198 hp)4.7 MT (198 hp)4.8 AT (172 hp)4.8 MT (172 hp)5.8 AT (220 hp)5.8 AT (254 PS)5.8 MT (220 hp)5.8 MT (254 PS)6.4 AT (304 hp)6.4 MT (304 hp)6.4 MT (380 hp)6.4 MT (407 PS)6.6 AT (390 hp)6.6 AT (411 PS)6.6 MT (390 hp)6.6 MT (411 PS)7.0 MT (416 PS)7.0 MT (431 PS)

Specifications

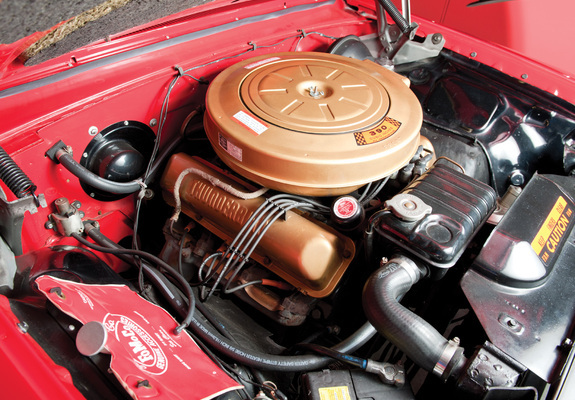

Engine
Max power (kW)101 kW
Engine power135 hp
Engine power137 PS
Valves per cylinder2
Turnover of maximum torque2000 RPM
Maximum torque271 N*m
Capacity3653 cm3
Max power at RPM4000 RPM
Number of cylinders6
Compression ratio8.4
Stroke cycle91.44 mm
Cylinder bore92.08 mm
Injection typecarburetor
Engine placementFront, longitudinal
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Timing beltOHV
Engine codeSix 223
Engine modelSix 223
Bodywork
Height1392 mm
Clearance140 mm
Back track width1524 mm
Front track width1549 mm
Curb weight1680 kg
Width2012 mm
Wheelbase3023 mm
Number of seater5
Length5316 mm
Min trunk capacity793 l
Body typeCoupe
Gearbox and handling
Number of gear4
Gearbox typeManual
Drive wheelsRear wheel drive
Operating characteristics
Highway driving fuel consumption per 100 km11.6 l
Acceleration (0-100 km/h)14.2 s
Mixed driving fuel consumption per 100 km15.8 l
City driving fuel consumption per 100 km19.1 l
Fuel tank capacity76 l
Fuel76
Suspension and brakes
Front suspensionDependent, spring
Back suspensionDependent, spring
Front brakesdrum
Rear brakesdrum

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
