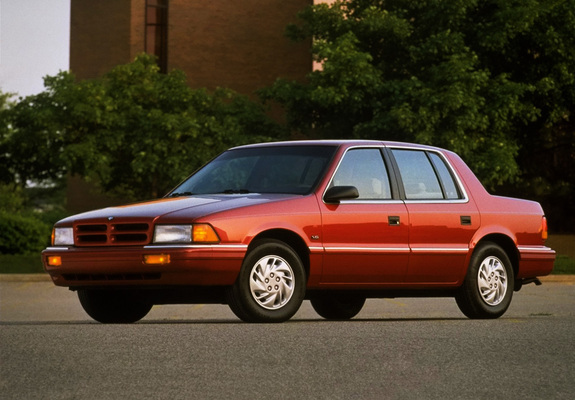

Dodge Spirit 1989–1992

1 generation (AA)

General information

Number of doors4

Car classD

Steering wheel positionLeft

CountryUSA

At a glance

Engine2501 cm3 Gasoline

Power101 hp

GearboxAutomatic

Origin

United States

Trim

2.5 AT (102 PS)2.5 MT (102 PS)3.0 AT (143 PS)

Specifications

Engine

Engine power101 hp

Engine power102 PS

Stroke cycle104 mm

Maximum torque183 N*m

Valves per cylinder2

Capacity2501 cm3

Turnover of maximum torque2800 RPM

Number of cylinders4

Max power at RPM4800 RPM

Max power (kW)75 kW

Cylinder bore87.5 mm

Compression ratio9

Injection typedistributed injection (multipoint)

Engine codeEDM

Engine modelEDM

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltOHC

Bodywork

Ground clearance120 mm

Clearance120 mm

Curb weight1245 kg

Height1358 mm

Rear track1453 mm

Back track width1453 mm

Front track1463 mm

Front track width1463 mm

Width1731 mm

Wheel size185/70 R14

Wheelbase2629 mm

Min trunk capacity410 l

Length4602 mm

Number of seater5

Max trunk capacity555 l

Pitch Circle DiameterDIA57.1 5x100 mm

Body typeSedan

Gearbox and handling

Number of gear3

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Mixed driving fuel consumption per 100 km10.2 l

Acceleration (0-100 km/h)13.8 s

City driving fuel consumption per 100 km14.0 l

Max speed172 km/h

Fuel tank capacity61 l

Highway driving fuel consumption per 100 km8.0 l

Fuel92

Cruising rangefrom 410 to 710 km

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
