Dodge WC series 1941–1942

3 generation (G-505 / T215)
General information
Number of doors3
Car classJ
CountryUSA
At a glance
Engine3567 cm3 Gasoline
Power78 hp
GearboxManual
OriginUnited States
Series
SUV opened WC-4SUV opened WC-6
Trim
3.6 MT 4WD (78 hp)3.6 MT AWD (78 hp)

Specifications

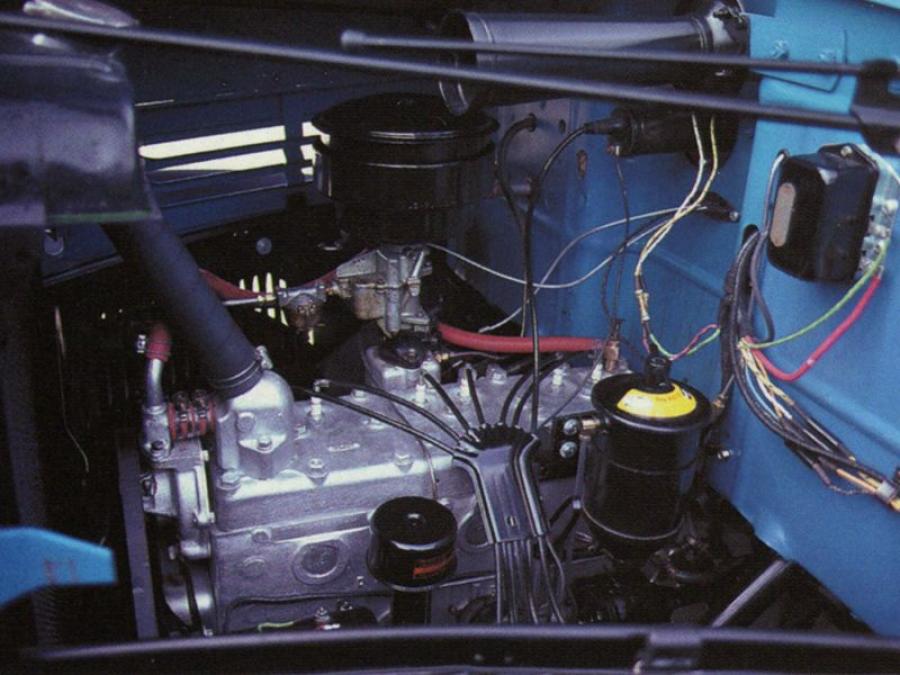

Engine
Stroke cycle111.1 mm
Valves per cylinder2
Maximum torque222 N*m
Capacity3567 cm3
Max power (kW)57 kW
Number of cylinders6
Compression ratio6.5
Engine power77 PS
Engine power78 hp
Cylinder bore82.6 mm
Injection typecarburetor
Engine placementFront, longitudinal
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Width1885 mm
Height2230 mm
Clearance273 mm
Wheelbase3000 mm
Length4850 mm
Number of seater5
Body typeCrossover
Gearbox and handling
Number of gear4
Drive wheelsfull
Gearbox typeManual
Operating characteristics
Fuel76
Suspension and brakes
Front suspensionDependent, spring
Back suspensionDependent, spring
Front brakesdrum
Rear brakesdrum
