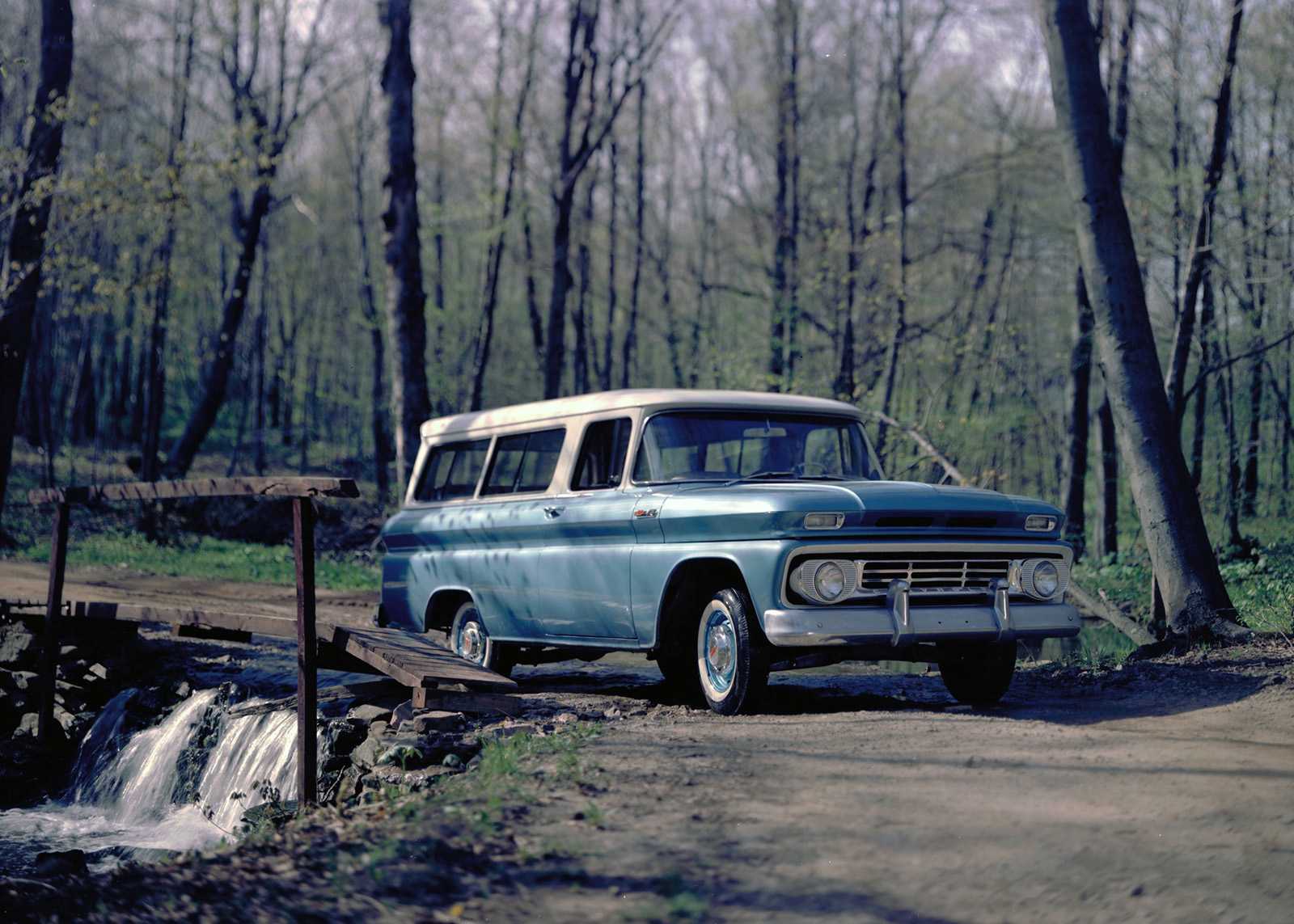

Chevrolet Suburban 1960–1966

5 generation (C/K Series)
At a glance
Engine3859 cm3 Gasoline
Power123 hp
GearboxAutomatic
OriginN/A
Trim
3.9 3MT Synchro-mesh (123 hp)3.9 3MT Synchro-mesh (135 hp)3.9 3MT Synchro-mesh (140 hp)3.9 3MT Synchro-mesh (145 hp)3.9 3MT Synchro-mesh Heavy Duty (123 hp)3.9 3MT Synchro-mesh Heavy Duty (135 hp)3.9 3MT Synchro-mesh Heavy Duty (140 hp)3.9 3MT Synchro-mesh Heavy Duty (145 hp)3.9 4MT Synchro-mesh (123 hp)3.9 4MT Synchro-mesh (135 hp)3.9 4MT Synchro-mesh (140 hp)3.9 4MT Synchro-mesh (145 hp)3.9 4MT Synchro-mesh 4WD (140 hp)3.9 4MT Synchro-mesh 4WD (145 hp)3.9 AT Hydra-Matic (123 hp)3.9 AT Hydra-Matic (135 hp)3.9 AT Hydra-Matic (140 hp)3.9 AT Hydra-Matic (145 hp)3.9 Economy 3MT Synchro-mesh (110 hp)3.9 Economy 3MT Synchro-mesh Heavy Duty (110 hp)3.9 Economy 4MT Synchro-mesh (110 hp)3.9 Economy 4MT Synchro-mesh 4WD (110 hp)3.9 Economy AT Hydra Matic (110 hp)4.3 3MT Synchro-mesh (155 hp)4.3 3MT Synchro-mesh Heavy Duty (155 hp)4.3 4MT Synchro-mesh (155 hp)4.3 AT Hydra Matic (155 hp)4.6 3MT Synchro-mesh (160 hp)4.6 3MT Synchro-mesh Heavy Duty (160 hp)4.6 4MT Synchro-mesh (160 hp)4.6 AT Hydra Matic (160 hp)

Specifications

Engine
Stroke cycle100.3 mm
Engine power123 hp
Engine power125 PS
Valves per cylinder2
Maximum torque281 N*m
Capacity3859 cm3
Number of cylinders6
Cylinder bore90.5 mm
Max power (kW)92 kW
Injection typecarburetor
Engine typeGasoline
Cylinder layoutInline
Turnover of maximum torqueto 2 000 RPM
Max power at RPMto 3 800 RPM
Bodywork
Front track1538 mm
Rear track1550 mm
Curb weight1771 kg
Width1786 mm
Height1956 mm
Wheelbase2896 mm
Length5026 mm
Payload544 kg
Number of seater8
Body typeCrossover
Gearbox and handling
Turning circle12.5 m
Number of gear4
Gearbox typeAutomatic
Drive wheelsRear wheel drive
Operating characteristics
Fuel tank capacity64.35 l
FuelGasoline
Suspension and brakes
Back suspensionDependent, Axle, Spring
Front brakesdrum
Rear brakesdrum
Front suspensionSpring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
