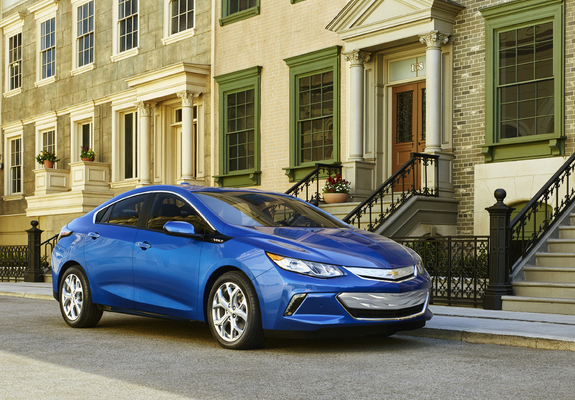

Chevrolet Volt 2016–2019
2 generation (D2XX / Voltec)General information
Number of doors5
Car classC
Steering wheel positionLeft
CountryUSA
At a glance
Engine1490 cm3 Hybrid
Power101 hp
GearboxContinuously variable transmission (CVT)
Origin
United States
United StatesSpecifications
Engine
Engine power101 hp
Engine power102 PS
Compression ratio12.5
Capacity1490 cm3
Number of cylinders4
Valves per cylinder4
Max power at RPM5600 RPM
Cylinder bore74.0 mm
Max power (kW)75 kW
Stroke cycle86.6 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, transverse
Engine typeHybrid
Cylinder layoutinline
Boost typenone
Bodywork
Height1432 mm
Clearance150 mm
Front track width1540 mm
Back track width1570 mm
Curb weight1607 kg
Width1809 mm
Wheel size215/50 R17
Wheelbase2694 mm
Min trunk capacity301 l
Length4481 mm
Number of seater5
Disc size7x17 ET41
Pitch Circle DiameterDIA56.6 5x105 mm
Body typeHatchback
Gearbox and handling
Gearbox typeContinuously variable transmission (CVT)
Drive wheelsFront wheel drive
Operating characteristics
Max speed158 km/h
Fuel tank capacity34 l
Mixed driving fuel consumption per 100 km5.6 l
Acceleration (0-100 km/h)8.4 s
Fuel95
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionSemi-dependent, spring
Front brakesventilated disc
Accumulator battery
Charging time13.0 h
Battery capacity18.4 KW⋅h
Battery temperature-25-50 C
Electric power reserve85 km
Battery typeLithium-ion (Li-ion)
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
No grades recorded for this trim yet.
