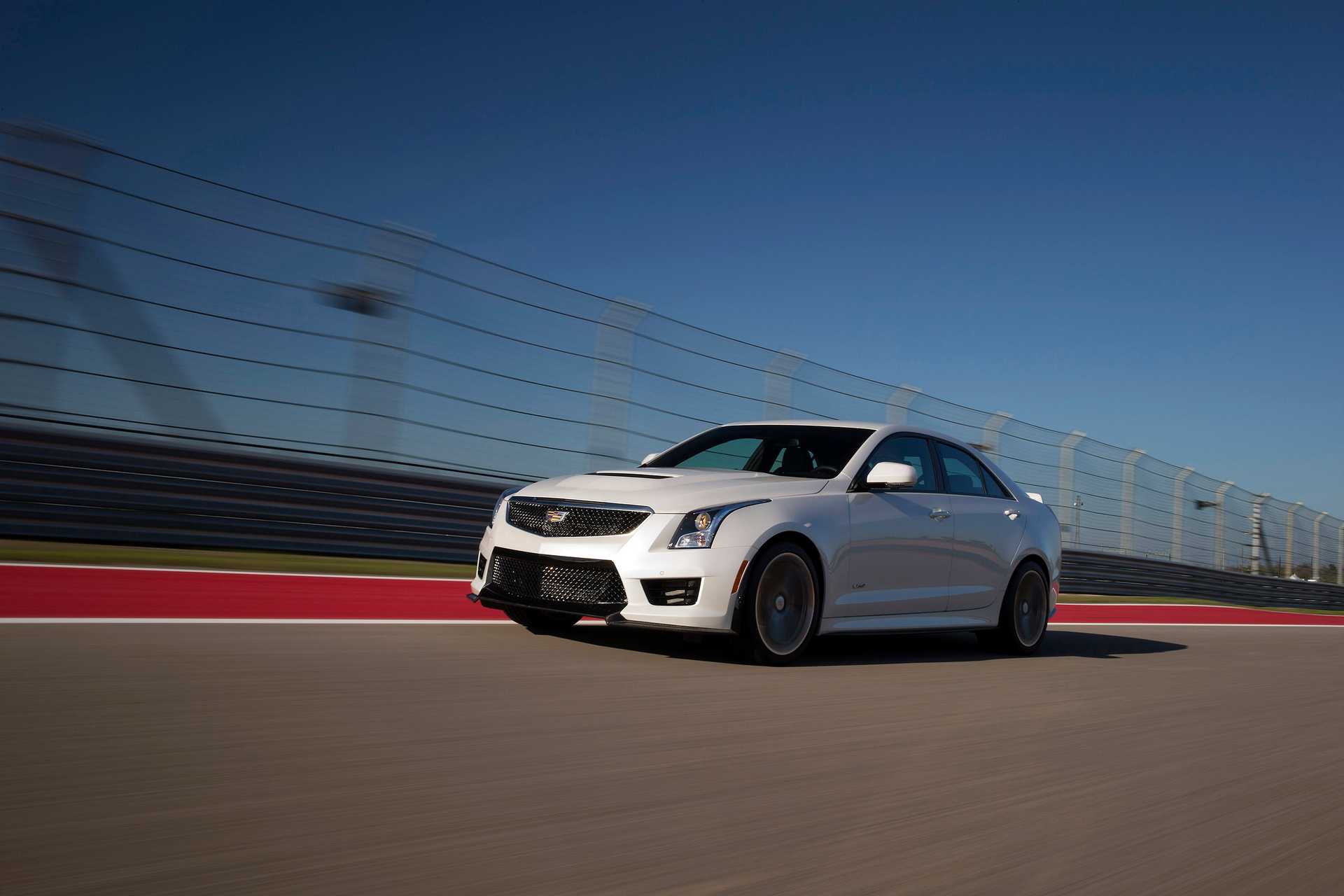

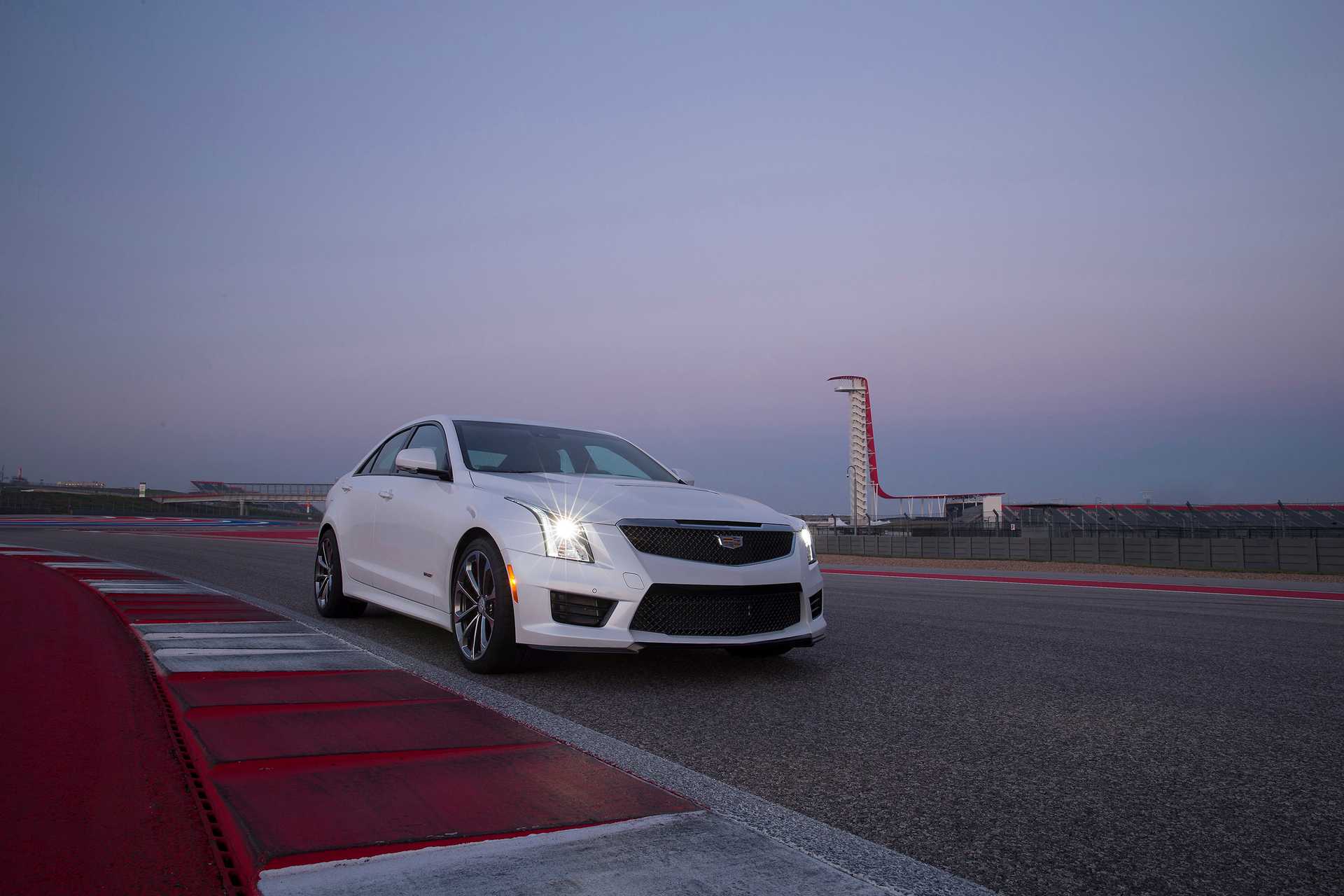

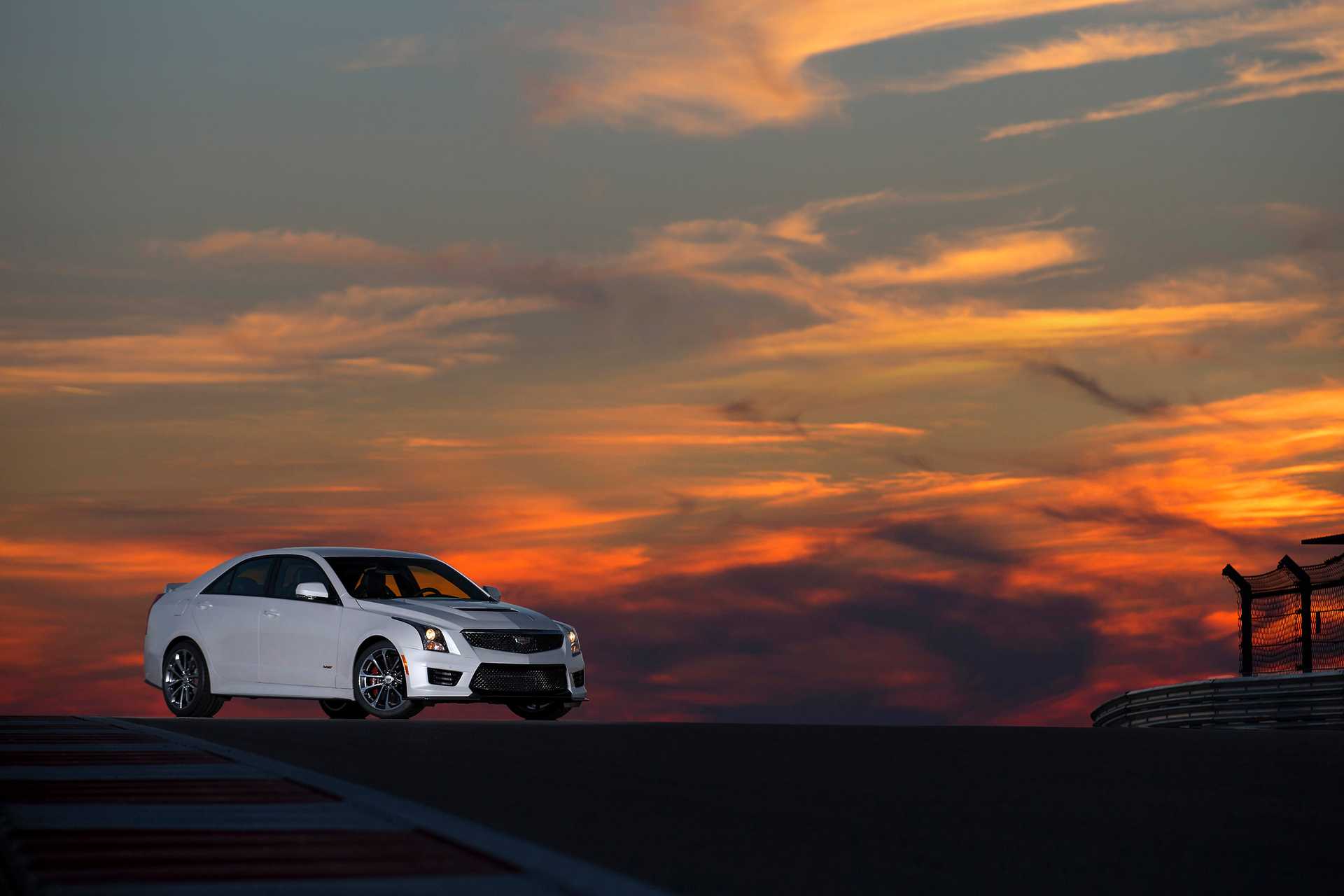

Cadillac ATS-V 2016–2019
1 generation (GM Alpha)General information
Number of doors4
Car classD
Steering wheel positionLeft
CountryUSA
At a glance
Engine3564 cm3 Gasoline
Power464 hp
GearboxAutomatic
Origin
United States
United StatesSpecifications
Engine
Compression ratio10.2
Max power (kW)346 kW
Turnover of maximum torque3500 RPM
Capacity3564 cm3
Valves per cylinder4
Engine power464 hp
Engine power470 PS
Max power at RPM5750 RPM
Number of cylinders6
Maximum torque601 N*m
Stroke cycle85.6 mm
Cylinder bore94.0 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, longitudinal
Engine typeGasoline
Boost typeTurbocharged
Cylinder layoutV-type
Bodywork
Height1415 mm
Back track width1536 mm
Front track width1538 mm
Clearance155 mm
Curb weight1729 kg
Width1811 mm
Wheel size255/35/R18, 275/35/R18
Wheelbase2775 mm
Min trunk capacity295 l
Length4673 mm
Number of seater5
Body typeSedan
Gearbox and handling
Number of gear8
Gearbox typeAutomatic
Drive wheelsRear wheel drive
Operating characteristics
Mixed driving fuel consumption per 100 km11.8 l
City driving fuel consumption per 100 km13.8 l
Max speed304 km/h
Acceleration (0-100 km/h)4.1 s
Fuel tank capacity60 l
Highway driving fuel consumption per 100 km9.4 l
Fuel95
Suspension and brakes
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc
Rear brakesventilated disc
