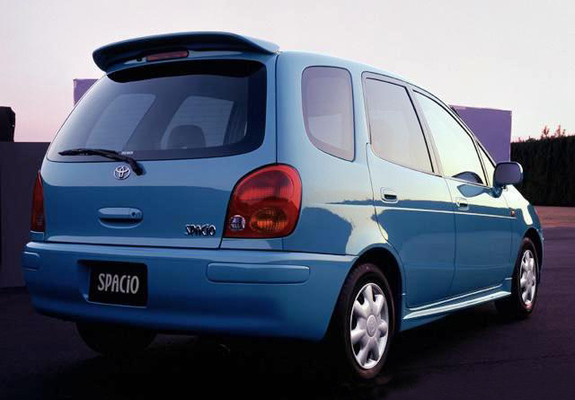

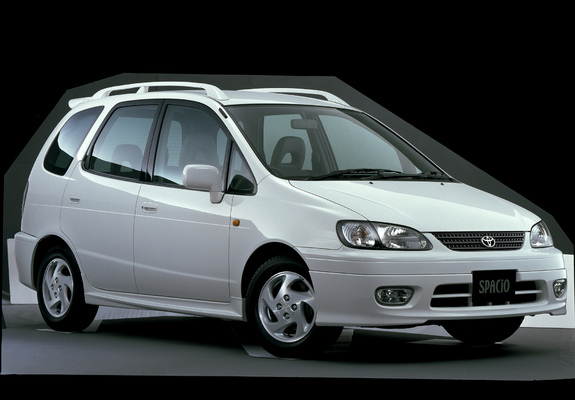

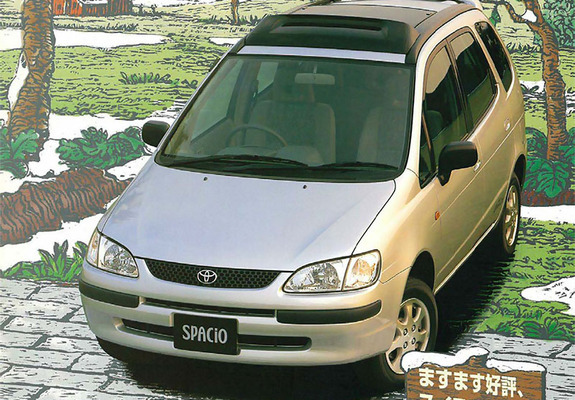

Toyota Corolla Spacio 1997–2001

1 generation

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine1587 cm3 Gasoline

Power109 hp

GearboxManual

Origin

Japan

Trim

1.6 AT (110 PS)1.6 MT (110 PS)1.8 AT (120 PS)1.8 AT (125 PS)1.8 MT (125 PS)

Specifications

Engine

Engine power109 hp

Engine power110 PS

Maximum torque145 N*m

Capacity1587 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4800 RPM

Engine code4A-FE

Max power at RPM6000 RPM

Stroke cycle77 mm

Cylinder bore81 mm

Max power (kW)81 kW

Compression ratio9.5

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Rear track1450 mm

Back track width1450 mm

Front track1460 mm

Front track width1460 mm

Ground clearance150 mm

Clearance150 mm

Height1620 mm

Width1690 mm

Wheel size185/65 R14

Wheelbase2260 mm

Length4135 mm

Number of seater6

Pitch Circle DiameterDIA54.1 4x100 mm

Body typeMinivan

Gearbox and handling

Turning circle10 m

Number of gear5

Drive wheelsFront wheel drive

Gearbox typeManual

Operating characteristics

Acceleration (0-100 km/h)10.2 s

Fuel tank capacity50 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionStrut

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
