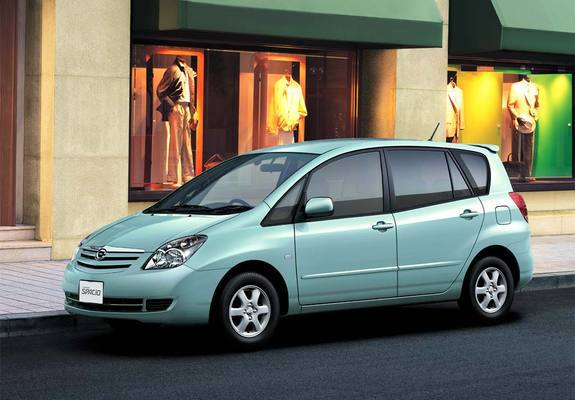

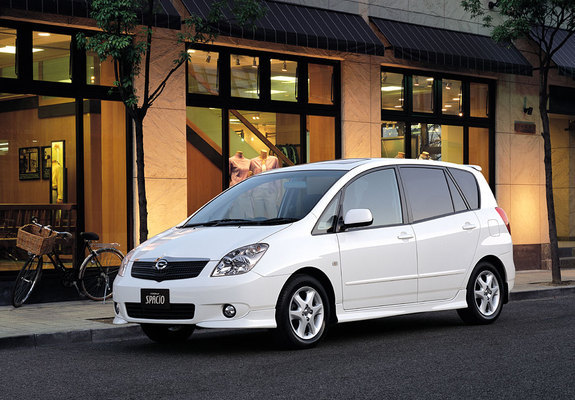

Toyota Corolla Spacio 2001–2003

2 generation

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine1497 cm3 Gasoline

Power107 hp

GearboxAutomatic

Origin

Japan

Trim

1.5 AT (109 PS)1.5 AT (110 hp)1.8 AT (125 PS)1.8 AT (132 PS)1.8 AT (136 PS)1.8 AT 4WD (125 hp)

Specifications

Engine

Compression ratio10.5

Engine power107 hp

Engine power109 PS

Maximum torque141 N*m

Capacity1497 cm3

Engine model1nz-fe

Engine code1NZ-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4200 RPM

Max power at RPM6000 RPM

Cylinder bore75 mm

Max power (kW)80 kW

Stroke cycle84.7 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1190 kg

Back track width1460 mm

Front track width1480 mm

Clearance155 mm

Height1610 mm

Width1695 mm

Wheel size185/70 R14

Wheelbase2600 mm

Min trunk capacity417 l

Length4240 mm

Number of seater7

Pitch Circle DiameterDIA54.1 4x100 mm

Body typeMinivan

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)11.3 s

Max speed180 km/h

Fuel tank capacity50 l

Mixed driving fuel consumption per 100 km6.2 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionSemi-independent, torsion

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
