Toyota Corolla Cross 2024–2026

1 generation [restyling]

General information

Number of doors5

Car classC

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine1797 cm3 Hybrid

Power121 hp

GearboxContinuously variable transmission (CVT)

Origin

Japan

Trim

1.8 CVT (122 PS)1.8 CVT (140 hp)1.8 CVT AWD (140 hp)2.0 CVT (169 hp)2.0 CVT (180 hp)2.0 CVT AWD (169 hp)2.0 CVT AWD (180 hp)2.0 CVT AWD (196 hp)2.0 CVT AWD (243 hp)

Specifications

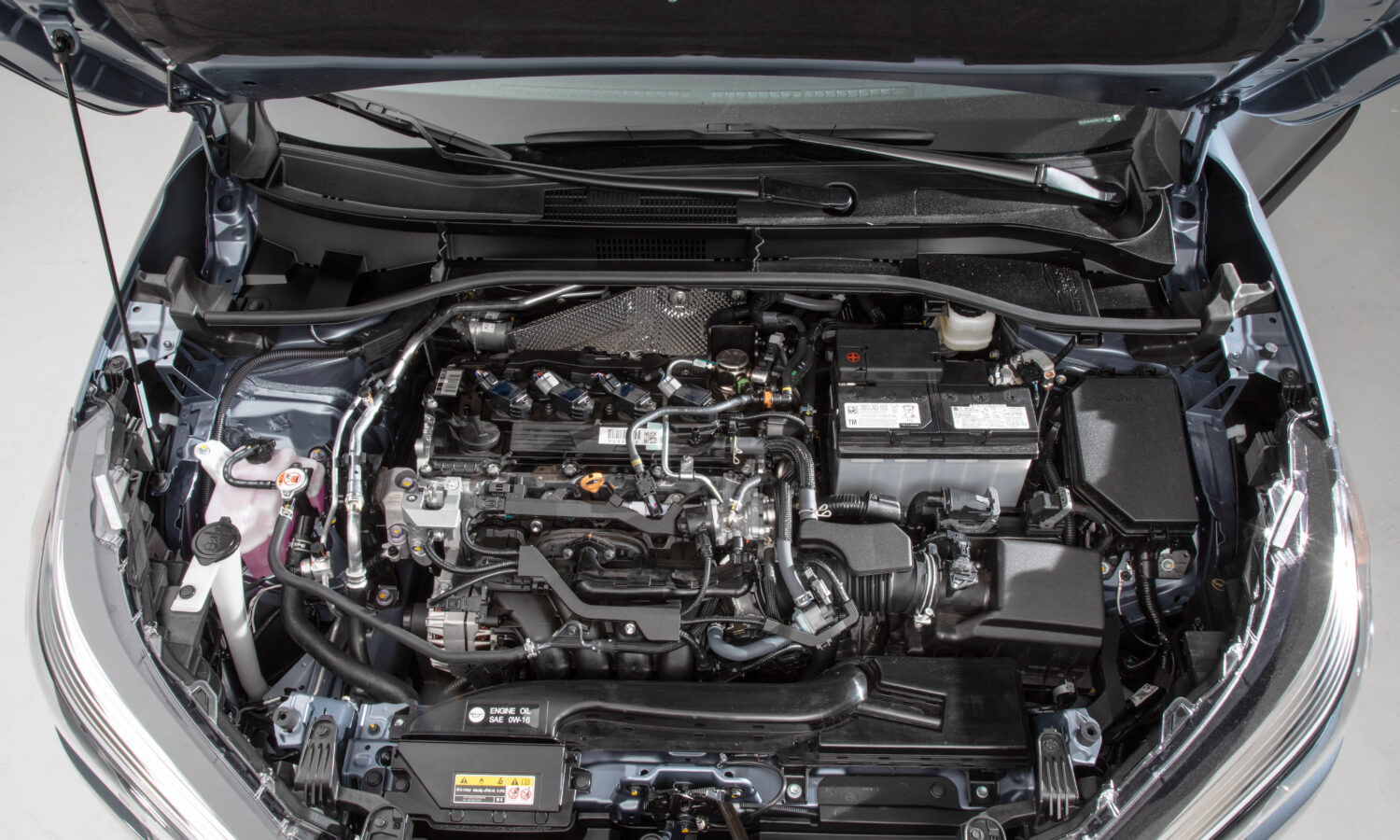

Engine

Engine power121 hp

Engine power122 PS

Compression ratio13

Maximum torque163 N*m

Capacity1797 cm3

Engine code2ZR-FXE

Turnover of maximum torque3600 RPM

Number of cylinders4

Valves per cylinder4

Max power at RPM5200 RPM

Cylinder bore80.5 mm

Stroke cycle88.3 mm

Max power (kW)90 kW

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeHybrid

Cylinder layoutinline

Boost typenone

Bodywork

Front track width1550 mm

Back track width1560 mm

Height1620 mm

Width1825 mm

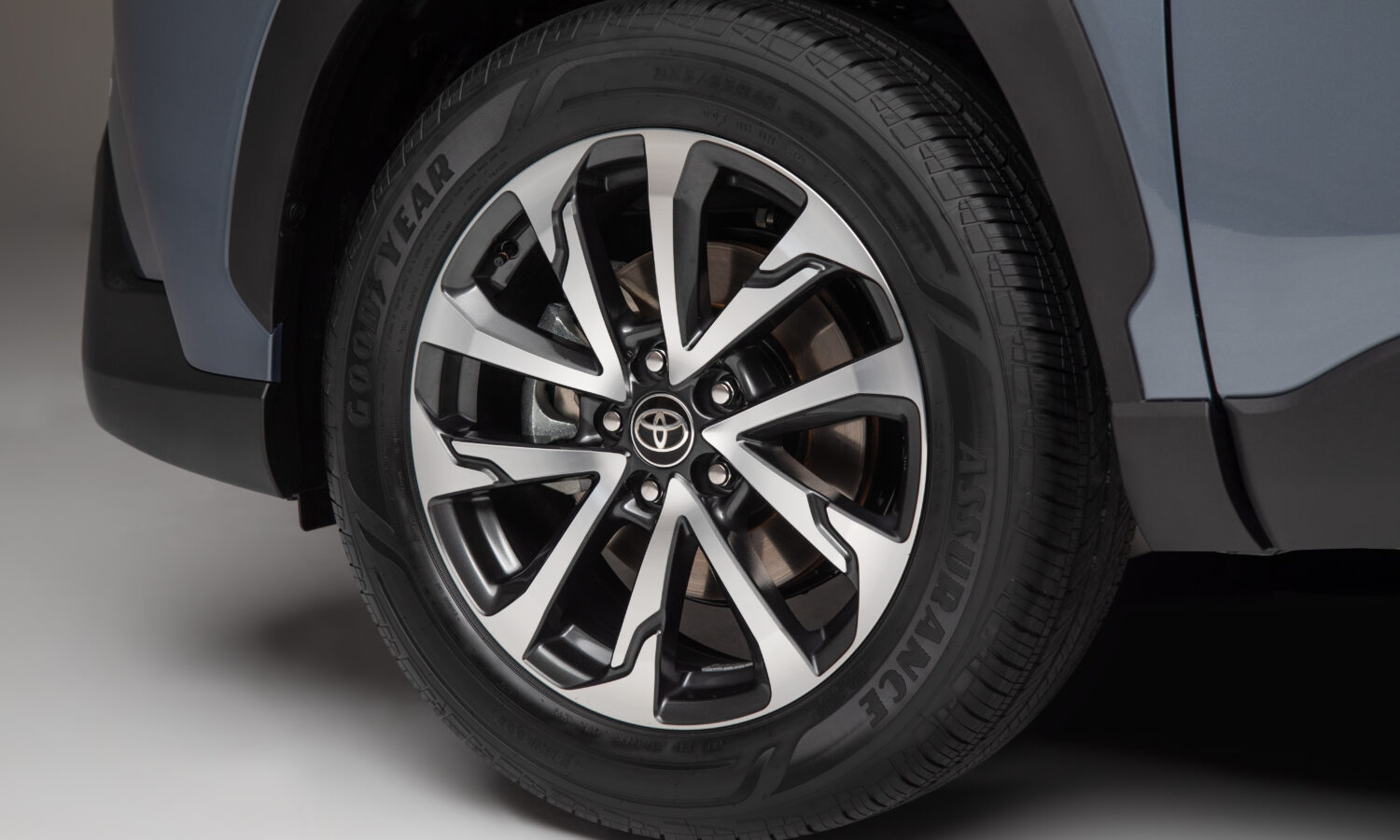

Wheel size225/50 R18

Wheelbase2640 mm

Length4455 mm

Number of seater5

Body typeCrossover

Gearbox and handling

Gearbox typeContinuously variable transmission (CVT)

Drive wheelsFront wheel drive

Operating characteristics

Fuel tank capacity36 l

Fuel95

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionSemi-dependent, spring

Front brakesventilated disc

Accumulator battery

Battery typeNickel metal hydride (NiMH)

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
