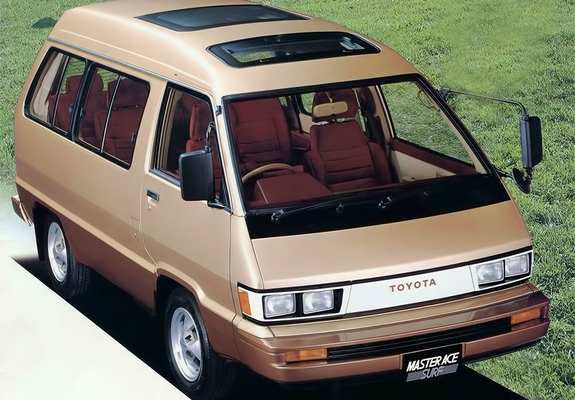

Toyota MasterAce Surf 1982–1991

1 generation (R20/R30)

General information

Number of doors3

CountryJapan

Steering wheel positionLeft/Right

Car classM

At a glance

Engine1974 cm3 Gasoline

Power78 hp

GearboxManual

Origin

Japan

Trim

1.8 AT (79 PS)1.8 MT (79 PS)2.0 AT 4WD (83 PS)2.0 AT 4WD (97 PS)2.0 AT (83 PS)2.0 MT 4WD (79 PS)2.0 MT 4WD (83 PS)2.0 MT 4WD (97 PS)2.0 MT (83 PS)2.0 MT (97 PS)

Specifications

Engine

Capacity1974 cm3

Valves per cylinder2

Engine code3Y

Number of cylinders4

Max power (kW)58 kW

Engine power78 hp

Engine power79 PS

Cylinder bore86 mm

Stroke cycle86 mm

Compression ratio8.8

Injection typecarburetor

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltOHV

Bodywork

Back track width1385 mm

Front track width1425 mm

Width1669 mm

Height1786 mm

Clearance180 mm

Wheel size185/80 R14

Wheelbase2235 mm

Length4465 mm

Disc size5.5x14 ET35

Number of seater7

Pitch Circle DiameterDIA108 6x139.7 mm

Body typeMinivan

Gearbox and handling

Number of gear5

Gearbox typeManual

Drive wheelsRear wheel drive

Operating characteristics

Fuel92

Mixed driving fuel consumption per 100 km9.8 l

Suspension and brakes

Back suspensionDependent, spring

Front brakesDisc

Front suspensionIndependent, spring
