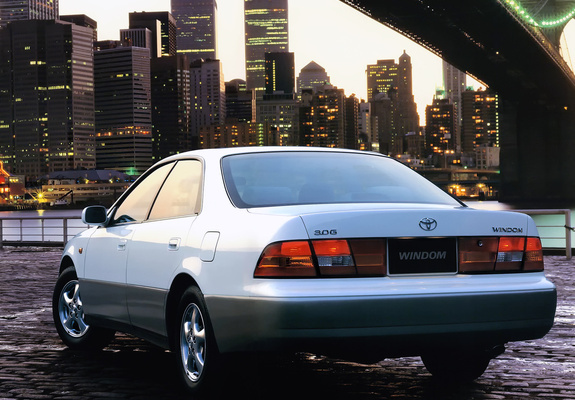

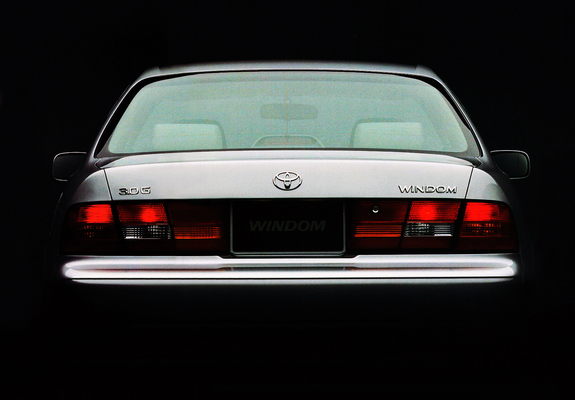

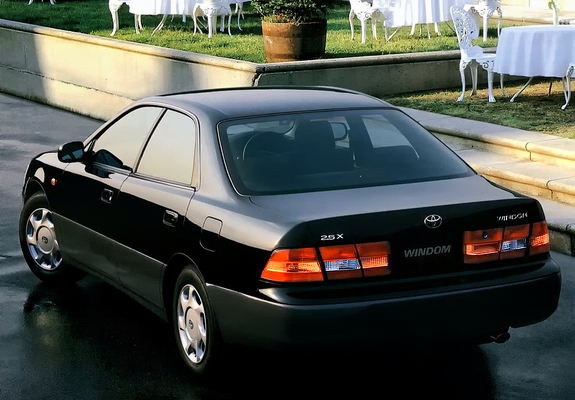

Toyota Windom 1996–2001

2 generation (MCV20 / MCV21)

General information

Number of doors4

Car classE

CountryJapan

Steering wheel positionRight

At a glance

Engine2496 cm3 Gasoline

Power173 hp

GearboxAutomatic

Origin

Japan

Trim

2.5 AT (175 PS)2.5 AT (200 PS)3.0 AT (188 PS)3.0 AT (210 hp)3.0 AT (215 PS)

Specifications

Engine

Max power (kW)129 kW

Engine power173 hp

Engine power175 PS

Maximum torque224 N*m

Capacity2496 cm3

Valves per cylinder4

Turnover of maximum torque4800 RPM

Engine code4VZ-FE

Number of cylinders6

Max power at RPM6000 RPM

Stroke cycle69.2 mm

Cylinder bore87.5 mm

Compression ratio9.6

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Boost typenone

Cylinder layoutV-type

Bodywork

Height1395 mm

Clearance145 mm

Curb weight1500 kg

Back track width1520 mm

Front track width1545 mm

Full weight1775 kg

Width1790 mm

Wheel size205/60 R16, 205/65 R15

Wheelbase2670 mm

Length4845 mm

Number of seater5

Pitch Circle DiameterDIA60.1 5x114.3 mm

Body typeSedan

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)10.9 s

Fuel tank capacity70 l

Mixed driving fuel consumption per 100 km8.6 l

Fuel95

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc
