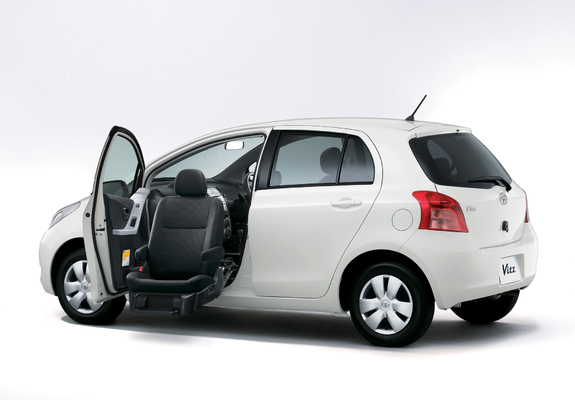

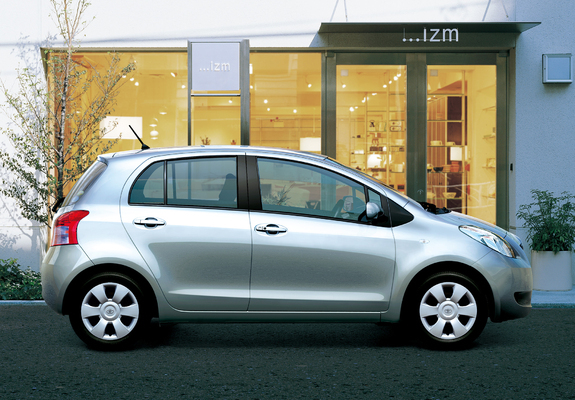

Toyota Vitz 2005–2007

2 generation (XP90)

General information

Number of doors5

Car classB

CountryJapan

Steering wheel positionRight

At a glance

Engine1296 cm3 Gasoline

Power86 hp

GearboxAutomatic

Origin

Japan

Trim

1.0 CVT (71 PS)1.3 AT (87 PS)1.3 CVT (87 PS)1.5 CVT (110 PS)1.5 MT (110 PS)

Specifications

Engine

Compression ratio10.5

Maximum torque124 N*m

Capacity1296 cm3

Engine code2SZ-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM6000 RPM

Max power (kW)64 kW

Stroke cycle73.5 mm

Cylinder bore75 mm

Engine power86 hp

Engine power87 PS

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1180 kg

Clearance145 mm

Full weight1455 kg

Back track width1470 mm

Front track width1480 mm

Height1520 mm

Wheel size165/70 R14, 185/60 R15, 195/50 R16

Width1695 mm

Wheelbase2460 mm

Min trunk capacity250 l

Length3750 mm

Number of seater5

Pitch Circle DiameterDIA54.1 4x100 mm

Body typeHatchback

Gearbox and handling

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel tank capacity42 l

Mixed driving fuel consumption per 100 km6.2 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionSemi-independent, torsion

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
