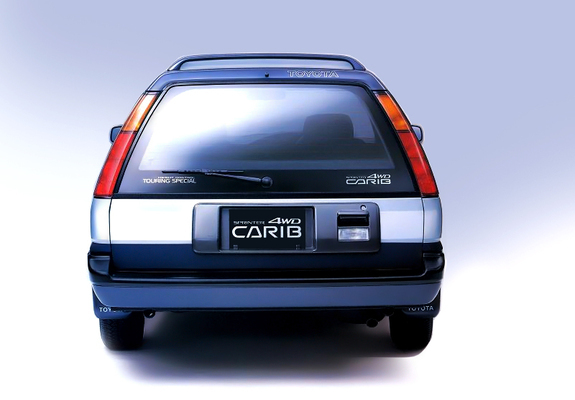

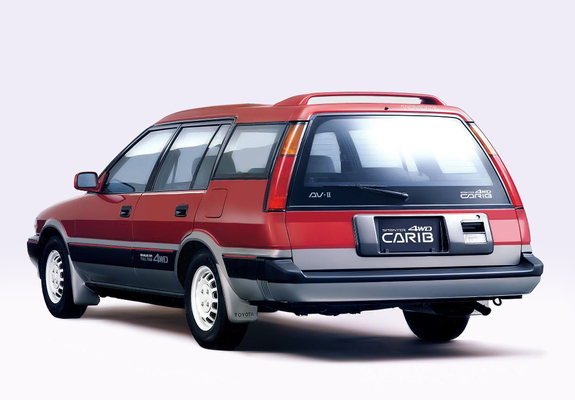

Toyota Sprinter Carib 1988–1995

2 generation (AE95)
General information
Number of doors5
Car classC
CountryJapan
Steering wheel positionRight
At a glance
Engine1587 cm3 Gasoline
Power100 hp
GearboxManual
OriginJapan
Series
wagonwagon 5-doors
Trim
1.6 AT 4WD (100 hp)1.6 AT 4WD (115 hp)1.6 MT 4WD (100 hp)1.6 MT 4WD (115 hp)

Specifications

Engine
Engine power100 hp
Engine power101 PS
Maximum torque137 N*m
Capacity1587 cm3
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4400 RPM
Engine code4A-FE
Engine model4A-FE
Max power at RPM5600 RPM
Max power (kW)74 kW
Stroke cycle77.0 mm
Cylinder bore81.0 mm
Compression ratio9.5
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Curb weight1110 kg
Back track width1380 mm
Front track width1440 mm
Height1500 mm
Width1610 mm
Wheel size165/80 R13
Clearance170 mm
Wheelbase2430 mm
Length4170 mm
Number of seater5
Disc size5.5x14 ET45
Pitch Circle DiameterDIA54.1 4x100 mm
Body typeWagon
Gearbox and handling
Number of gear5
Drive wheelsAll wheel drive (AWD)
Gearbox typeManual
Operating characteristics
Mixed driving fuel consumption per 100 km8.2 l
Fuel92
Suspension and brakes
Back suspensionDependent, spring
Front brakesDisc
Rear brakesdrum
Front suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
