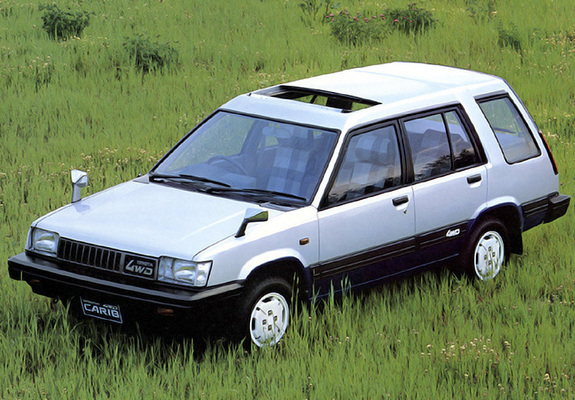

Toyota Sprinter Carib 1982–1988

1 generation (AL25)

General information

Number of doors5

Car classC

CountryJapan

Steering wheel positionRight

At a glance

Engine1452 cm3 Gasoline

Power89 hp

GearboxAutomatic

Origin

Japan

Series

wagon wagon 5-doors Carib

Trim

1.5 AT 4WD (83 PS)1.5 AT 4WD (90 PS)1.5 MT 4WD (83 PS)1.5 MT 4WD (90 PS)

Specifications

Engine

Capacity1452 cm3

Valves per cylinder2

Engine model3a-su

Engine code3A-SU

Number of cylinders4

Max power at RPM6000 RPM

Max power (kW)66 kW

Stroke cycle77 mm

Cylinder bore77.5 mm

Engine power89 hp

Engine power90 PS

Compression ratio9.3

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltOHC

Bodywork

Back track width1350 mm

Front track width1380 mm

Height1500 mm

Clearance155 mm

Width1615 mm

Wheel size165/80 R13, 185/70 R13

Wheelbase2430 mm

Length4310 mm

Number of seater5

Disc size5.5x13 ET39, 5x13 ET39

Pitch Circle DiameterDIA54.1 4x100 mm

Body typeWagon

Gearbox and handling

Number of gear3

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel95

Suspension and brakes

Front brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
