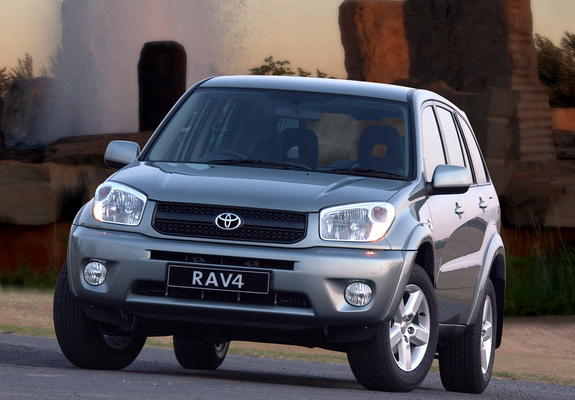

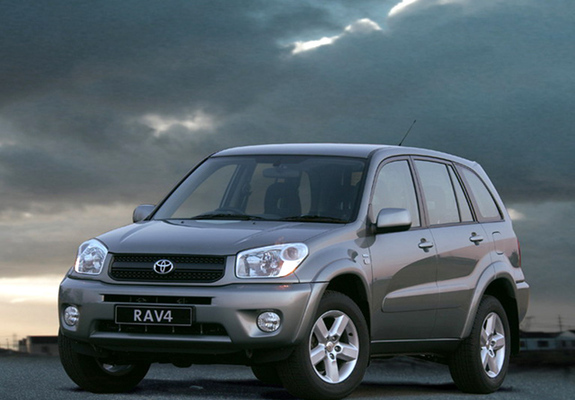

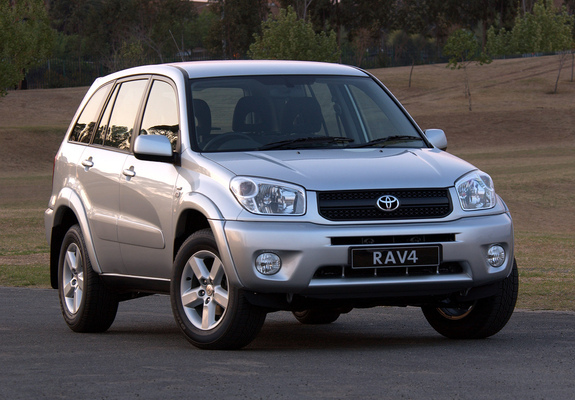

Toyota RAV4 2003–2005

2 generation (XA20) [restyling]

At a glance

Engine1794 cm3 Gasoline

Power125 hp

GearboxAutomatic

OriginN/A

Series

Crossover 3-doors Crossover 5-doors

Trim

1.8 AT (125 hp)1.8 AT AWD (125 hp)1.8 MT (125 hp)1.8 MT AWD (125 hp)2.0 AT AWD (150 hp)2.0 D AT AWD (116 hp)2.0 D MT AWD (116 hp)2.0 MT AWD (150 hp)

Specifications

Engine

Engine power125 hp

Engine power126 PS

Maximum torque161 N*m

Capacity1794 cm3

Number of cylinders4

Valves per cylinder4

Max power (kW)93 kW

Engine typeGasoline

Cylinder layoutInline

Injection typeMulti-point fuel injection

Turnover of maximum torqueto 4 200 RPM

Max power at RPMto 6 000 RPM

Bodywork

Curb weight1200 kg

Rear track1520 mm

Front track1525 mm

Full weight1595 kg

Height1670 mm

Width1765 mm

Ground clearance200 mm

Wheelbase2280 mm

Length3850 mm

Number of seater5

Min trunk capacity766 l

Max trunk capacity766 l

Body typeCrossover

Gearbox and handling

Turning circle10 m

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel tank capacity60 l

Fuel95

Emission standardsEURO IV

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, McPherson Struts

Back suspensionIndependent, Multi wishbone

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
