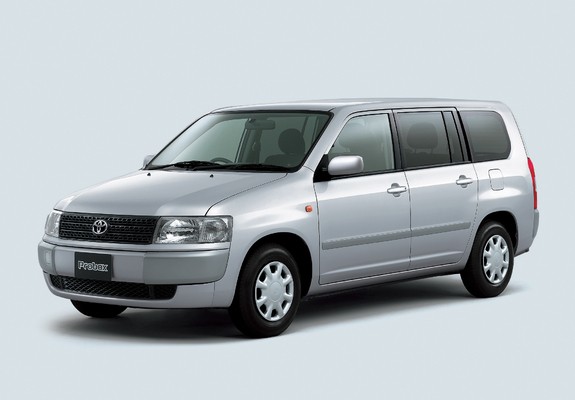

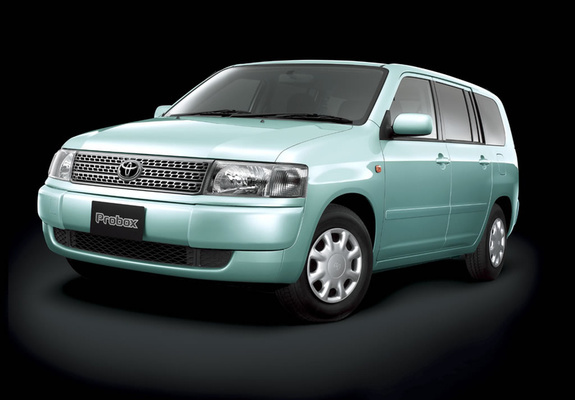

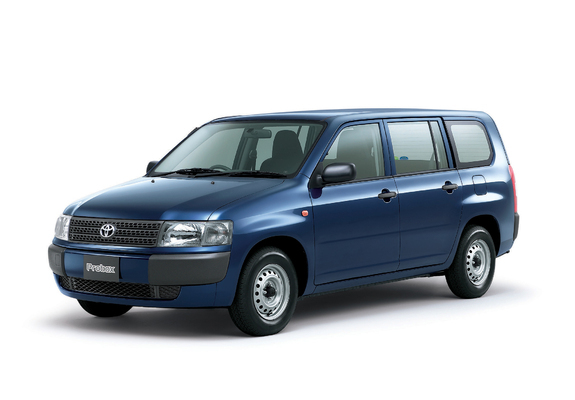

Toyota Probox 2002–2014

1 generation (XP50)

At a glance

Engine1298 cm3 Gasoline

Power87 hp

GearboxAutomatic

OriginN/A

Trim

1.3 AT (88 PS)1.3 AT Van (87 hp)1.3 MT (88 PS)1.3 MT Van (87 hp)1.4 AT (75 PS)1.4 D-4D MT Van (72 hp)1.4 MT (75 PS)1.5 AT (109 PS)1.5 AT 4WD (105 hp)1.5 AT 4WD Van (105 PS)1.5 AT Van (109 hp)1.5 MT (109 PS)1.5 MT 4WD (105 hp)1.5 MT 4WD Van (105 PS)1.5 MT Van (109 hp)

Specifications

Engine

Maximum torque121 N*m

Capacity1298 cm3

Number of cylinders4

Valves per cylinder4

Max power (kW)65 kW

Stroke cycle73.5 mm

Cylinder bore75 mm

Engine power87 hp

Engine power88 PS

Engine typeGasoline

Cylinder layoutInline

Injection typeMulti-point fuel injection

Presence of intercoolerPresent

Turnover of maximum torqueto 4 400 RPM

Max power at RPMto 6 000 RPM

Bodywork

Curb weight1040 kg

Front track1455 mm

Rear track1465 mm

Ground clearance150 mm

Height1525 mm

Full weight1565 kg

Width1690 mm

Wheelbase2550 mm

Length4195 mm

Number of seater5

Payload525 kg

Body typeWagon

Gearbox and handling

Number of gear4

Turning circle9.8 m

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Fuel tank capacity50 l

Fuel92

Suspension and brakes

Rear brakesdrum

Back suspensionMulti wishbone, Trailing arms, Stabilizer bar

Front suspensionStrut

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
