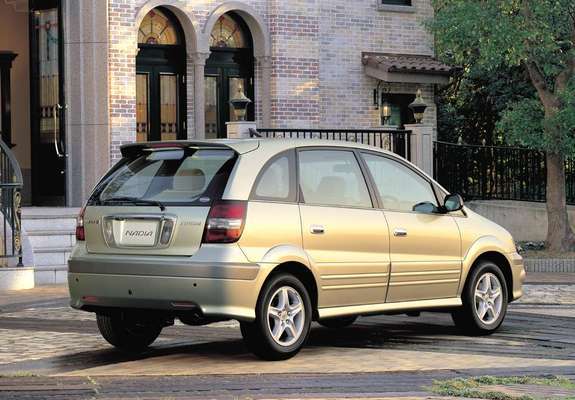

Toyota Nadia 2001–2003

1 generation (XN10) [Restyling]

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine1998 cm3 Gasoline

Power133 hp

GearboxAutomatic

Origin

Japan

Trim

2.0 AT (145 PS)2.0 AT (152 hp)2.0 AT 4WD (135 PS)2.0 AT 4WD (152 PS)

Specifications

Engine

Engine power133 hp

Engine power135 PS

Maximum torque181 N*m

Capacity1998 cm3

Engine model3s-fe

Engine code3S-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM6000 RPM

Cylinder bore86.0 mm

Stroke cycle86.0 mm

Compression ratio9.5

Max power (kW)99 kW

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1350 kg

Rear track1450 mm

Back track width1450 mm

Front track1470 mm

Front track width1470 mm

Ground clearance160 mm

Clearance160 mm

Height1625 mm

Width1695 mm

Wheel size195/60 R15

Wheelbase2735 mm

Length4425 mm

Number of seater5

Pitch Circle DiameterDIA60.1 5x114.3 mm

Body typeMinivan

Gearbox and handling

Turning circle11 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)10.0 s

Max speed180 km/h

Fuel tank capacity60 l

Mixed driving fuel consumption per 100 km8.4 l

Fuel92

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionSemi-dependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
