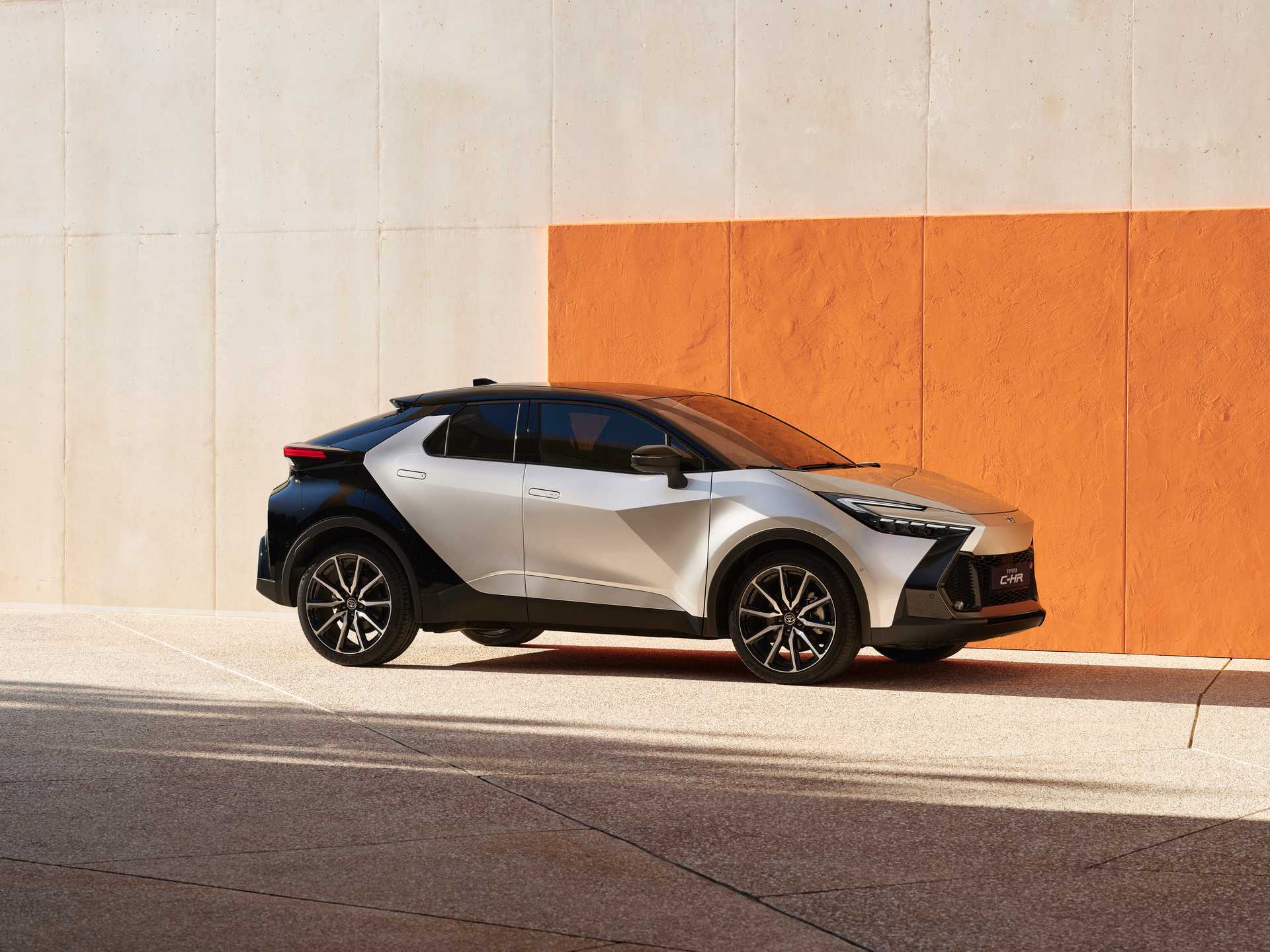

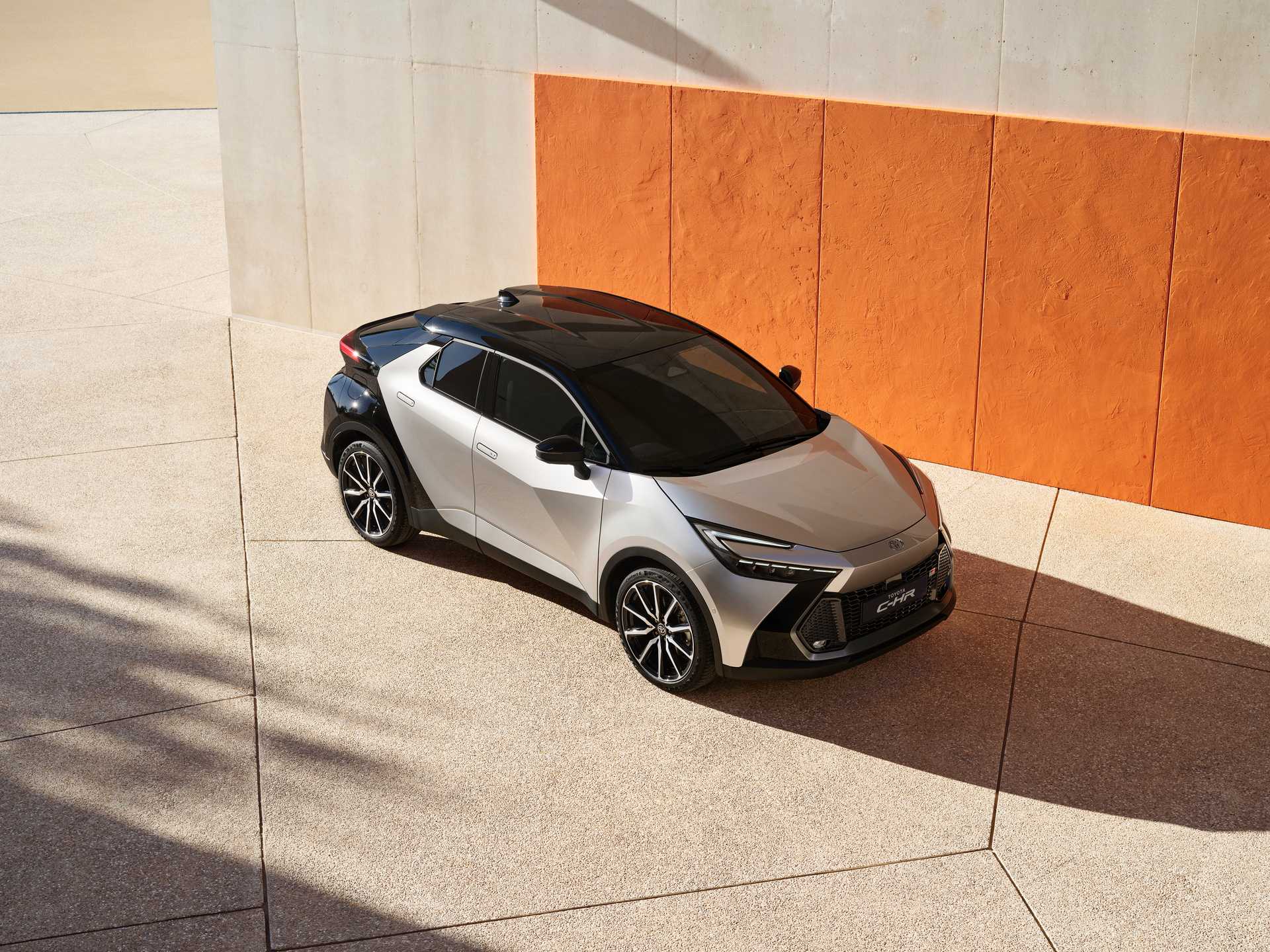

Toyota C-HR 2023–2025
2 generation (AX20)General information
Number of doors5
Car classC
CountryJapan
Steering wheel positionLeft
At a glance
Engine1797 cm3 Hybrid
Power138 hp
GearboxContinuously variable transmission (CVT)
Origin
Japan
JapanSpecifications
Engine
Max power (kW)103 kW
Compression ratio13
Engine power138 hp
Engine power140 PS
Maximum torque142 N*m
Capacity1797 cm3
Engine code2ZR-FXE
Engine model2ZR-FXE
Turnover of maximum torque3600 RPM
Number of cylinders4
Valves per cylinder4
Max power at RPM5200 RPM
Cylinder bore80.5 mm
Stroke cycle88.3 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, transverse
Engine typeHybrid
Cylinder layoutinline
Boost typenone
Bodywork
Height1558 mm
Width1830 mm
Wheelbase2640 mm
Min trunk capacity360 l
Length4360 mm
Number of seater5
Body typeCrossover
Gearbox and handling
Gearbox typeContinuously variable transmission (CVT)
Drive wheelsFront wheel drive
Operating characteristics
CO2 emissions111 g/km
Max speed170 km/h
Fuel tank capacity43 l
Mixed driving fuel consumption per 100 km5.0 l
Fuel95
Acceleration (0-100 km/h)9.9 s
Emission standardsEuro 6
Suspension and brakes
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc
Rear brakesventilated disc
Accumulator battery
Battery typeLithium-ion (Li-ion)
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
