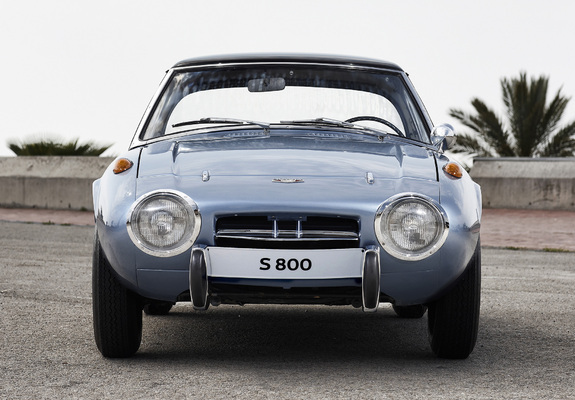

Toyota Sports 800 1965–1969

1 generation (UP15)

General information

Number of doors2

CountryJapan

Steering wheel positionRight

Car classS

At a glance

Engine791 cm3 Gasoline

Power44 hp

GearboxManual

Origin

Japan

Trim

0.8 MT (45 PS)0.8 MT RWD (45 PS)

Specifications

Engine

Number of cylinders2

Valves per cylinder2

Engine code2U-B

Engine model2U-B

Max power (kW)33 kW

Turnover of maximum torque3800 RPM

Engine power44 hp

Engine power45 PS

Max power at RPM5400 RPM

Maximum torque66 N*m

Stroke cycle72.9 mm

Capacity791 cm3

Cylinder bore83.1 mm

Compression ratio9

Injection typecarburetor

Engine placementFront, longitudinal

Engine typeGasoline

Boost typenone

Timing beltOHV

Cylinder layoutopposed

Bodywork

Back track width1161 mm

Height1176 mm

Front track width1204 mm

Width1465 mm

Clearance175 mm

Number of seater2

Wheelbase2000 mm

Length3580 mm

Curb weight580 kg

Body typeTarga

Gearbox and handling

Number of gear4

Gearbox typeManual

Drive wheelsRear wheel drive

Operating characteristics

Max speed156 km/h

Fuel tank capacity30 l

Suspension and brakes

Back suspensionDependent, spring

Front brakesdrum

Rear brakesdrum

Front suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
