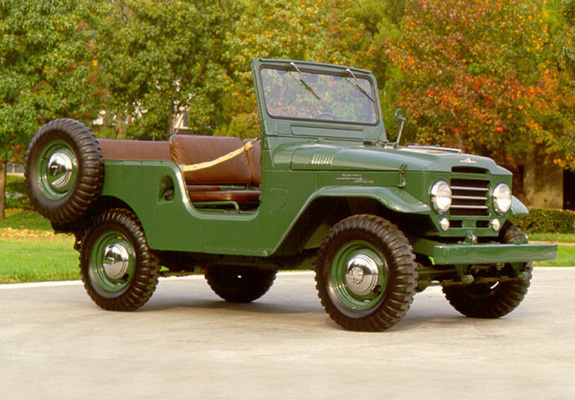

Toyota Land Cruiser 1955–1960

2 Generation (20 Series)

At a glance

Engine3386 cm3 Gasoline

Power85 hp

GearboxManual

OriginN/A

Trim

3.4 MT AWD (85 hp)3.9 MT AWD (105 hp)3.9 MT AWD (125 hp)

Specifications

Engine

Stroke cycle101.6 mm

Valves per cylinder2

Maximum torque216 N*m

Capacity3386 cm3

Number of cylinders6

Max power (kW)63 kW

Cylinder bore84.1 mm

Engine power85 hp

Engine power86 PS

Injection typecarburetor

Engine typeGasoline

Cylinder layoutInline

Turnover of maximum torqueto 1 600 RPM

Max power at RPMto 3 200 RPM

Bodywork

Rear track1350 mm

Front track1390 mm

Curb weight1425 kg

Full weight1625 kg

Width1665 mm

Height1850 mm

Ground clearance210 mm

Wheelbase2285 mm

Length3838 mm

Number of seater4

Body typeCrossover

Gearbox and handling

Turning circle10.6 m

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeManual

Operating characteristics

Fuel tank capacity57 l

Fuel80

Max speed90 km/h

Suspension and brakes

Back suspensionDependent, spring

Front brakesdrum

Rear brakesdrum

Front suspensionSpring
