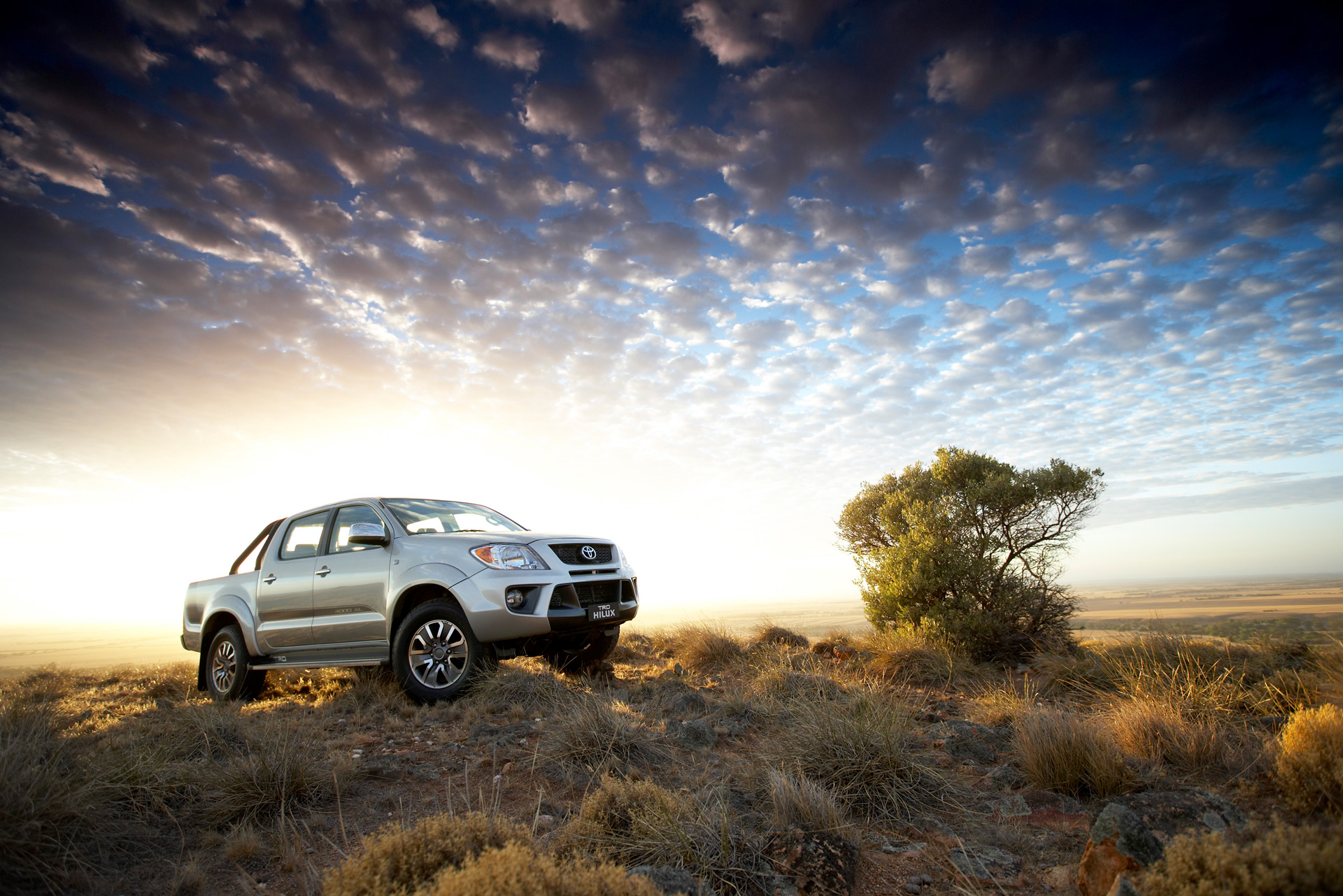

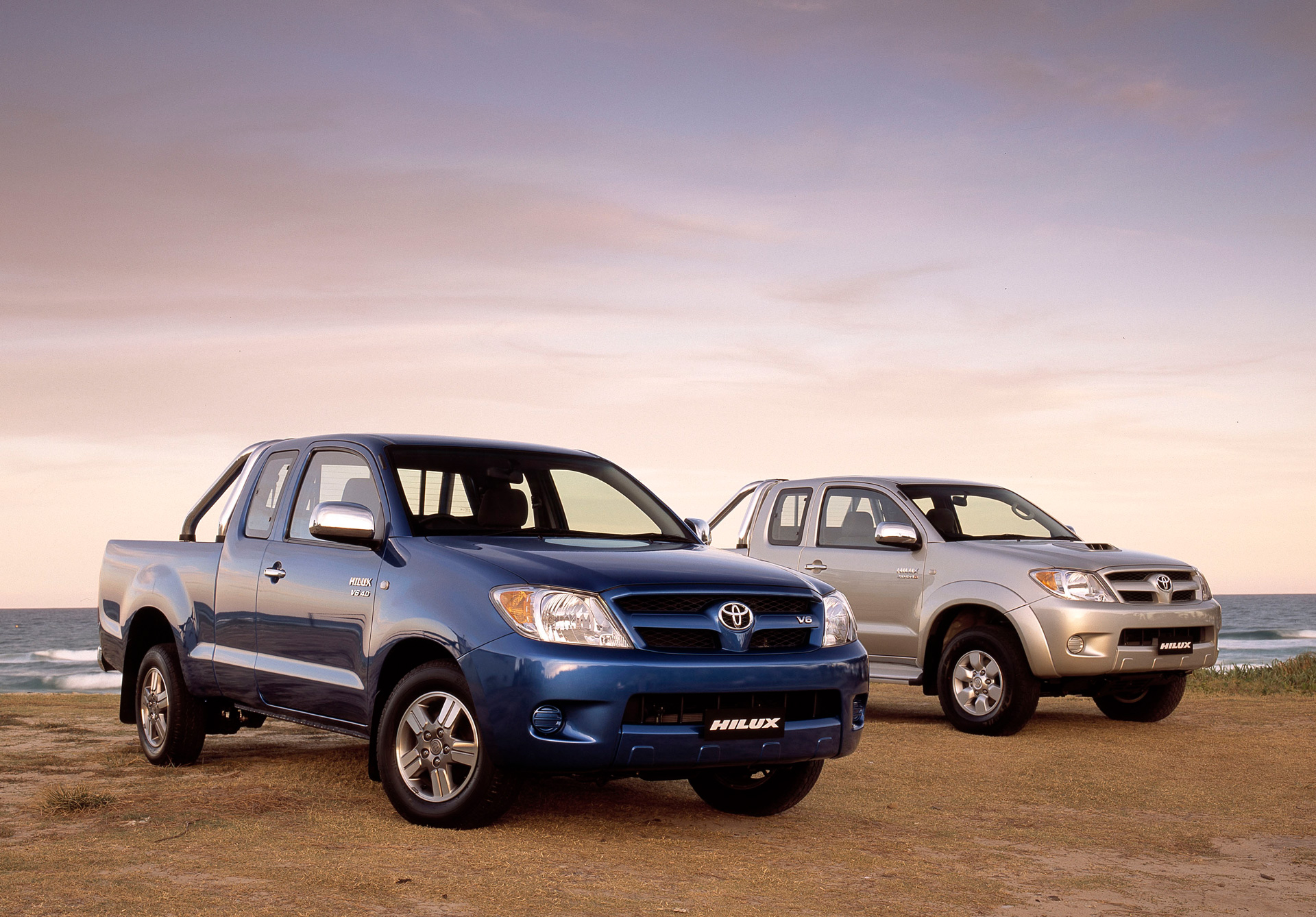

Toyota Hilux 2005–2011

7 generation (AN10/AN20/AN30)

At a glance

Engine2494 cm3 Diesel

Power101 hp

GearboxAutomatic

OriginN/A

Series

Extended Cab pickup 2-doors Pickup 2-doors Pickup 4-doors

Trim

2.5 AT (144 hp)2.5 D MT AWD (144 PS)2.5 MT (102 hp)2.5 MT (120 hp)2.5 MT AWD (144 PS)2.5 TD AT (101 hp)2.5 TD MT (101 hp)2.7 MT (158 hp)2.7 MT (160 hp)3.0 AT (171 PS)3.0 MT (170 hp)4.0 AT (236 hp)4.0 MT (236 hp)

Specifications

Engine

Engine power101 hp

Engine power102 PS

Capacity2494 cm3

Maximum torque260 N*m

Number of cylinders4

Valves per cylinder4

Max power (kW)75 kW

Cylinder bore92 mm

Stroke cycle93.8 mm

Injection typeCommon Rail

Engine typeDiesel

Cylinder layoutInline

Turnover of maximum torqueto 1 600 RPM

Max power at RPMto 3 600 RPM

Boost typeTurbo

Bodywork

Front track1510 mm

Rear track1540 mm

Height1680 mm

Curb weight1695 kg

Width1760 mm

Number of seater2

Ground clearance212 mm

Full weight2735 kg

Wheelbase2770 mm

Length4975 mm

Body typePickup

Gearbox and handling

Turning circle12.6 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Max speed150 km/h

Acceleration (0-100 km/h)17.5 s

Fuel tank capacity80 l

Fueldiesel

Emission standardsEURO IV

Suspension and brakes

Back suspensionDependent, Axle, Spring

Rear brakesdrum

Front suspensionIndependent, Torsion, Double wishbone, Stabilizer bar

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
