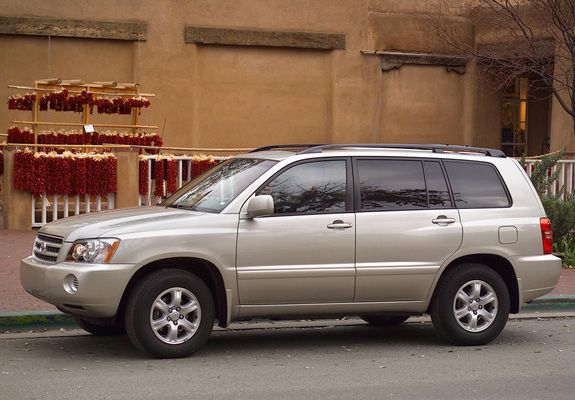

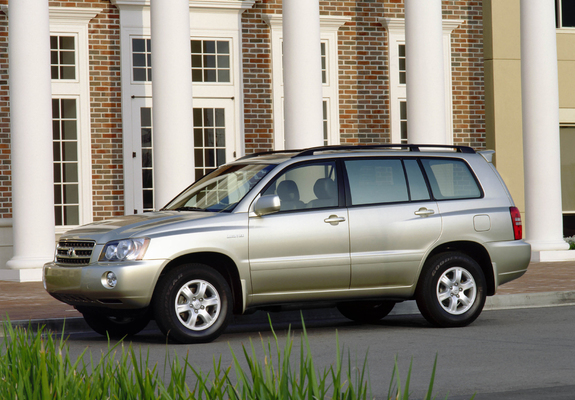

Toyota Highlander 2001–2003

1 generation (XU20)

General information

Number of doors5

Car classE

CountryJapan

Steering wheel positionLeft

At a glance

Engine2362 cm3 Gasoline

Power157 hp

GearboxAutomatic

Origin

Japan

Trim

2.4 AT (157 hp)2.4 AT 4WD (157 hp)3.0 AT (223 hp)3.0 AT 4WD (223 PS)

Specifications

Engine

Max power (kW)116 kW

Engine power157 hp

Engine power158 PS

Maximum torque221 N*m

Capacity2362 cm3

Engine code2AZ-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4000 RPM

Max power at RPM5600 RPM

Cylinder bore88.5 mm

Compression ratio9.6

Stroke cycle96.0 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Min trunk capacity1090 l

Rear track1555 mm

Back track width1565 mm

Front track1575 mm

Front track width1580 mm

Height1679 mm

Clearance170 mm

Curb weight1725 kg

Width1826 mm

Ground clearance185 mm

Wheel size225/65 R17, 225/70 R16

Full weight2260 kg

Max trunk capacity2305 l

Wheelbase2715 mm

Trailer load (with brakes)3621 kg

Length4684 mm

Number of seater5

Payload576 kg

Body typeCrossover

Pitch Circle DiameterDIA60.1 5x114.3 mm

Gearbox and handling

Turning circle11.4 m

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Mixed driving fuel consumption per 100 km11.2 l

Acceleration (0-100 km/h)11.3 s

City driving fuel consumption per 100 km13.0 l

Max speed170 km/h

Fuel tank capacity75 l

Highway driving fuel consumption per 100 km9.0 l

Fuel95

Cruising rangefrom 600 to 770 km

Suspension and brakes

Front brakesDisc

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
