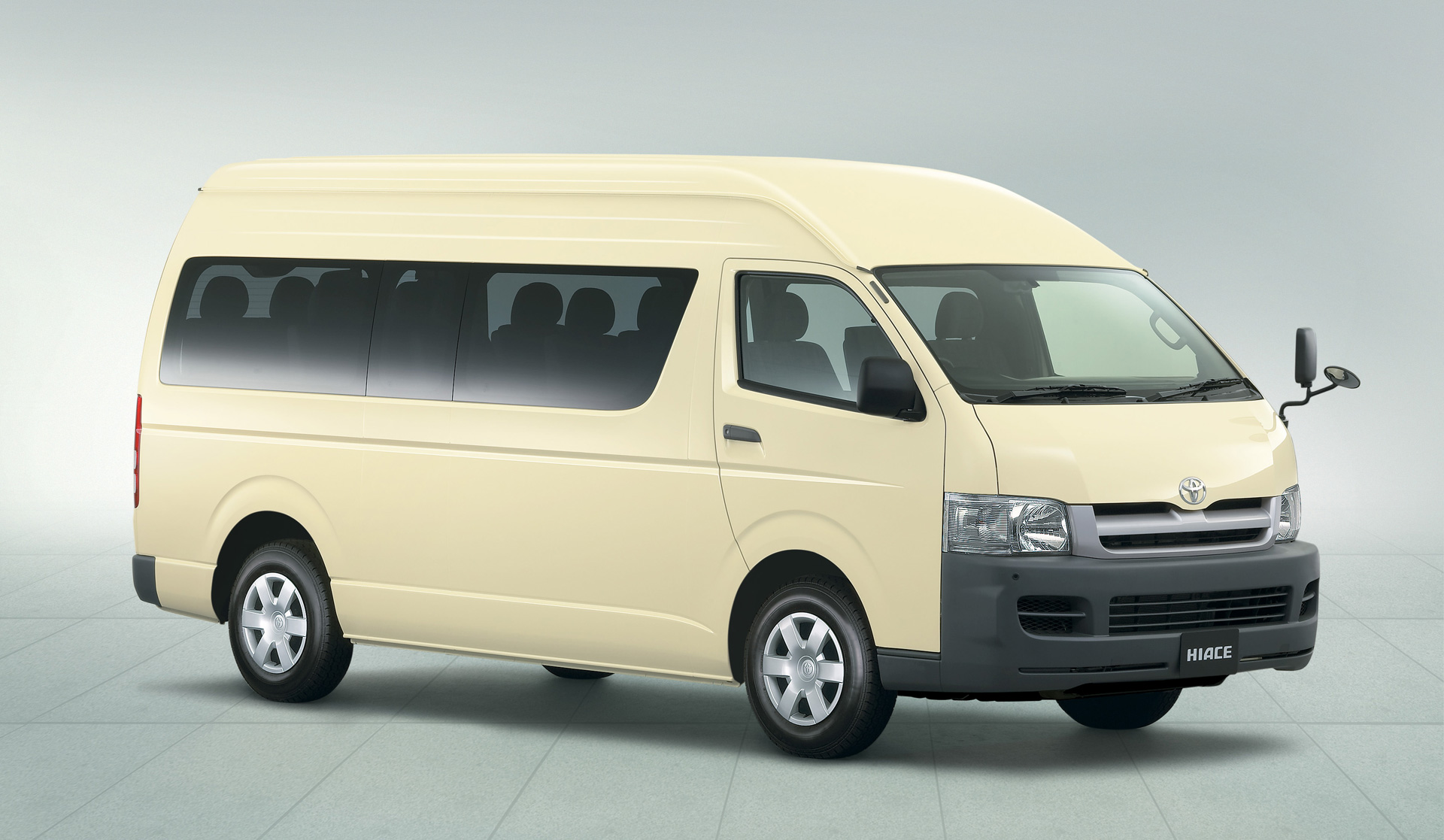

Toyota Hiace 2004–2010

5 Generation (H200)

General information

Number of doors4

CountryJapan

Steering wheel positionLeft/Right

Car classM

At a glance

Engine1998 cm3 Gasoline

Power131 hp

GearboxAutomatic

Origin

Japan

Series

Minivan Van

Trim

2.0 AT (133 PS)2.0 MT (133 PS)2.7 MT (151 PS)3.0 D MT (136 hp)3.0 MT (136 PS)

Specifications

Engine

Compression ratio10.4

Engine power131 hp

Engine power133 PS

Maximum torque182 N*m

Capacity1998 cm3

Engine code1TR-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4000 RPM

Max power at RPM5600 RPM

Cylinder bore86.0 mm

Stroke cycle86.0 mm

Max power (kW)98 kW

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Back track width1650 mm

Front track width1655 mm

Curb weight1730 kg

Clearance175 mm

Wheel size185/75 R15

Width1880 mm

Height2105 mm

Wheelbase2570 mm

Full weight3110 kg

Length4840 mm

Number of seater8

Pitch Circle DiameterDIA106.1 6x139.7 mm

Body typeMinivan

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Mixed driving fuel consumption per 100 km11.0 l

Fuel tank capacity70 l

Fuel95

Emission standardsEuro 4

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, Torsion

Front brakesventilated disc
