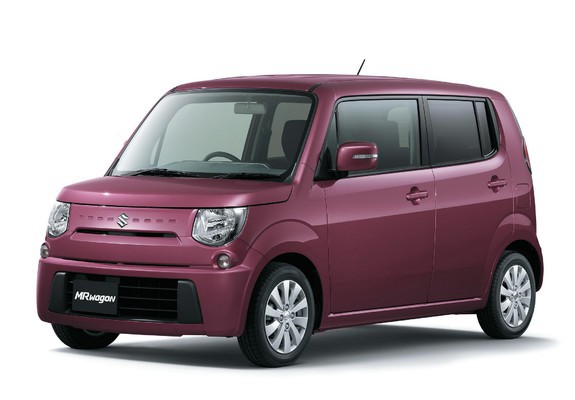

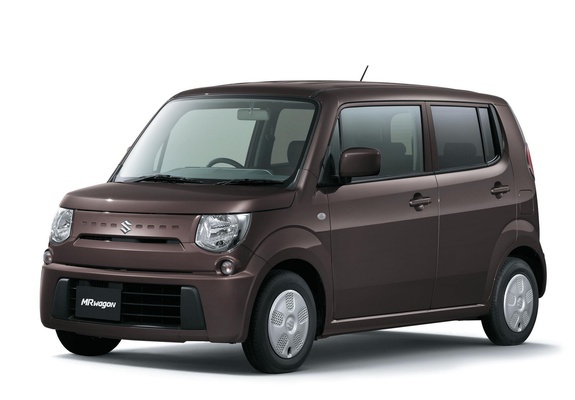

Suzuki MR Wagon 2011–2015

3 generation (MF33S)

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine658 cm3 Gasoline

Power51 hp

GearboxContinuously variable transmission (CVT)

Origin

Japan

Trim

0.7 CVT 4WD (52 PS)0.7 CVT 4WD (64 PS)

Specifications

Engine

Compression ratio11

Number of cylinders3

Max power (kW)38 kW

Valves per cylinder4

Turnover of maximum torque4000 RPM

Engine power51 hp

Engine power52 PS

Max power at RPM6000 RPM

Maximum torque63 N*m

Cylinder bore64 mm

Capacity658 cm3

Stroke cycle68.2 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Engine codeR06A

Bodywork

Back track width1290 mm

Front track width1295 mm

Wheel size145/80 R13

Width1475 mm

Clearance155 mm

Height1625 mm

Wheelbase2425 mm

Length3395 mm

Number of seater4

Pitch Circle DiameterDIA54.1 4x100 mm

Body typeMinibus

Gearbox and handling

Drive wheelsAll wheel drive (AWD)

Gearbox typeContinuously variable transmission (CVT)

Operating characteristics

Fuel tank capacity30 l

Fuel95

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
