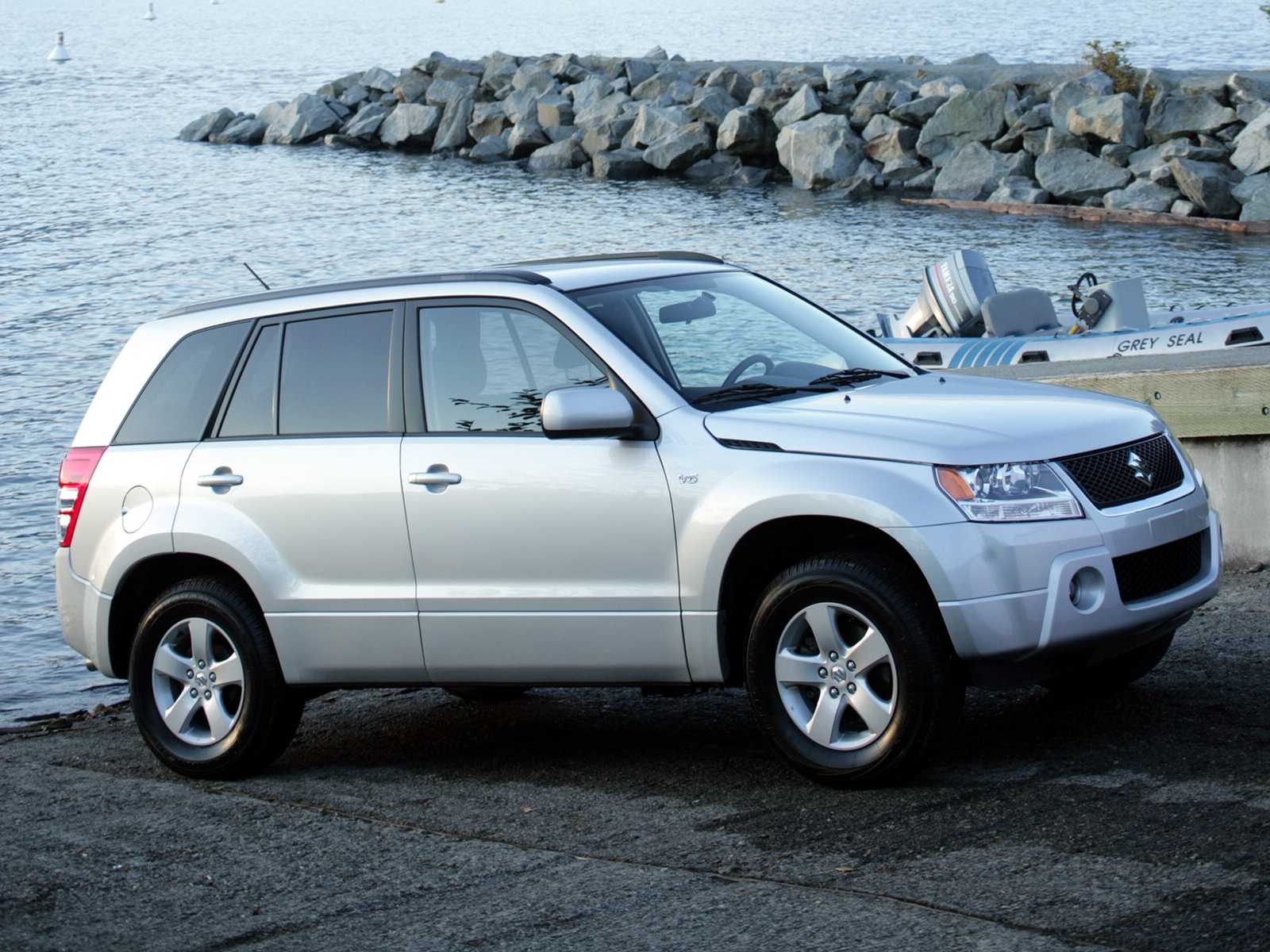

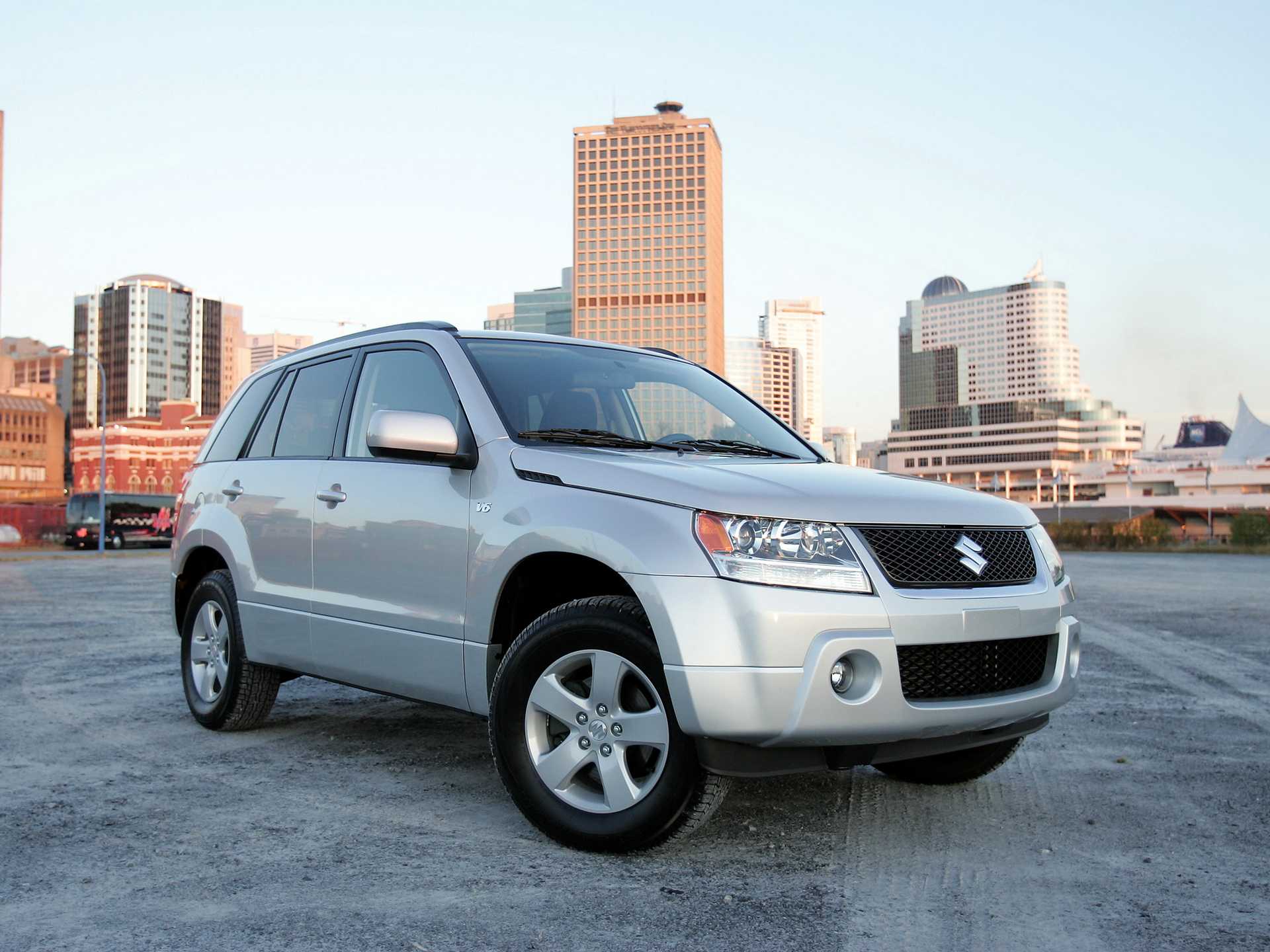

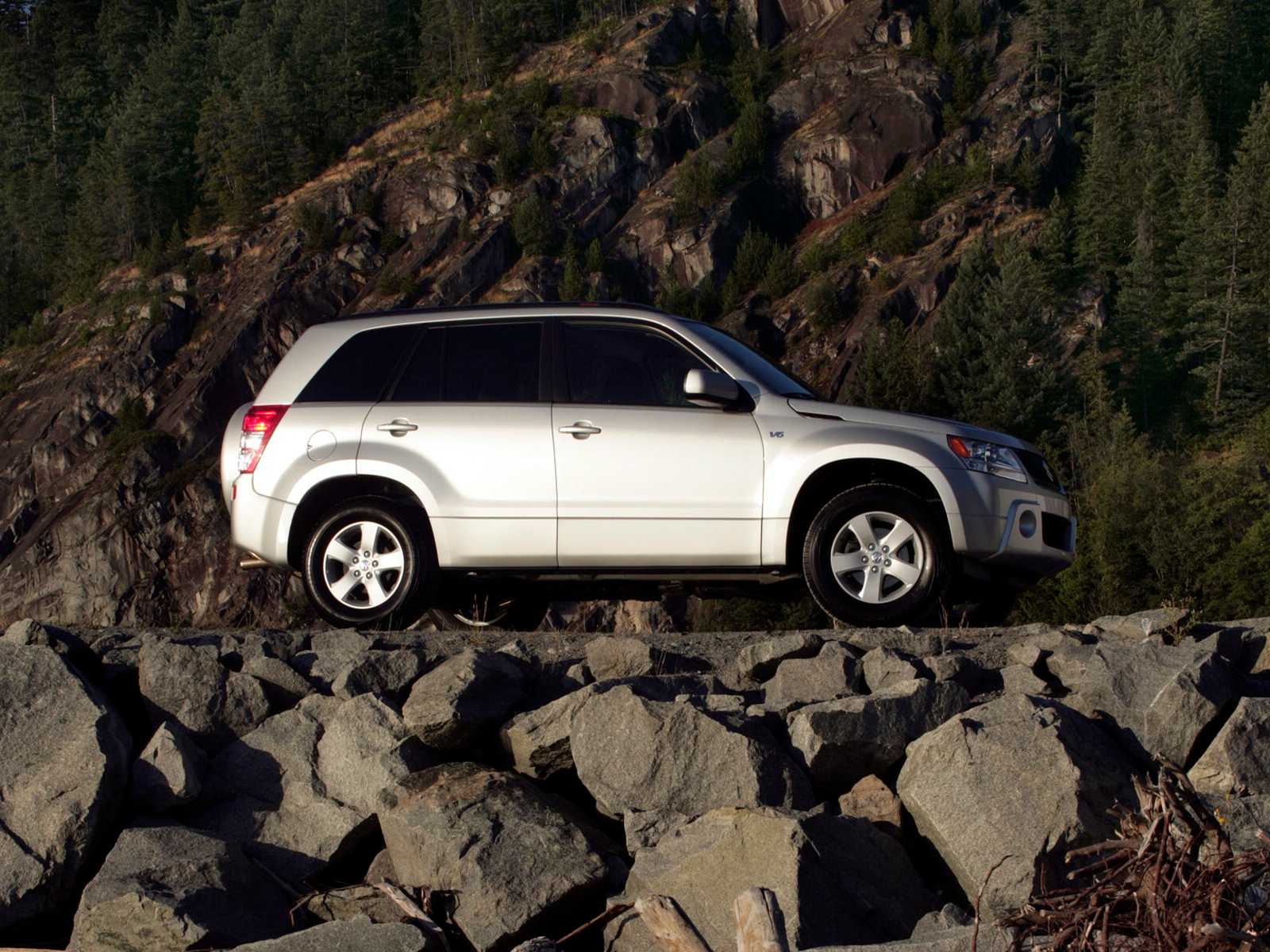

Suzuki Grand Vitara 2005–2008
2 generation (JT)At a glance
Engine1586 cm3 Gasoline
Power106 hp
GearboxManual
OriginN/A
Specifications
Engine
Engine power106 hp
Engine power107 PS
Maximum torque145 N*m
Capacity1586 cm3
Number of cylinders4
Valves per cylinder4
Cylinder bore78 mm
Max power (kW)79 kW
Stroke cycle83 mm
Engine typeGasoline
Cylinder layoutInline
Injection typeMulti-point fuel injection
Turnover of maximum torqueto 4 100 RPM
Max power at RPMto 5 900 RPM
Bodywork
Curb weight1405 kg
Front track1540 mm
Rear track1570 mm
Height1695 mm
Width1810 mm
Full weight1830 kg
Min trunk capacity184 l
Ground clearance200 mm
Wheelbase2440 mm
Number of seater4
Length4060 mm
Max trunk capacity964 l
Body typeCrossover
Gearbox and handling
Turning circle10.2 m
Number of gear5
Drive wheelsAll wheel drive (AWD)
Gearbox typeManual
Operating characteristics
City driving fuel consumption per 100 km10.2 l
Acceleration (0-100 km/h)14.4 s
Max speed160 km/h
Fuel tank capacity55 l
Highway driving fuel consumption per 100 km7.1 l
Mixed driving fuel consumption per 100 km8.2 l
Fuel95
Emission standardsEURO IV
Cruising rangefrom 540 to 770 km
Suspension and brakes
Rear brakesdrum
Front suspensionIndependent, McPherson Struts
Back suspensionIndependent, Multi wishbone
Front brakesventilated disc
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
