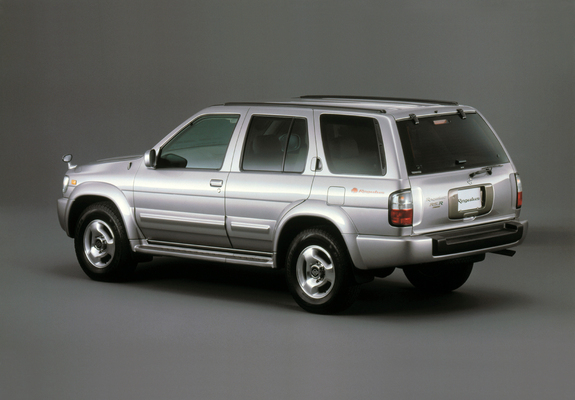

Nissan Terrano Regulus 1996–2002

1 generation (R50 / JR50)

General information

Number of doors5

Car classJ

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine2953 cm3 Diesel

Power168 hp

GearboxAutomatic

Origin

Japan

Trim

3.0 AT 4WD (170 PS)3.2 AT 4WD (150 PS)3.3 AT 4WD (170 PS)

Specifications

Engine

Stroke cycle102 mm

Max power (kW)125 kW

Engine power168 hp

Engine power170 PS

Compression ratio17.9

Turnover of maximum torque1800 RPM

Capacity2953 cm3

Maximum torque353 N*m

Max power at RPM3600 RPM

Number of cylinders4

Valves per cylinder4

Cylinder bore96 mm

Engine typeDiesel

Timing beltDOHC

Engine placementFront, longitudinal

Injection typeHPFP (Diesel)

Cylinder layoutinline

Boost typeTurbocharged

Engine modelzd30ddti

Engine codeZD30DDTI

Bodywork

Front track width1520 mm

Back track width1525 mm

Height1730 mm

Width1840 mm

Curb weight1930 kg

Clearance210 mm

Wheel size255/65 R16

Wheelbase2700 mm

Length4670 mm

Number of seater5

Disc size7x16 ET30

Body typeCrossover

Pitch Circle DiameterDIA100.5 6x139.7 mm

Gearbox and handling

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Acceleration (0-100 km/h)13.6 s

Fuel tank capacity80 l

Fueldiesel

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
