Nissan NV100 Clipper 2012–2013

1 generation (U71V / U72V) [restyling]

General information

Number of doors5

CountryJapan

Steering wheel positionLeft/Right

Car classM

At a glance

Engine657 cm3 Gasoline

Power47 hp

GearboxAutomatic

Origin

Japan

Trim

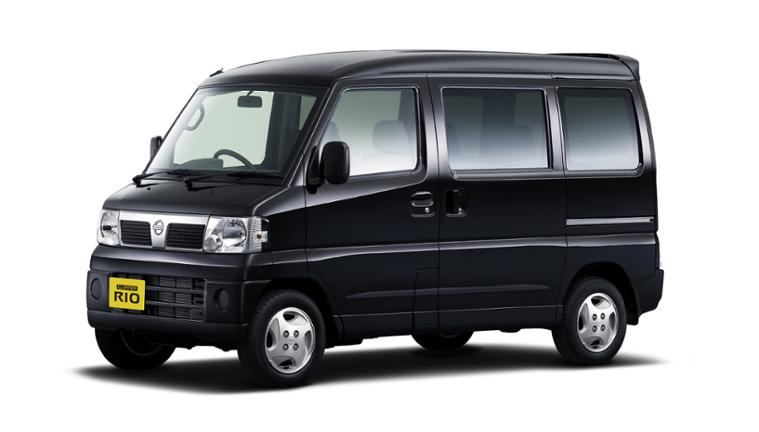

0.7 AT 4WD (48 PS)0.7 AT 4WD (64 PS)0.7 MT (48 PS)0.7 MT 4WD (48 PS)0.7 MT 4WD (64 PS)0.7 MT (64 PS)

Specifications

Engine

Compression ratio10.2

Valves per cylinder2

Number of cylinders3

Max power (kW)35 kW

Engine code3G83

Engine model3G83

Turnover of maximum torque4000 RPM

Engine power47 hp

Engine power48 PS

Max power at RPM6000 RPM

Stroke cycle60.6 mm

Maximum torque62 N*m

Capacity657 cm3

Cylinder bore68 mm

Injection typedistributed injection (multipoint)

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Front track width1290 mm

Back track width1290 mm

Width1475 mm

Clearance150 mm

Height1890 mm

Wheelbase2390 mm

Length3395 mm

Number of seater4

Curb weight910 kg

Body typeMinibus

Gearbox and handling

Number of gear3

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Fuel tank capacity40 l

Mixed driving fuel consumption per 100 km6.7 l

Fuel95

Suspension and brakes

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
