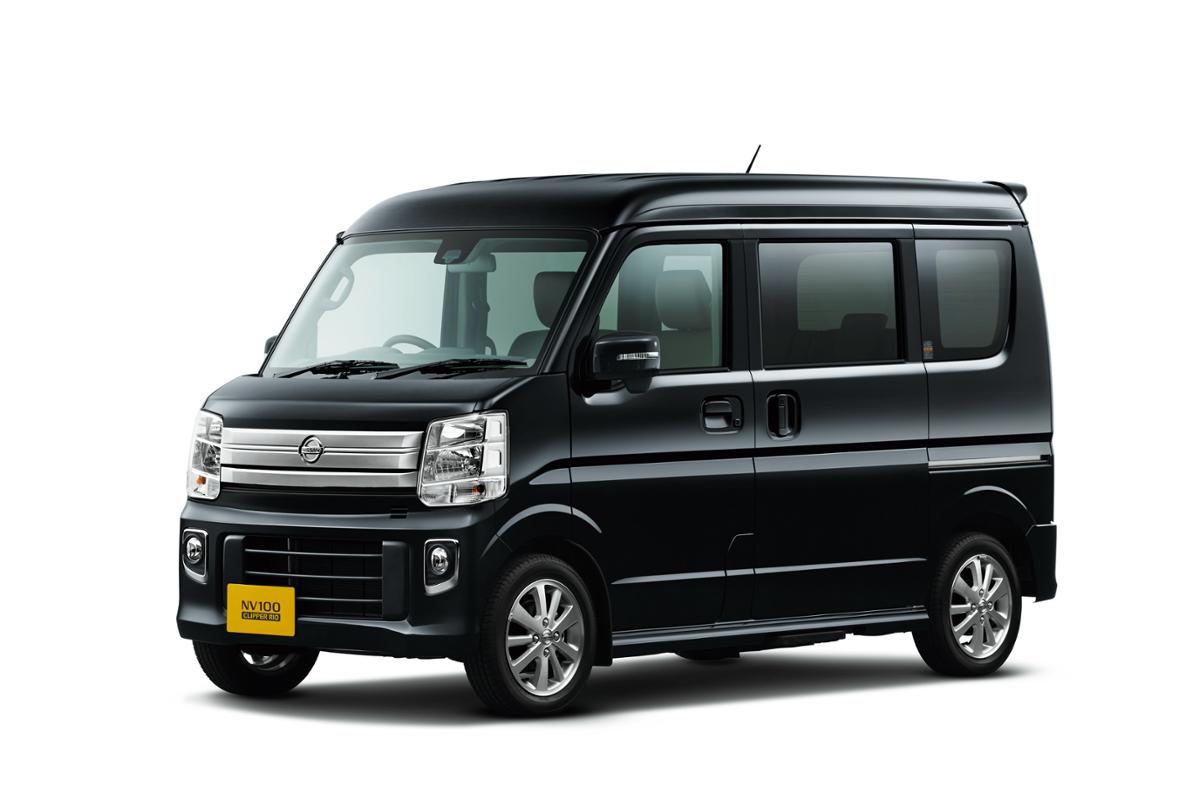

Nissan NV100 Clipper 2019–2024

3 generation (DR17V)

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine658 cm3 Gasoline

Power48 hp

GearboxManual

Origin

Japan

Trim

0.7 (64 PS)0.7 AT 4WD (49 PS)

Specifications

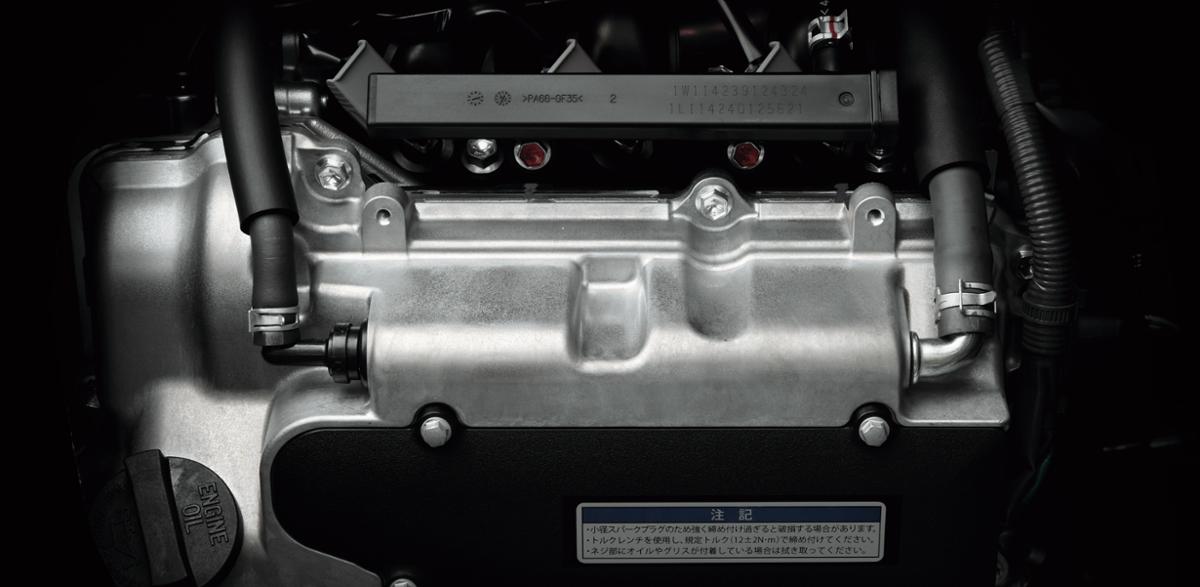

Engine

Compression ratio11

Number of cylinders3

Turnover of maximum torque3500 RPM

Max power (kW)36 kW

Valves per cylinder4

Engine power48 hp

Engine power49 PS

Max power at RPM5700 RPM

Maximum torque62 N*m

Cylinder bore64 mm

Capacity658 cm3

Stroke cycle68.2 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Engine codeR06A

Engine modelR06A

Bodywork

Back track width1290 mm

Front track width1310 mm

Wheel size145/80/R12

Width1475 mm

Clearance150 mm

Height1895 mm

Wheelbase2430 mm

Length3395 mm

Number of seater4

Curb weight850 kg

Body typeMinibus

Gearbox and handling

Number of gear5

Gearbox typeManual

Drive wheelsRear wheel drive

Operating characteristics

Fuel tank capacity37 l

Mixed driving fuel consumption per 100 km5.3 l

Fuel92

Suspension and brakes

Back suspensionDependent, spring

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
