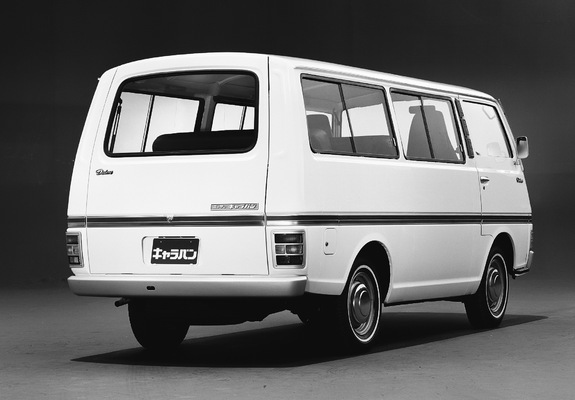

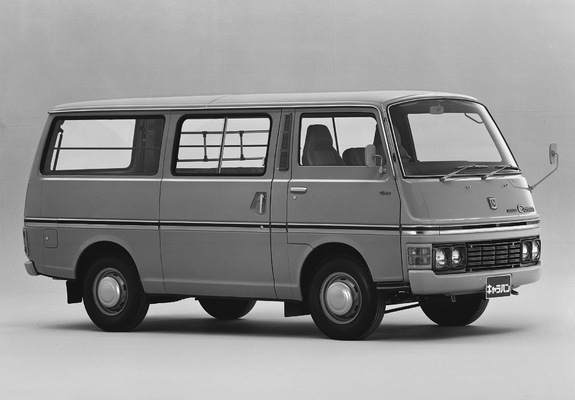

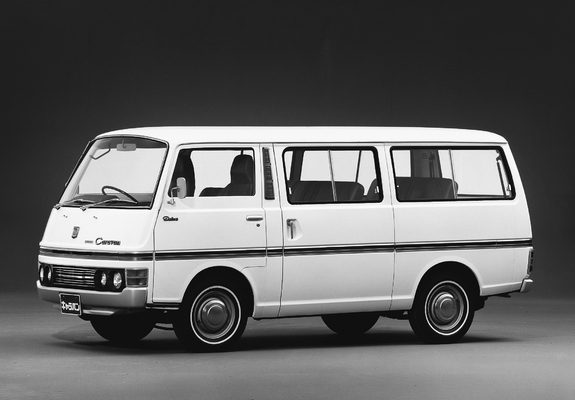

Nissan Caravan 1973–1980
1 generation (E20)At a glance
Engine1596 cm3 Gasoline
Power82 hp
GearboxManual
OriginN/A
Specifications
Engine
Capacity1596 cm3
Maximum torque160 N*m
Number of cylinders4
Valves per cylinder4
Max power (kW)61 kW
Cylinder bore78 mm
Engine power82 hp
Stroke cycle82 mm
Engine power83 PS
Injection typecarburetor
Engine typeGasoline
Cylinder layoutInline
Presence of intercoolerPresent
Turnover of maximum torqueto 3 200 RPM
Max power at RPMto 5 400 RPM
Bodywork
Payload1000 kg
Curb weight1325 kg
Rear track1380 mm
Front track1385 mm
Width1690 mm
Ground clearance175 mm
Height1905 mm
Min trunk capacity2015 l
Wheelbase2130 mm
Full weight2520 kg
Max trunk capacity3045 l
Cargo compartment (Length x Width x Height)3045x1515x1320 mm
Length4009 mm
Loading height590 mm
Number of seater6
Cargo compartment volume6.9 m3
Body typeMinivan
Gearbox and handling
Number of gear5
Turning circle5.5 m
Gearbox typeManual
Drive wheelsRear wheel drive
Operating characteristics
City driving fuel consumption per 100 km10.2 l
Max speed125 km/h
Fuel tank capacity48 l
Highway driving fuel consumption per 100 km6.4 l
Fuel80
Cruising rangefrom 470 to 750 km
Suspension and brakes
Front suspensionDouble wishbone
Rear brakesdrum
Back suspensionSolid axle, Multi wishbone, Stabilizer bar
Front brakesventilated disc
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
No grades recorded for this trim yet.
