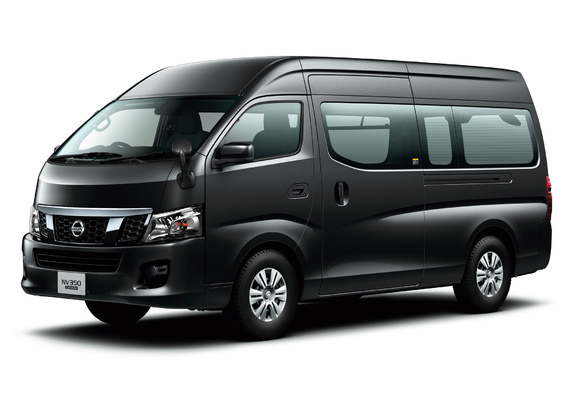

Nissan NV350 Caravan 2012–2017

1 generation (E26)

General information

Number of doors4

CountryJapan

Steering wheel positionLeft/Right

Car classM

At a glance

Engine1998 cm3 Gasoline

Power130 hp

GearboxManual

Origin

Japan

Series

Minivan Van

Trim

2.0 AT (130 hp)2.0 MT (130 hp)2.5 AT (147 PS)2.5 AT 4WD (129 PS)2.5 MT (129 PS)

Specifications

Engine

Engine power129 PS

Engine power130 hp

Maximum torque178 N*m

Capacity1998 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM5600 RPM

Stroke cycle80.3 mm

Cylinder bore89.0 mm

Max power (kW)95 kW

Compression ratio9.9

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Engine codeQR20DE

Bodywork

Back track width1450 mm

Front track width1475 mm

Width1695 mm

Clearance170 mm

Curb weight1700 kg

Wheel size195/80 R15

Height1990 mm

Wheelbase2555 mm

Full weight3065 kg

Length4695 mm

Disc size5.5x15 ET45

Number of seater6

Pitch Circle DiameterDIA100 6x139.7 mm

Body typeMinivan

Gearbox and handling

Number of gear5

Gearbox typeManual

Drive wheelsRear wheel drive

Operating characteristics

Fuel tank capacity65 l

Mixed driving fuel consumption per 100 km9.6 l

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
