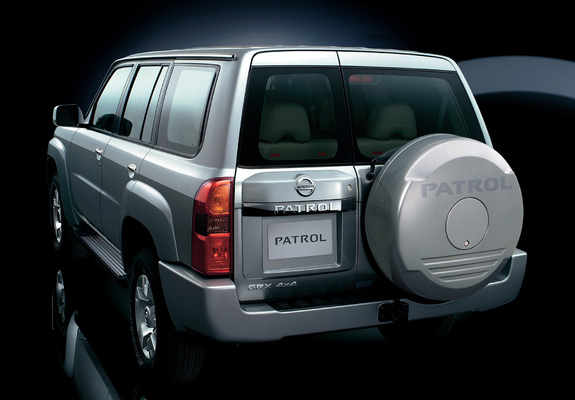

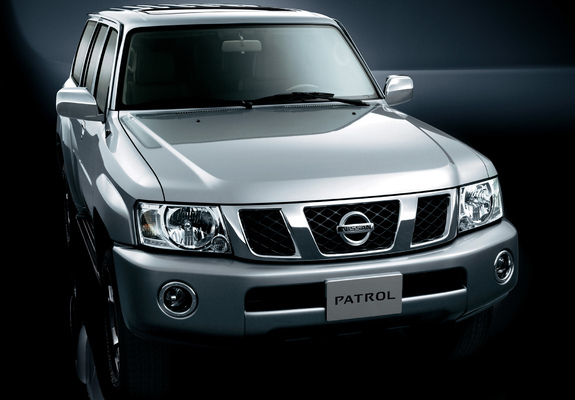

Nissan Patrol 2004–2010

5 generation (Y61) [restyling]
General information
Number of doors3
Car classJ
CountryJapan
Steering wheel positionLeft
At a glance
Engine2953 cm3 Diesel
Power158 hp
GearboxAutomatic
OriginJapan
Series
Pickup Single cabinSUV 3-doorsSUV 5-doors
Trim
3.0 Di AT (160 PS)3.0 Di MT (160 PS)4.2 AT (145 PS)4.2 AT (160 PS)4.2 D MT (116 hp)4.2 MT (145 PS)4.2 MT (160 PS)4.8 AT (245 PS)4.8 AT (280 PS)4.8 MT (245 PS)4.8 MT (280 PS)4.8 Tiptronic (258 hp)

Specifications

Engine
Stroke cycle102.0 mm
Max power (kW)118 kW
Engine power158 hp
Engine power160 PS
Compression ratio17.9
Turnover of maximum torque2000 RPM
Capacity2953 cm3
Max power at RPM3600 RPM
Maximum torque380 N*m
Number of cylinders4
Valves per cylinder4
Cylinder bore96.0 mm
Injection typeCommon rail (diesel)
Engine typeDiesel
Timing beltDOHC
Engine placementFront, longitudinal
Cylinder layoutinline
Boost typeTurbocharged
Engine modelzd30ddti
Engine codeZD30DDTI
Bodywork
Front track width1555 mm
Back track width1575 mm
Front track1605 mm
Rear track1625 mm
Max trunk capacity1652 l
Width1840 mm
Height1840 mm
Curb weight2130 kg
Ground clearance215 mm
Clearance220 mm
Wheel size235/80 R16, 265/70 R16
Wheelbase2400 mm
Full weight2405 kg
Min trunk capacity308 l
Length4475 mm
Number of seater5
Body typeCrossover
Pitch Circle DiameterDIA110 6x139.7 mm
Gearbox and handling
Turning circle12.2 m
Number of gear4
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Mixed driving fuel consumption per 100 km10.8 l
City driving fuel consumption per 100 km14.3 l
Acceleration (0-100 km/h)14.8 s
Max speed160 km/h
Highway driving fuel consumption per 100 km8.8 l
Fuel tank capacity95 l
Fueldiesel
Cruising rangefrom 680 to 1 060 km
Suspension and brakes
Front suspensionDependent, spring
Front brakesDisc
Rear brakesDisc
Back suspensionSemi-dependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
