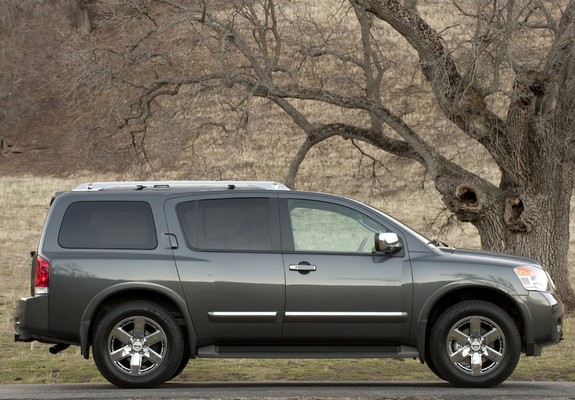

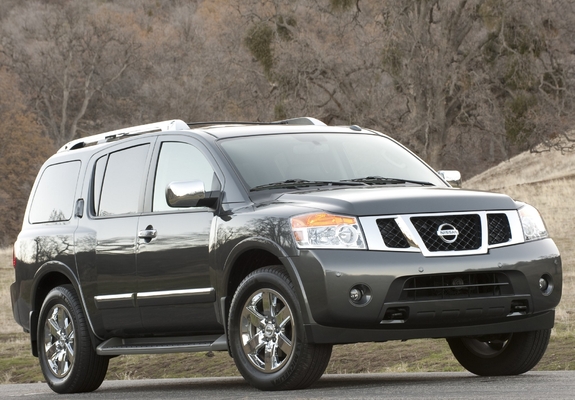

Nissan Armada 2007–2015

1 generation (TA60) [restyling]

General information

Number of doors5

Car classJ

CountryJapan

Steering wheel positionLeft

At a glance

Engine5552 cm3 Gasoline

Power312 hp

GearboxAutomatic

Origin

Japan

Trim

5.6 AT (317 PS)5.6 AT 4WD (317 hp)

Specifications

Engine

Max power (kW)233 kW

Engine power312 hp

Engine power317 PS

Turnover of maximum torque3600 RPM

Maximum torque385 N*m

Valves per cylinder4

Max power at RPM4900 RPM

Capacity5552 cm3

Number of cylinders8

Stroke cycle92.0 mm

Compression ratio9.8

Cylinder bore98.0 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, longitudinal

Engine typeGasoline

Boost typenone

Engine codeVK56DE

Cylinder layoutV-type

Bodywork

Front track1715 mm

Rear track1715 mm

Front track width1715 mm

Back track width1715 mm

Height1913 mm

Width2002 mm

Curb weight2480 kg

Clearance249 mm

Wheel size265/70 R18, 275/60 R20

Max trunk capacity2750 l

Wheelbase3130 mm

Full weight3175 kg

Length5255 mm

Min trunk capacity566 l

Number of seater7

Body typeCrossover

Pitch Circle DiameterDIA77.8 6x139.7 mm

Gearbox and handling

Number of gear5

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel tank capacity106 l

Highway driving fuel consumption per 100 km13.1 l

City driving fuel consumption per 100 km18.1 l

Max speed185 km/h

Acceleration (0-100 km/h)7.1 s

Fuel92

Cruising rangefrom 590 to 850 km

Suspension and brakes

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
