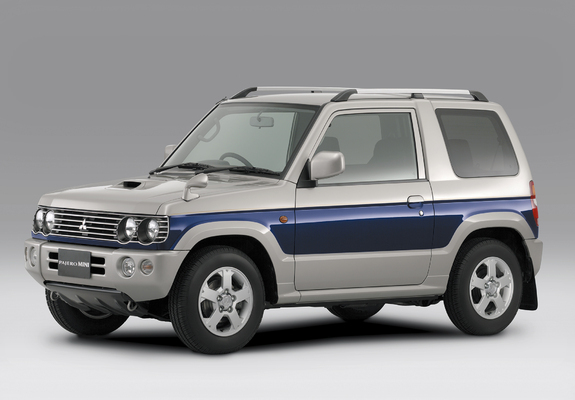

Mitsubishi Pajero Mini 1998–2012

2nd Generation (H53/58A)

General information

Number of doors3

Car classJ

CountryJapan

Steering wheel positionRight

At a glance

Engine659 cm3 Gasoline

Power51 hp

GearboxAutomatic

Origin

Japan

Series

Duke SUV 3-doors SUV 3-doors

Trim

0.7 AT 2WD (52 hp)0.7 AT 4WD (52 PS)0.7 MT 2WD (52 PS)0.7 MT 4WD (52 hp)0.7 Turbo AT 2WD (64 PS)0.7 Turbo AT 4WD (64 hp)0.7 Turbo MT 2WD (64 PS)0.7 Turbo MT 4WD (64 hp)

Specifications

Engine

Compression ratio10

Max power (kW)38 kW

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4000 RPM

Engine model4A30

Engine code4A30 SOHC i

Engine power51 hp

Engine power52 PS

Maximum torque58 N*m

Stroke cycle58.3 mm

Cylinder bore60 mm

Capacity659 cm3

Max power at RPM7000 RPM

Injection typedistributed injection (multipoint)

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltOHC

Bodywork

Front track width1190 mm

Back track width1200 mm

Front track1270 mm

Rear track1270 mm

Width1395 mm

Height1630 mm

Wheel size175/80 R15

Clearance190 mm

Ground clearance195 mm

Wheelbase2200 mm

Length3295 mm

Number of seater4

Curb weight960 kg

Body typeCrossover

Pitch Circle DiameterDIA67.1 5x114.3 mm

Gearbox and handling

Number of gear3

Turning circle9.6 m

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Max speed122 km/h

Acceleration (0-100 km/h)22.9 s

Fuel tank capacity35 l

Highway driving fuel consumption per 100 km6.0 l

Mixed driving fuel consumption per 100 km6.9 l

City driving fuel consumption per 100 km8.0 l

Fuel95

Suspension and brakes

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
