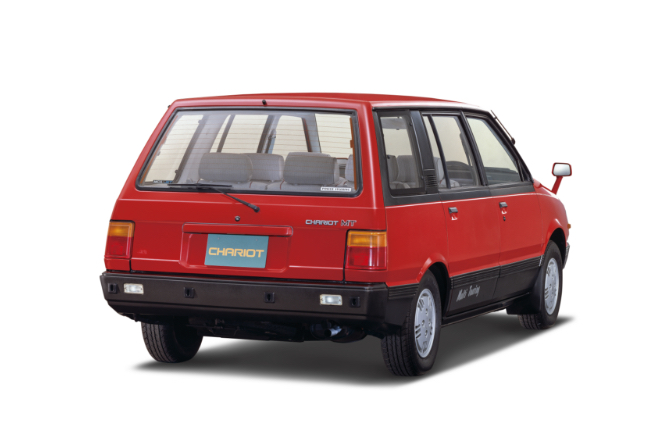

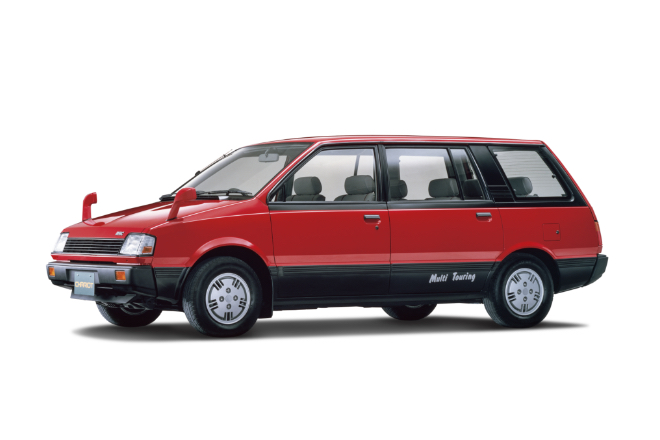

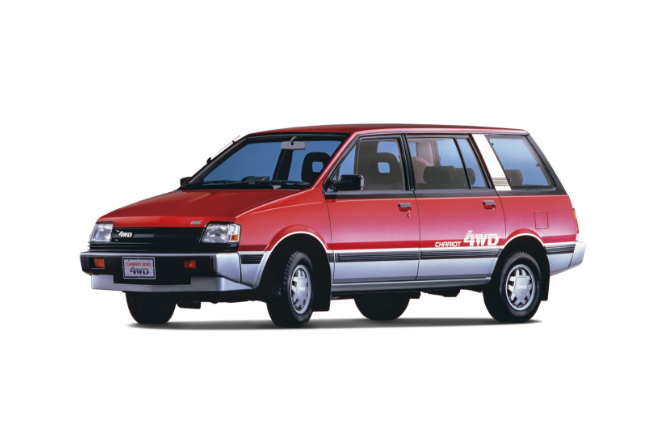

Mitsubishi Chariot 1983–1991

1 generation (D02W / D03W / D04W / D05W / D08W / D09W)

At a glance

Engine1597 cm3 Gasoline

Power92 hp

GearboxManual

OriginN/A

Trim

1.6 MT (92 hp)1.8 AT (105 hp)1.8 AT (85 hp)1.8 MT (105 hp)1.8 MT (85 hp)1.8 TD MT (76 hp)1.8 TD MT (80 hp)1.8 Turbo AT (135 hp)1.8 Turbo MT (135 hp)2.0 4MT AWD (110 hp)2.0 5MT AWD (110 hp)2.0 MT AWD (100 hp)2.0 MT AWD (94 hp)

Specifications

Engine

Maximum torque133 N*m

Capacity1597 cm3

Valves per cylinder2

Number of cylinders4

Max power (kW)69 kW

Cylinder bore76.9 mm

Stroke cycle86 mm

Engine power92 hp

Engine power94 PS

Injection typecarburetor

Engine typeGasoline

Cylinder layoutInline

Turnover of maximum torqueto 3 500 RPM

Max power at RPMto 5 500 RPM

Bodywork

Rear track1375 mm

Front track1410 mm

Ground clearance150 mm

Height1525 mm

Width1640 mm

Wheelbase2625 mm

Length4295 mm

Number of seater7

Curb weight980 kg

Body typeMinivan

Gearbox and handling

Turning circle10.6 m

Number of gear5

Drive wheelsFront wheel drive

Gearbox typeManual

Operating characteristics

Fuel tank capacity50 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, McPherson Struts

Back suspensionTrailing arms, Helical springs

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
