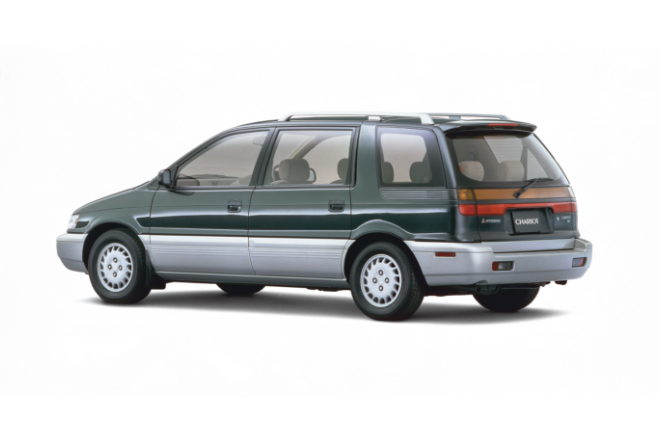

Mitsubishi Chariot 1991–1994

2 generation (N31W / N33W / N34W / N38W / N41W / N43W / N44W / N48W)
General information
Number of doors5
CountryJapan
Steering wheel positionLeft/Right
Car classM
At a glance
Engine1997 cm3 Gasoline
Power133 hp
GearboxAutomatic
OriginJapan
Trim
2.0 AT (105 hp)2.0 AT (135 PS)2.0 AT AWD (105 hp)2.0 AT AWD (135 hp)2.0 AT AWD Resot runner (220 PS)2.0 MT (105 hp)2.0 MT (135 PS)2.0 MT AWD (105 hp)2.0 MT AWD (135 hp)2.0 MT AWD Resot runner (230 PS)2.0 TD AT (88 PS)2.0 TD AT (94 hp)2.0 TD AT AWD (88 hp)2.0 TD AT AWD (94 PS)2.0 TD MT (88 PS)2.0 TD MT (94 PS)2.0 TD MT AWD (88 hp)2.0 TD MT AWD (94 hp)2.4 AT (145 PS)2.4 AT (146 hp)2.4 AT AWD (146 hp)2.4 MT 4WD (145 PS)

Specifications

Engine
Compression ratio10.3
Engine power133 hp
Engine power135 PS
Maximum torque176 N*m
Capacity1997 cm3
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4500 RPM
Engine code4G63
Engine model4G63
Max power at RPM5750 RPM
Cylinder bore85 mm
Stroke cycle87 mm
Max power (kW)99 kW
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Min trunk capacity128 l
Curb weight1310 kg
Max trunk capacity1375 l
Front track width1455 mm
Front track1460 mm
Rear track1460 mm
Back track width1460 mm
Height1595 mm
Ground clearance160 mm
Clearance160 mm
Width1695 mm
Wheel size185/70 R14
Wheelbase2720 mm
Length4515 mm
Number of seater7
Pitch Circle DiameterDIA67.1 4x114.3 mm
Body typeMinivan
Gearbox and handling
Turning circle11 m
Number of gear4
Gearbox typeAutomatic
Drive wheelsFront wheel drive
Operating characteristics
Highway driving fuel consumption per 100 km10.0 l
Mixed driving fuel consumption per 100 km10.6 l
City driving fuel consumption per 100 km12.3 l
Fuel tank capacity60 l
Fuel95
Suspension and brakes
Rear brakesdrum
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
