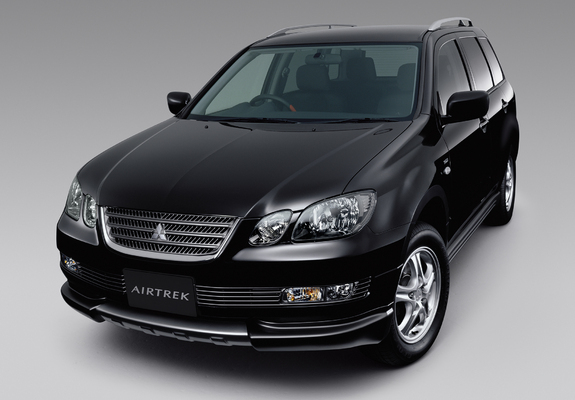

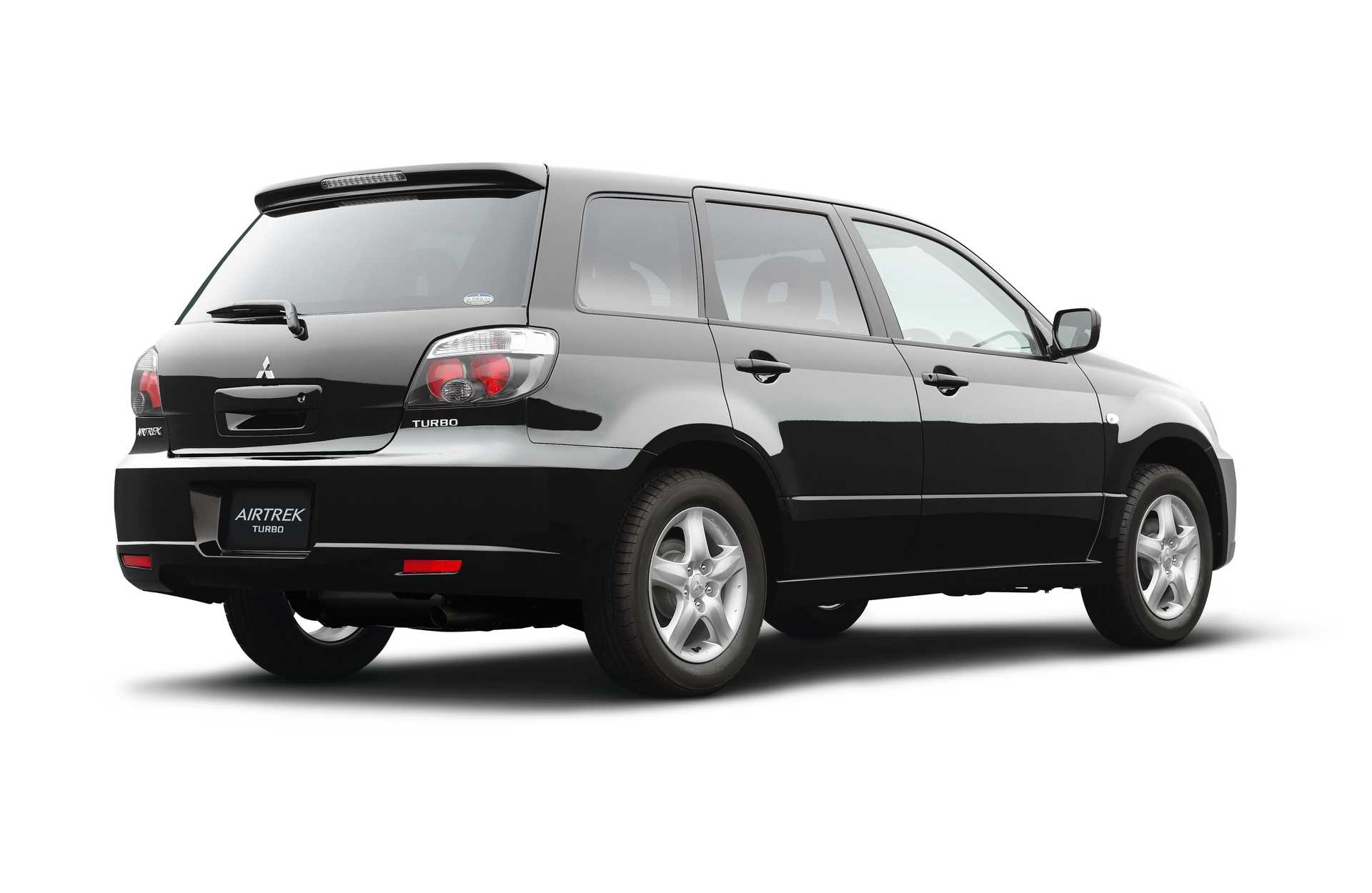

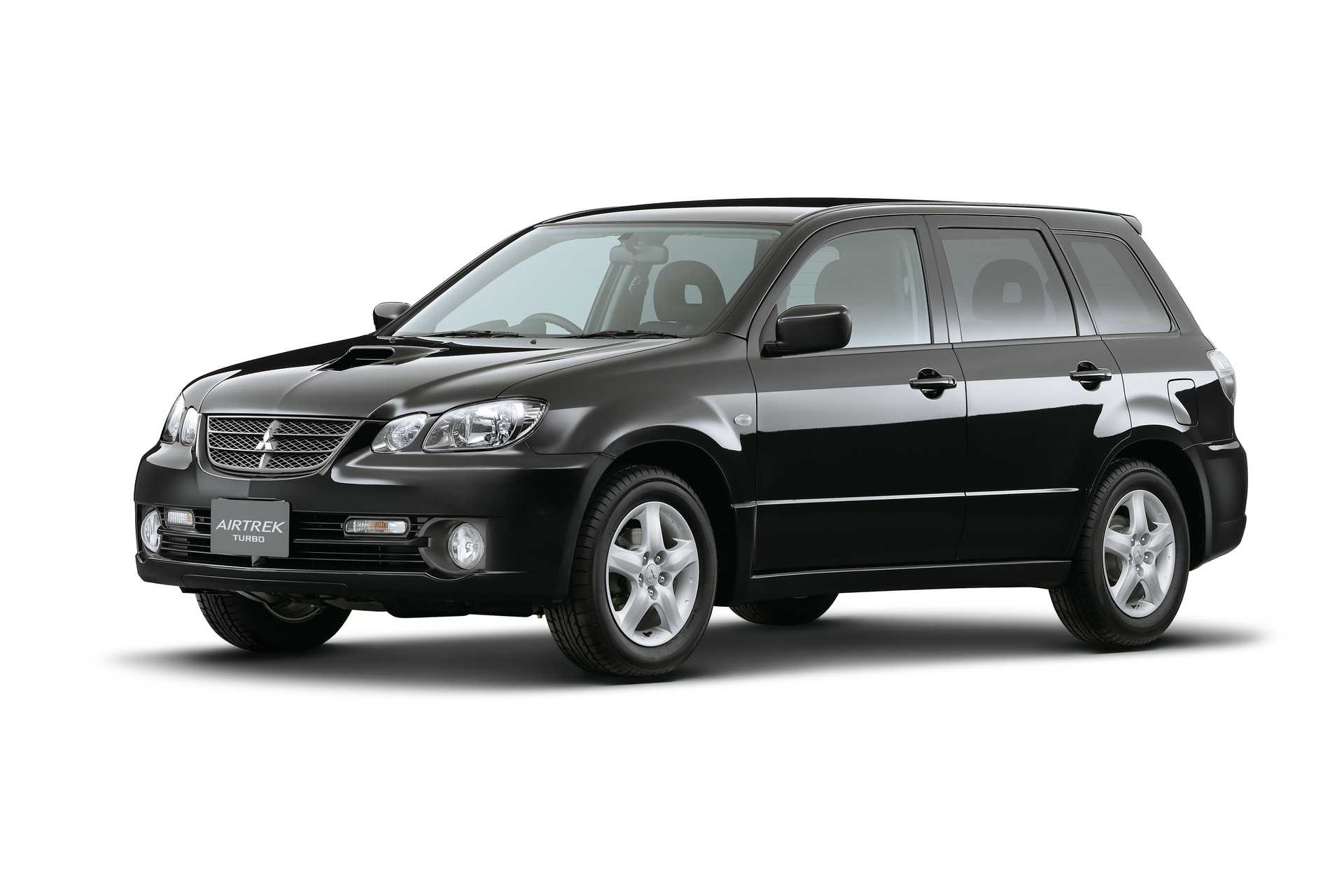

Mitsubishi Airtrek 2001–2004

1 generation (CU2W / CU4W)

General information

Number of doors5

Car classD

CountryJapan

Steering wheel positionRight

At a glance

Engine1997 cm3 Gasoline

Power125 hp

GearboxAutomatic

Origin

Japan

Trim

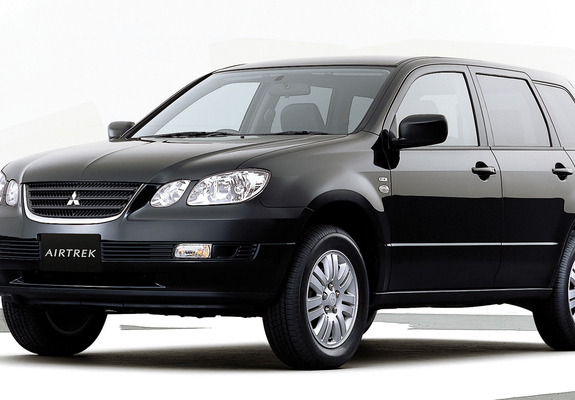

2.0 AT (126 PS)2.0 AT 4WD (126 hp)2.0 Turbo R AT 4WD (240 hp)2.4 GDI AT (139 hp)2.4 GDI AT 4WD (139 PS)

Specifications

Engine

Engine power125 hp

Engine power126 PS

Maximum torque173 N*m

Capacity1997 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4500 RPM

Engine code4G63

Engine model4G63

Max power at RPM5500 RPM

Cylinder bore85 mm

Stroke cycle88 mm

Max power (kW)93 kW

Compression ratio9.5

Injection typedistributed injection (multipoint)

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltOHC

Bodywork

Curb weight1330 kg

Front track1495 mm

Rear track1495 mm

Front track width1495 mm

Back track width1495 mm

Height1550 mm

Full weight1605 kg

Width1750 mm

Ground clearance195 mm

Clearance195 mm

Wheel size215/60 R16

Wheelbase2625 mm

Length4465 mm

Number of seater5

Body typeCrossover

Pitch Circle DiameterDIA67.1 5x114.3 mm

Gearbox and handling

Turning circle11.4 m

Number of gear4

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Highway driving fuel consumption per 100 km10.4 l

Mixed driving fuel consumption per 100 km10.8 l

City driving fuel consumption per 100 km11.4 l

Acceleration (0-100 km/h)13.6 s

Max speed166 km/h

Fuel tank capacity60 l

Fuel92

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
