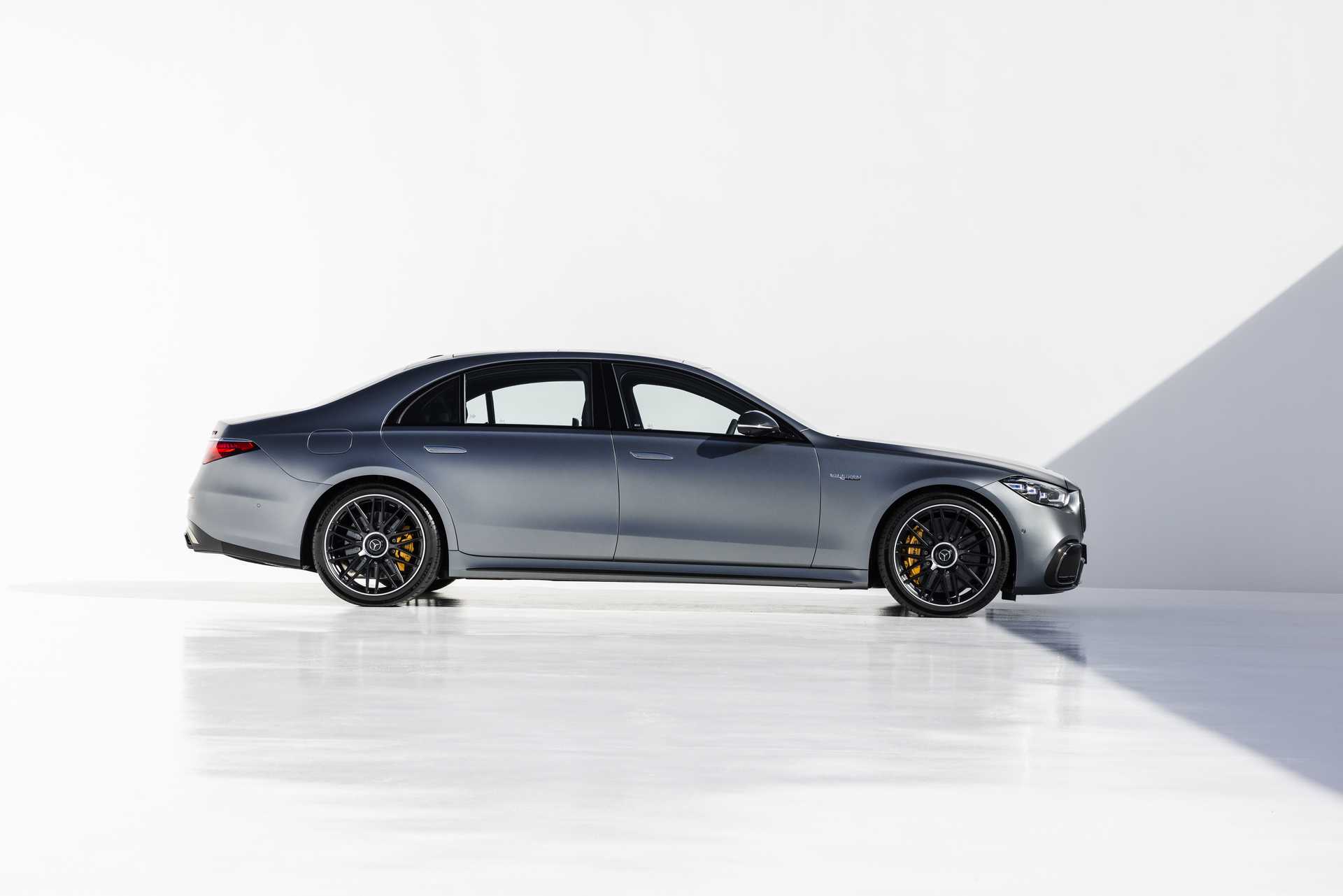

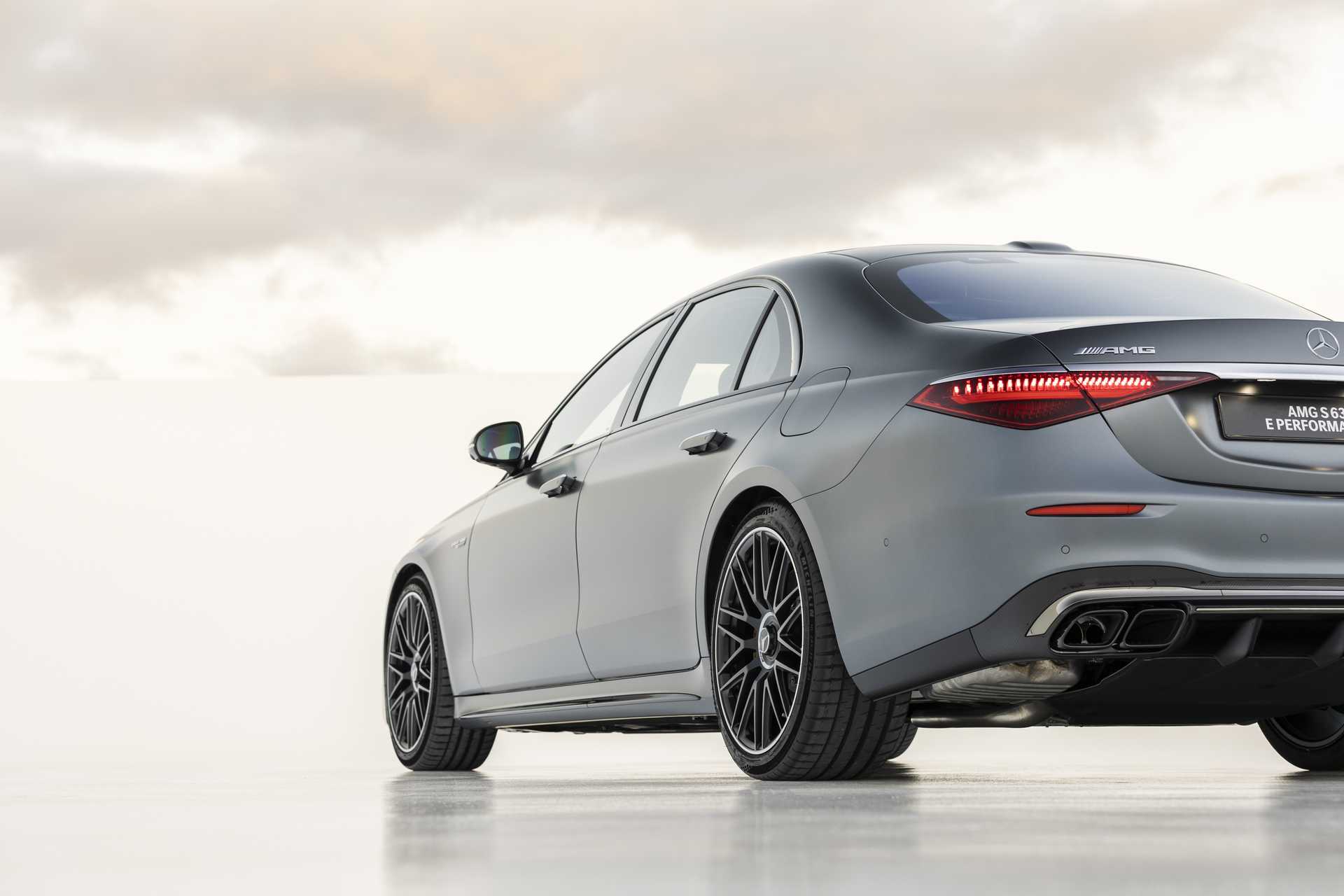

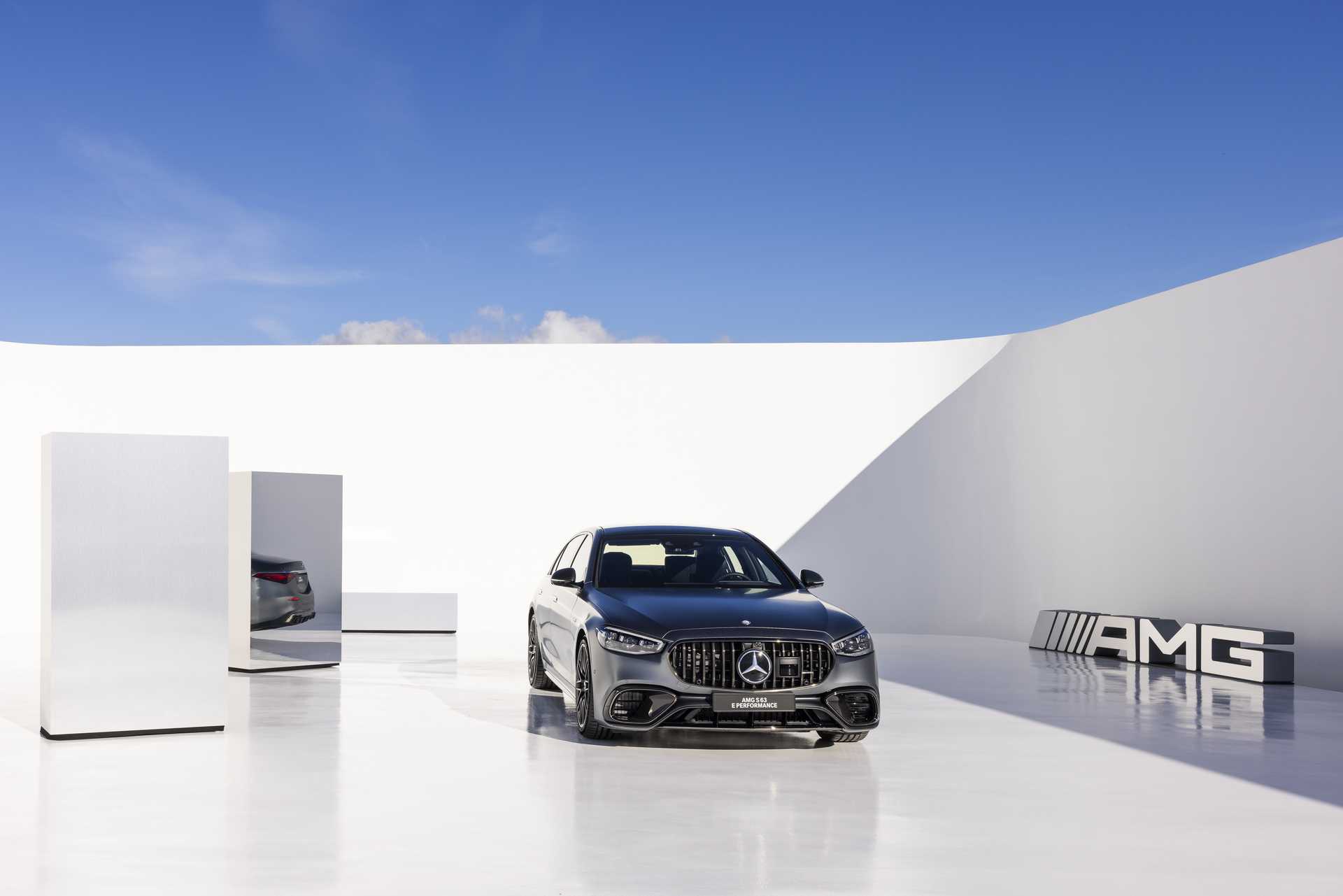

Mercedes-Benz S-Class AMG 2021–2026
4 generation (W223)General information
Number of doors4
Car classF
CountryGermany
Steering wheel positionLeft
At a glance
Engine3982 cm3 Hybrid
Power791 hp
GearboxAutomatic
Origin
Germany
GermanySpecifications
Engine
Maximum torque1430 N*m
Capacity3982 cm3
Valves per cylinder4
Turnover of maximum torque4500 RPM
Max power (kW)590 kW
Max power at RPM6500 RPM
Engine power791 hp
Number of cylinders8
Engine power802 PS
Cylinder bore83.0 mm
Compression ratio8.6
Stroke cycle92.0 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, longitudinal
Engine typeHybrid
Engine modelM 177 DE 40 AL
Engine codeM177 DE40 AL
Boost typeTurbocharged
Cylinder layoutV-type
Flow calculation methodWLTP
Bodywork
Height1515 mm
Back track width1642 mm
Front track width1671 mm
Width1921 mm
Wheel size255/45/R20, 285/40/R20
Curb weight2595 kg
Min trunk capacity305 l
Full weight3145 kg
Wheelbase3216 mm
Number of seater4, 5
Length5336 mm
Body typeSedan
Gearbox and handling
Number of gear9
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
CO2 emissions104 g/km
Max speed250 km/h
Acceleration (0-100 km/h)3.3 s
Mixed driving fuel consumption per 100 km4.6 l
Fuel tank capacity76 l
Fuel98
Emission standardsEuro 6
Suspension and brakes
Front suspensionIndependent, pneumatic element
Back suspensionIndependent, pneumatic element
Front brakesventilated disc
Rear brakesventilated disc
Accumulator battery
Battery capacity13.1 KW⋅h
Consumption22.2 KW⋅h/100 km
Electric power reserve31 km
Maximum charging power3.7 kW
Battery typeLithium-ion (Li-ion)
Charging connector typeType 2
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
