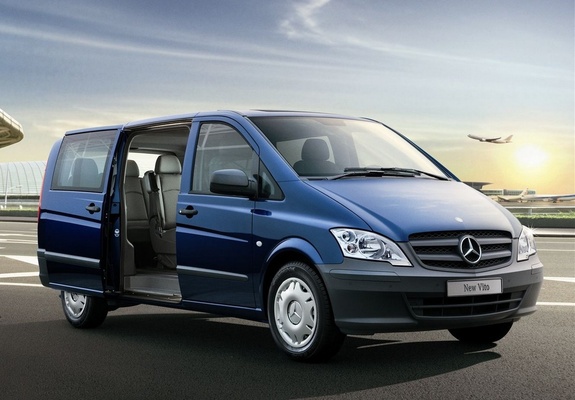

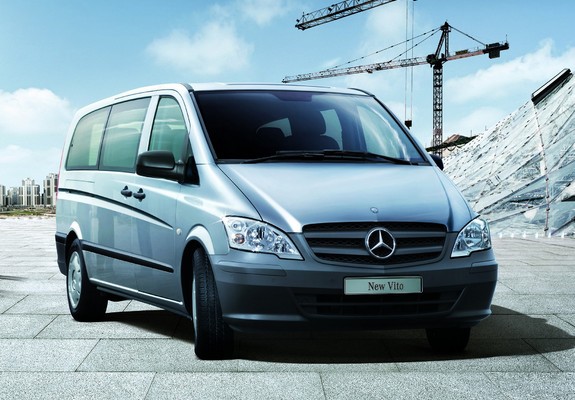

Mercedes-Benz Vito 2003–2010

2 generation (W639)
General information
Number of doors4
CountryGermany
Steering wheel positionLeft
Car classM
At a glance
Engine2148 cm3 Diesel
Power109 hp
GearboxAutomatic
OriginGermany
Series
Minivan 4-doorsMinivan L2Minivan L3Van
Trim
109 CDI L1 2.2d MT (88 hp)109 CDI L1 2.2d MT (95 hp)109 CDI MT L1H1 (88 hp)109 CDI MT L1H1 (95 hp)109 CDI MT L2H1 (88 hp)109 CDI MT L2H1 (95 hp)109 CDI MT L3H1 (88 hp)109 CDI MT L3H1 (95 hp)111 CDI 4MATIC AT L1H1 (109 hp)111 CDI 4MATIC AT L2H1 (109 hp)111 CDI 4MATIC AT L3H1 (109 hp)111 CDI AT L1H1 (109 hp)111 CDI AT L1H1 (115 hp)111 CDI AT L2H1 (109 hp)111 CDI AT L2H1 (115 hp)111 CDI AT L3H1 (109 hp)111 CDI AT L3H1 (115 hp)111 CDI L1 2.2d AT (109 hp)111 CDI L1 2.2d AT (116 PS)111 CDI L1 2.2d MT (109 hp)111 CDI L1 2.2d MT (116 PS)111 CDI MT L1H1 (109 hp)111 CDI MT L1H1 (115 hp)111 CDI MT L2H1 (109 hp)111 CDI MT L2H1 (115 hp)111 CDI MT L3H1 (109 hp)111 CDI MT L3H1 (115 hp)115 CDI 4MATIC AT L1H1 (150 hp)115 CDI 4MATIC AT L2H1 (150 hp)115 CDI 4MATIC AT L3H1 (150 hp)115 CDI AT L1H1 (150 hp)115 CDI AT L2H1 (150 hp)115 CDI AT L3H1 (150 hp)115 CDI L1 2.2d AT (150 PS) 4WD115 CDI L1 2.2d MT (150 hp)115 CDI MT L1H1 (150 hp)115 CDI MT L2H1 (150 hp)115 CDI MT L3H1 (150 hp)119 AT L1H1 (190 hp)119 AT L2H1 (190 hp)119 AT L3H1 (190 hp)119 L1 3.2 AT (190 hp)120 CDI AT L1H1 (204 hp)120 CDI AT L2H1 (204 hp)120 CDI AT L3H1 (204 hp)120 CDI L1 3.0d AT (204 hp)122 AT L1H1 (217 hp)122 AT L2H1 (217 hp)122 AT L3H1 (217 hp)122 L1 3.2 AT (218 hp)123 AT L1H1 (231 hp)123 AT L2H1 (231 hp)123 AT L3H1 (231 hp)123 L1 3.7 AT (231 PS)126 AT L1H1 (258 hp)126 AT L2H1 (258 hp)126 AT L3H1 (258 hp)126 L1 3.5 AT (258 hp)

Specifications

Engine
Engine power109 hp
Turnover of maximum torque1600 RPM
Compression ratio17.5
Capacity2148 cm3
Maximum torque270 N*m
Max power at RPM3800 RPM
Number of cylinders4
Valves per cylinder4
Max power (kW)68 kW
Cylinder bore88 mm
Stroke cycle88.3 mm
Engine power92 PS
Injection typeCommon rail (diesel)
Engine typeDiesel
Timing beltDOHC
Engine placementFront, longitudinal
Cylinder layoutinline
Engine codeOM646.982 red
Engine modelOM646.982 red
Boost typeTurbocharged
Bodywork
Min trunk capacity1210 l
Back track width1277 mm
Front track width1630 mm
Width1901 mm
Height1903 mm
Clearance195 mm
Wheel size195/65 R16, 205/65 R16, 225/55 R17, 225/60 R16, 245/45 R18
Curb weight2040 kg
Full weight2770 kg
Max trunk capacity3000 l
Wheelbase3430 mm
Length5223 mm
Number of seater9
Pitch Circle DiameterDIA66.5 5x112 mm
Body typeMinivan
Gearbox and handling
Number of gear5
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Mixed driving fuel consumption per 100 km10.2 l
City driving fuel consumption per 100 km11.9 l
Max speed153 km/h
Acceleration (0-100 km/h)17.3 s
Fuel tank capacity75 l
Highway driving fuel consumption per 100 km9.3 l
Fueldiesel
Emission standardsEuro 4
Suspension and brakes
Front brakesDisc
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
