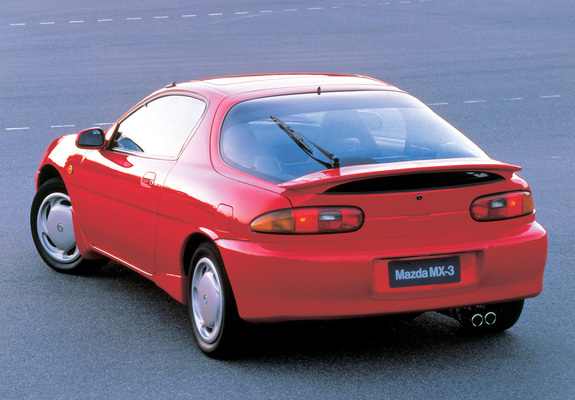

Mazda MX-3 1991–1998

1 generation (EC)

General information

Number of doors2

CountryJapan

Steering wheel positionLeft/Right

Car classS

At a glance

Engine1597 cm3 Gasoline

Power106 hp

GearboxAutomatic

Origin

Japan

Trim

1.6 AT (107 PS)1.6 MT (107 PS)1.6 MT (110 hp)1.6 MT (90 PS)1.8 MT (132 hp)1.8 MT (136 hp)1.9 AT (133 PS)1.9 MT (129 PS)1.9 MT (136 PS)

Specifications

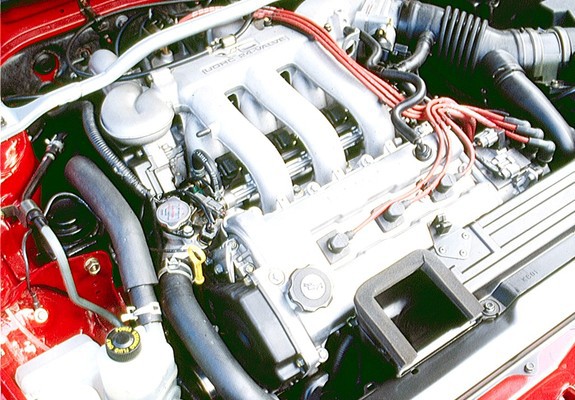

Engine

Engine power106 hp

Engine power107 PS

Maximum torque134 N*m

Capacity1597 cm3

Turnover of maximum torque3600 RPM

Number of cylinders4

Valves per cylinder4

Max power at RPM6200 RPM

Cylinder bore78 mm

Max power (kW)79 kW

Stroke cycle83.6 mm

Compression ratio9.4

Engine codeB6D

Engine modelB6D

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1090 kg

Full weight1230 kg

Clearance130 mm

Height1310 mm

Front track width1460 mm

Back track width1465 mm

Width1695 mm

Wheel size185/65 R14

Wheelbase2455 mm

Min trunk capacity289 l

Number of seater4

Length4220 mm

Body typeCoupe

Pitch Circle DiameterDIA54.1 4x100 mm

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

City driving fuel consumption per 100 km10.1 l

Acceleration (0-100 km/h)14.0 s

Max speed168 km/h

Fuel tank capacity50 l

Highway driving fuel consumption per 100 km6.0 l

Mixed driving fuel consumption per 100 km7.9 l

Fuel95

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
